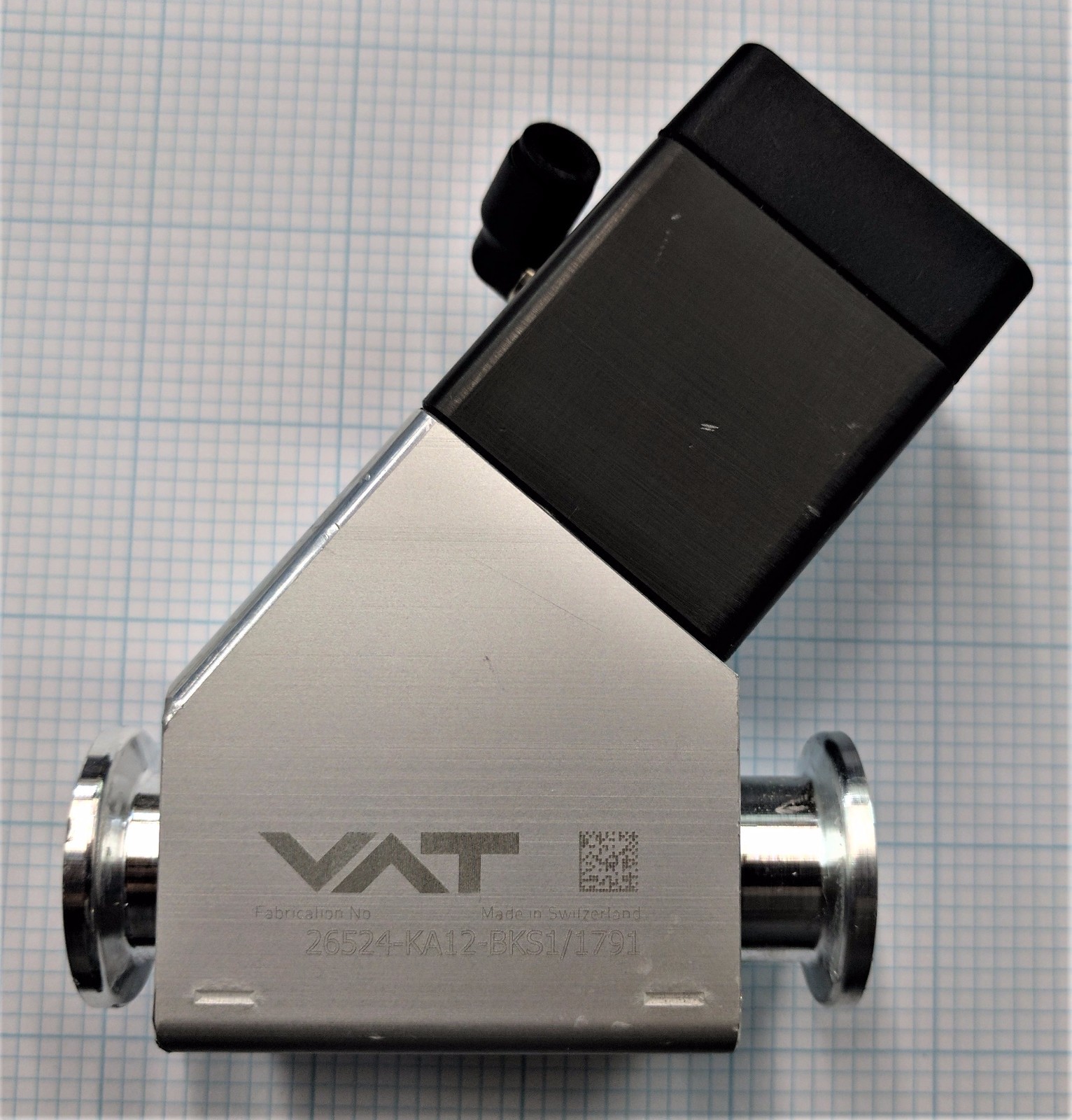

new VAT valves series 265 KF16 vacuum normally open valve qty available mks AMAT:
$30.00
VAT26524-KA21 inline KF16 valve. NORMALLY OPEN Many available. I will offer a discount at qty 5+ units. These valves came from a facility that closed down before it was ever run. NO process gas ever touched these units, however they all have handling marks to some degree. See my other listing if you need a position indicator on the valve.
Inside diameter (ID) in mm (inch)16 (5/8")FlangeISO-KF (compatible with ISO 2861 T1)Body materialAluminumActuatorPneumatic actuator with position indicator without solenoid valve single acting closing springSolenoidNoPosition indicatorYesPressure min.1•10-8mbarPressure max.5.0 bar (abs)FeedthroughBellowsSealhead DescriptionFKM (VITON®)Sealing materialsFKM (VITON®)Molecular flow conductance ls-15Max. differential pressure closed position in bar5Max. pressure on seat side during opening in bar1Compressed air pressure max. in bar8Compressed air pressure min. in bar4Volume of air cylinder in l0.004Closing or opening time in sec.0.1Valve body temperature max. in °C150Actuator temperature max. in °C120Position Indicator temp. max. in °C80Weight in kg / lbs0.5 / 1.1
new VAT valves series 265 KF16 vacuum normally open valve qty available mks AMAT
$30.00
$500.00
VAT NEW VERSION 10”, ISO-F PENDULUM VALVE, 16248-PA41-0001-0039
$1995.00
