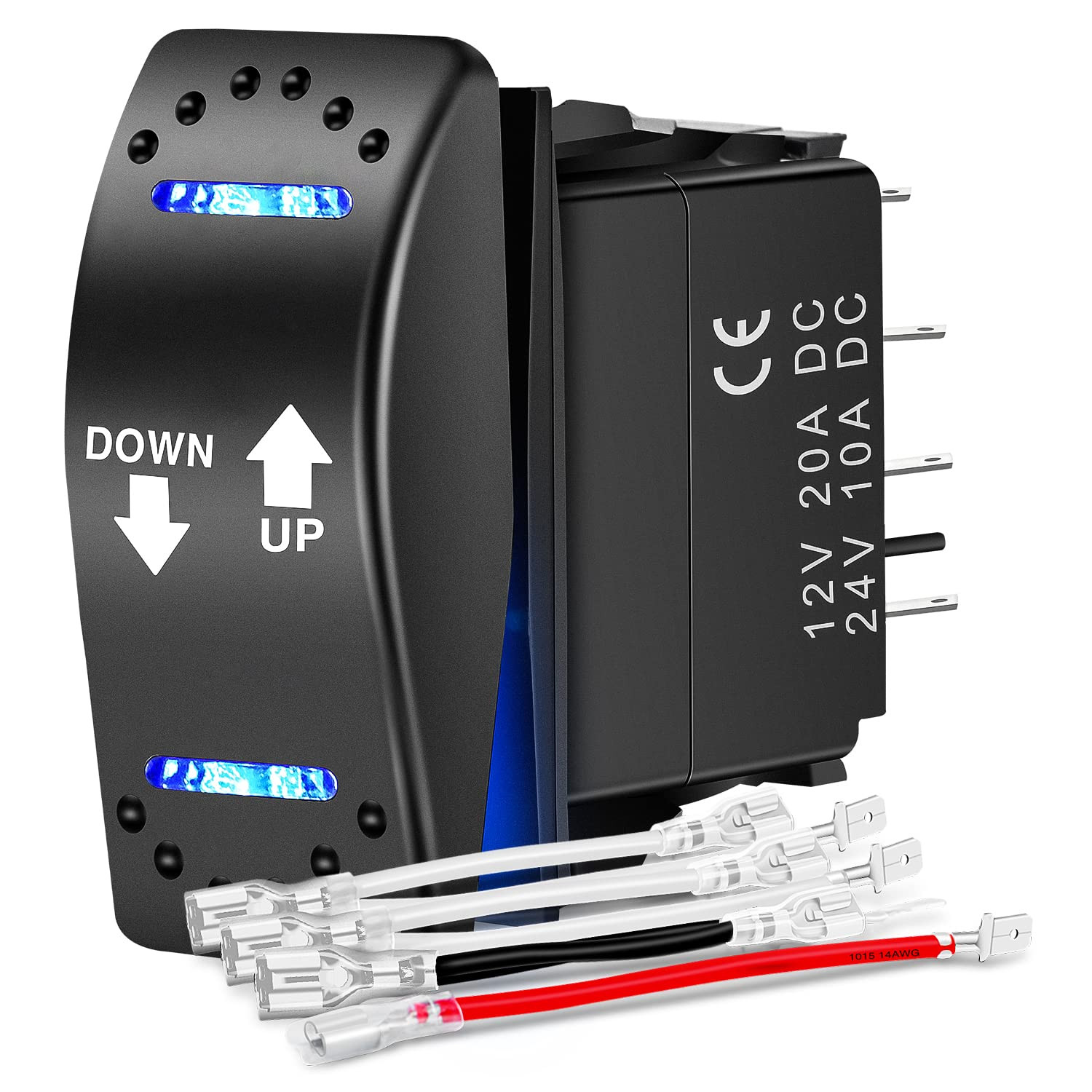

down up Polarity Reverse Switch DPDT 20A 7PIN Momentary Rocker On/Off/On 12V 24V:
$11.94

down up Polarity Reverse Switch DPDT 20A 7PIN Momentary Rocker On/Off/On 12V 24V Toggle Jumper Wires for Control Motor Hoist, Crane, Linear ActuatorDescription

Momentary Switch: Heavy duty DPDT reverse polarity switch resetting automatically (returns to off) when released. Controls the up/down, clockwise/counterclockwise motion of DC loads (e.g. motors, hoists, cranes, linear actuators etc.).
Dual Operation: This momentary electrical system switch is used for jogging or inching operations. A DPDT switch is equivalent to two SPDT switches. It routes two separate circuits. Connecting each of two inputs to one of two outputs. The position of the switch determines the number of ways in which two contact can be routed. Always make sure you are using a switch and wire sufficient to handle the load you are carrying. In higher draw applications, a relay may be needed.
Wide range of application: Universal fit for all cars, RVs, SUVs, ATVs, UTVs, Cans, Buses, Marine boats, Yachts, Trailers, Jeeps, Prerunners, Campers, Caravans etc; Mainly used to control Winch, Pump, Horn, Reclining Media Room Seats, Auto Bilge Pump or led light bar, led work lights, fog lamps, headlights, taillights and auxiliary lamps, etc.
Sturdy and durable: made of high-quality plastic and well-conductive pins; ensure long lasting durability, highly optimized for general use and will give you a pleasant experience.
Package Includes: A 7 PIN switch, jumper wires set and a wiring diagram.

Nilight Momentary DPDT Rocker Switch

Backlit: Blue

Input voltage: 12V/24V DC

Amp rating for each switch: 12V DC/20AMP; 24V DC/10AMP

Switch Terminal: 7 PIN

Installation:Pre-wired

Nilight rocker switch Mainly used together with wiring harness to control Winch, Pump, Horn, Reclining Media Room Seats, Auto Bilge Pump, or led work lights, headlights, taillights, etc.

The product fits most cars, SUVs, ATVs, UTVs, 4X4, motorcycles, trucks, Wranglers, boats, yachts, and other off-road vehicles.

Note:

Amp rating for the switch: 12V DC/20AMP; 24V DC/10AMP.

Please wire a relay if you are going to hook an accessory that is over 20AMP at a 12VDC power source. Or the switch will be burnt out due to its high current.

Warranty Description 2 Years Warranty Current Rating 20 Amps Number of Items 1 Item Dimensions 1 x 1 x 1 inches Upper Temperature Rating 1 Degrees Celsius Material Type Plastic Terminal Spade Operating Voltage 24 Volts Item Type Name Rocker Switch Specification Met CE Number of Positions 2 Controller Type Wired Controller Unit Count 1.0 Count Connectivity Protocol X-10 Lower Temperature Rating 1 Degrees Celsius Switch Type Rocker Switch, Toggle Switch Material Plastic Circuit Type 2-way Item dimensions L x W x H 1 x 1 x 1 inches Control Method Touch Connector Type Plug In Model 90251B-A Mounting Type Panel Mount Color Momentary Down Up Switch Wattage 240 watts Global Trade Identification Number 00840323901574 Operation Mode OFF-NONE-ON Actuator Type Rocker Contact Type Normally Closed Included Components 1PC Rocker Switch Contact Material Silver
