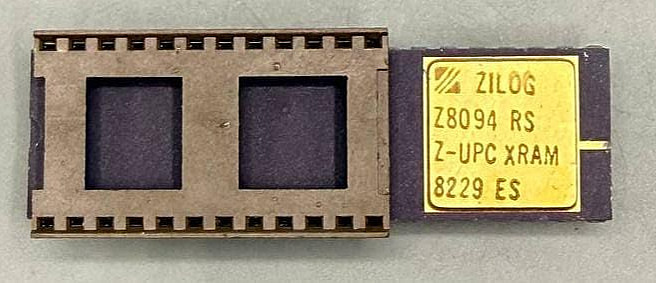

Zilog Z8094RS Z8 MCU Piggyback Engineering Sample ES Gold Lid Ceramic 40-Pin IC:
$45.47
Rare Zilog Z8094 RS Z-UPC XRAM engineering sample peripheral controller from 1982.
- Ceramic 40-pin DIP architecture with gold top lid
- Designed for Z8/Z8000-era system expansion and I/O control
- Supports external memory interface (XRAM architecture class)
- TTL-compatible NMOS technology
- High collector value for vintage computing enthusiasts
Ideal for collectors of early microprocessor systems, semiconductor museums, retro computing restoration displays.
New Old Stock (NOS). Rare engineering sample ceramic modules in excellent preserved condition. Ceramic housings and gold markings remain sharp and legible. Pins are straight, clean, and free of soldering or socket wear. Expect light cosmetic oxidation or age-related patina due to long-term storage. Please review all photos carefully as they are part of the item description.
Secure shipping with protective packaging included.
Orders are usually shipped the next business day.
If you have any questions, feel free to ask.
