WindyNation 12V Linear Actuator + UP Down Switch + Mounting Brackets 225 lb Lift:
$67.99

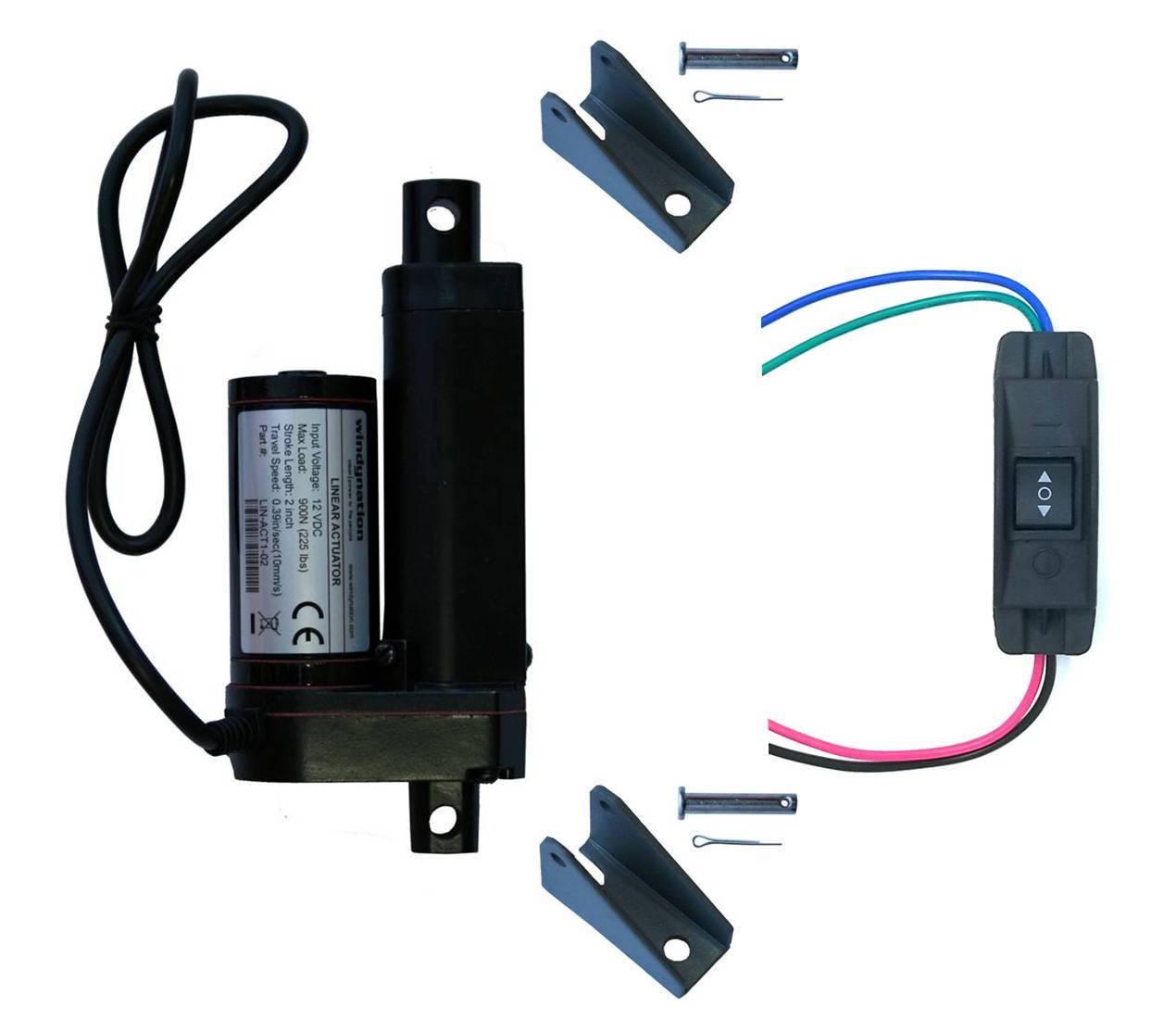

WindyNation Linear Actuator + Up/Down Switch + Linear Actuator Mounting brackets
Use drop-down tab above to select linear actuator stroke length. Options ranged from 2\" to 30\".
There are two up/down switch types available in this listing, momentary and maintained. See below for a description of each.
Momentary Switch:The linear actuator will only move when the up or down switch is being actively pressed with your finger. The moment the switch is not being pressed with your finger, the linear actuator will stop. This is referred to as a momentary switch.
Maintained Switch:When the maintained switch is pressed with your finger (up or down), it will continue to supply power to the linear actuator until you manually turn it off. This is similar to a light bulb switch in that once you turn on the light bulb switch, the light bulb remains on until you manually turn the switch off. Note that the linear actuator does have internal limit switches so the linear actuator will automatically turn off when the limit switches are activated at the end of its travel length.
What is included:
(1) One linear actuator (select stroke length using drop-down tab)(2) One up/down switch to control the up/down motion of the linear actuator (select maintained or momentary switch type using drop-down tab)(3) One pair of linear actuator mounting brackets
Linear Actuator Product Information:

Specifications: power = 12 Volts DC, max. current draw = 2.5 amps, max. load = 225 pounds, travel speed = 0.39\"/sec
Internal limit switches
See photo gallery for dimensional drawing and additional technical information

DPDT Switch Product Information:

Specifications: max. 25-amp, 250V.Dimensions: 4.19\" x 1.25\", 3 ounces.
DPDT reverse switch controls the up/down, clockwise/counterclockwise motion of DC loads (e.g motors, hoists, cranes, linear actuators, etc.)
Enclosed housing for durability the pre-wired with 6 inches of flexible 14 AWG copper wire.
Maintained and momentary switch types are both available

Mounting Brackets Production information:
