Waveshare 240x240 1.3 inch IPS LCD display HAT for Raspberry Pi SPI interface:
$17.04

This sale is for 1.3inch LCD HAT 1.3inch IPS LCD display HAT for Raspberry Pi, 240x240 pixels, SPI interfaceOverview

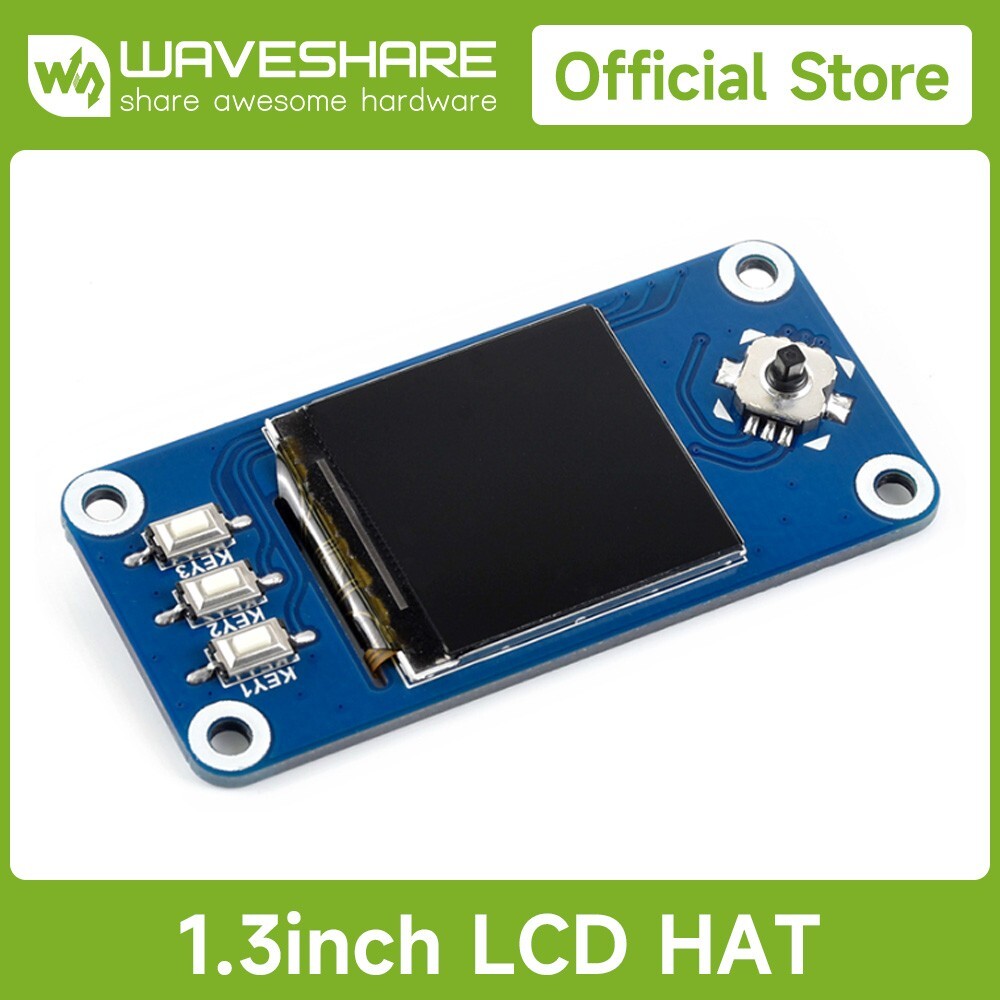

This is an IPS LCD display HAT for Raspberry Pi, 1.3inch diagonal, 240x240 pixels, with embedded controller, communicating via SPI interface.

Trying to add a control interface for your Pi? This compact display would be the ideal choice.

Features

Standard Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
IPS screen, wide viewing angle, better display
High definition in small size
1x joystick, 3x pushbuttons, handy and useful
Comes with development resources and manual (examples for Raspberry
Driver: ST7789
Interface: SPI
Display color: RGB, 65K color
Resolution: 240x240
Backlight: LED
Operating voltage: 3.3V

Interface SYMBOL Raspberry Pi PIN (BCM) DESCRIPTION KEY1 P21 Button 1/GPIO KEY2 P20 Button 2/GPIO KEY3 P16 Button 3/GPIO Joystick Up P6 Joystick Up Joystick Down P19 Joystick Down Joystick Left P5 Joystick Left Joystick Right P26 Joystick Right Joystick Press P13 Joystick Press SCLK P11/SCLK SPI clock input MOSI P10/MOSI SPI data input DC P25 Data/Command selection (high for data, low for command) CS P8/CE0 Chip selection, low active RST P27 Reset, low active BL P24 Backlight DimensionsDevelopment Resources

Wiki : Package Contains

1.3inch LCD HAT x1
RPi screws pack (2pcs) x1
