Waveshare 1.3inch IPS LCD Display HAT for Raspberry Pi 240x240 SPI:
$41.78

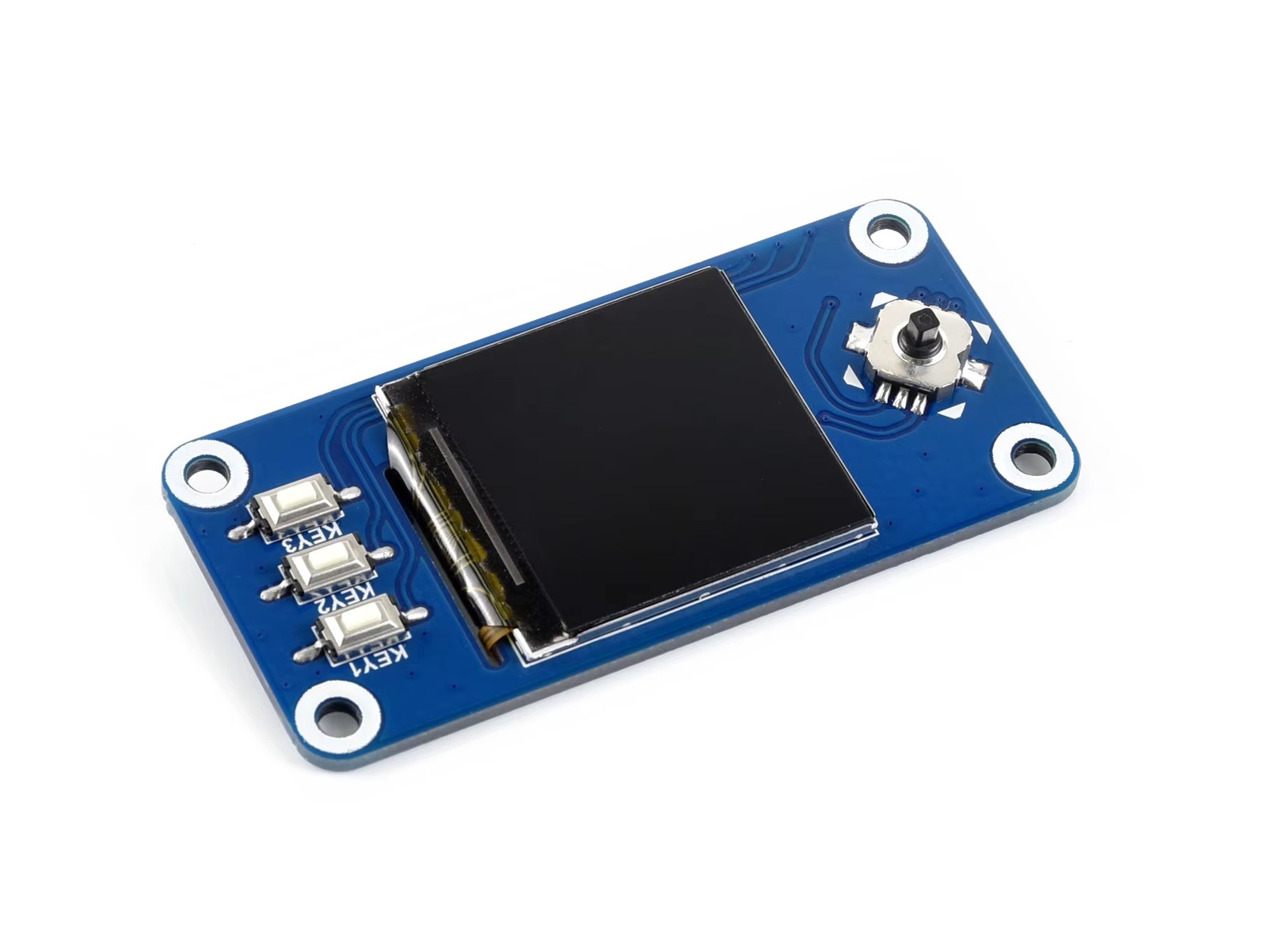

Waveshare 1.3inch IPS LCD Display HAT

240x240 SPI Display with Joystick & Buttons for Raspberry Pi 🖥️

FeaturesIPS Display

1.3inch IPS LCD panel, 240x240 resolution, wide viewing angle, 65K RGB colors, ST7789 driver.

Standard GPIO HAT

Plugs directly onto the 40-pin GPIO header, compatible with Raspberry Pi Zero/Zero W/3B/3B+/4/5.

Built-in Controls

Includes 1x joystick and 3x pushbuttons for interactive projects and menus.

Developer Ready

Ships with development resources and example code for quick LCD HATDisplay Size1.3 inchResolution240x240 pixelsDriver ICST7789InterfaceSPIDisplay ColorRGB, 65K colorOperating Pi Zero/Zero W/3B/3B+/4/5Package Contents1x LCD HAT, 1x RPi screws pack (2pcs)Product ImagesFAQWhich Raspberry Pi boards does this support?

It fits the standard 40-pin GPIO header used on Raspberry Pi Zero, Zero W, 3B, 3B+, 4 and 5.

Does it need extra power?

No, it operates at 3.3V and is powered directly through the Raspberry Pi GPIO header.

What is included in the package?

You receive the 1.3inch LCD HAT and a pack of 2 mounting screws.

Is programming support available?

Yes, example code and development resources for Raspberry Pi are provided with the module.
