Watchfire Power Supply Part # 510300 Rev 1.3 Delta Electronics DPS-203CBA For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

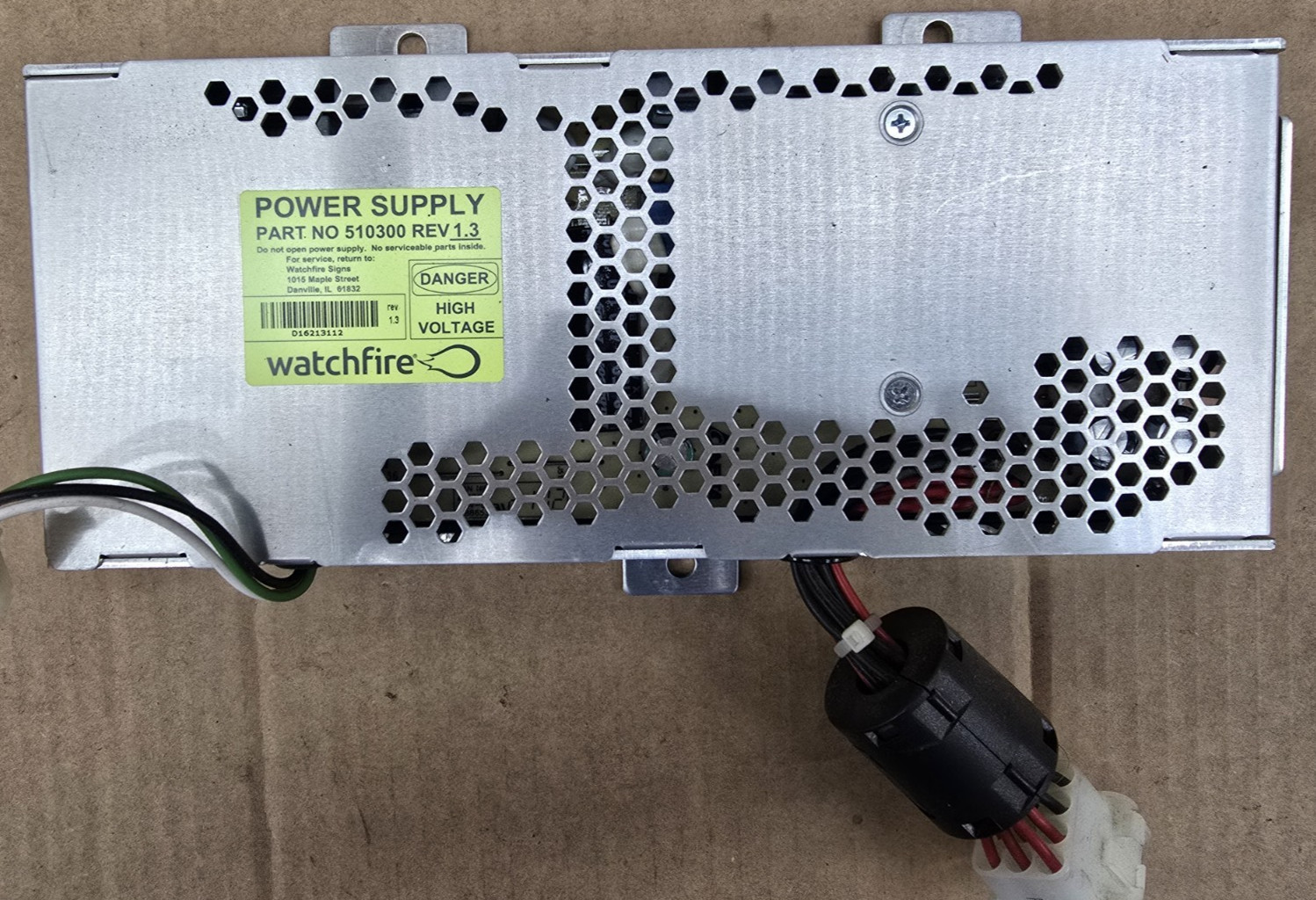

Watchfire Power Supply Part # 510300 Rev 1.3 Delta Electronics DPS-203CBA:
$162.45

These Power Suppiles came from a working LED Watchfire sign - Model Number: w16jfvCompatible Models: oa16/b/j w16/j
Output: 4.5V 45AInput: 120-240VAC 3.5-2A 50-60Hz
Part Number: 510300
Keep your Watchfire running. These parts will no longer be available from Watchfire soon.
30 Day Warranty
I cannot verify that these fit other sign models but will gladly accept returns if you buy it and it doesn\'t fit your sign. You just pay shipping for the return. If you return using an label, the cost will be deducted from the refund amount.

---

---

---

Watchfire Power Supply Part # 510012 Rev 1.0

$97.47

---

Watchfire Power Supply Part # 510300 Rev 1.3 Delta Electronics DPS-203CBA

$162.45

---

Watchfire Power Supply Part # 57368 Rev 1.10

$81.22

---
