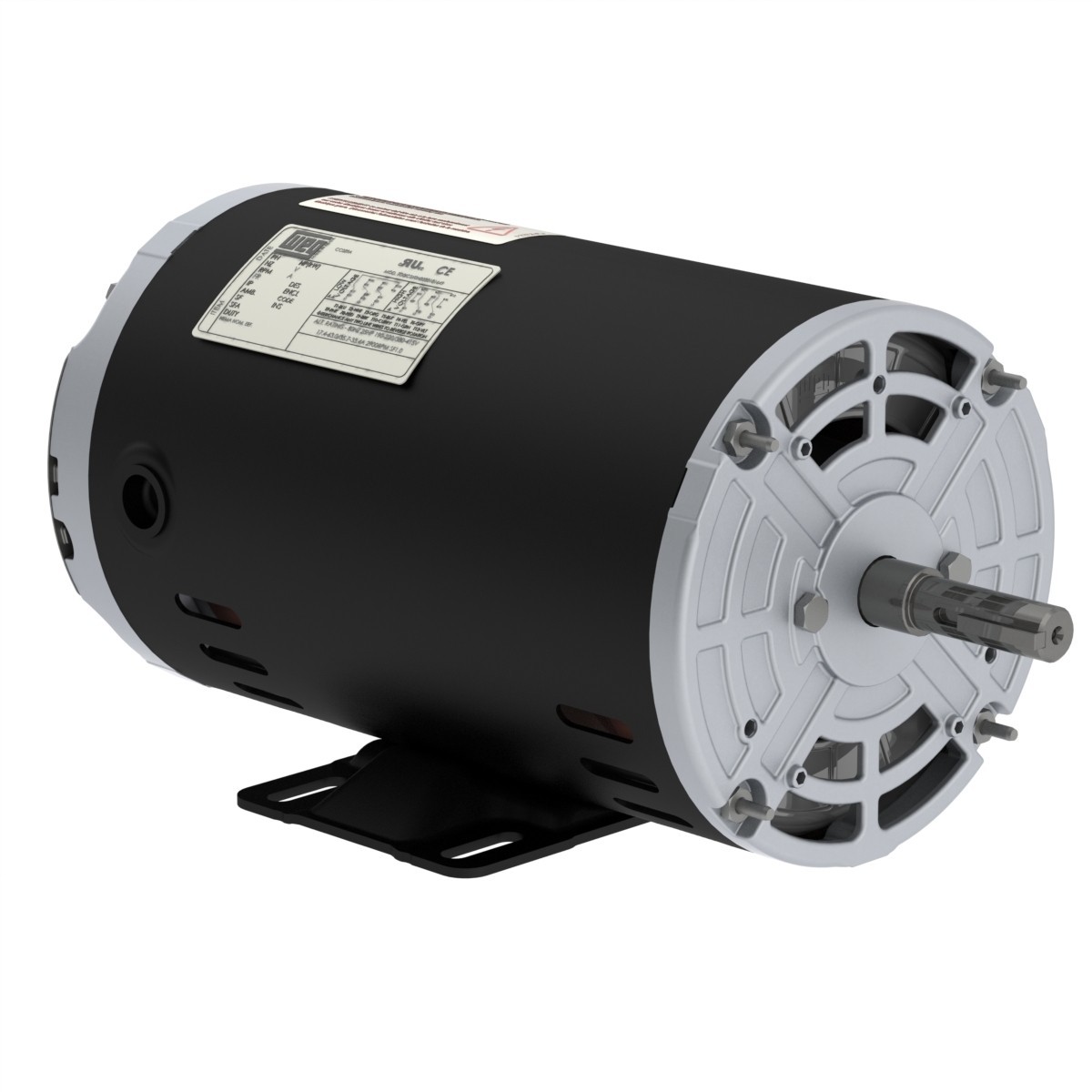

WEG Premium Efficiency 0.75 HP 4P 56 3Ph 208-230/460 190-220/380-415 V 60 Hz For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

WEG Premium Efficiency 0.75 HP 4P 56 3Ph 208-230/460 190-220/380-415 V 60 Hz:
$299.71

🌟 Welcome to By It At A Discount 🌟

Your Trusted Store for UNBEATABLE Deals for Automotive, Fashion, collectibles & SO MUCH MORE!

ROLLED STEEL Premium Efficiency 0.75 HP 4P 56 3Ph 208-230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted 📝 Product Description Frame MaterialRolled SteelImpregnation MethodDip and Bake PolyesterShaft MaterialSAE 1040/45 Carbon SteelPaintingOnly primer Grounding LugsSingleFan Cover materialWithout Fan CoverTropicalized PaintingWithoutBearing capNo-Without Bearing CapBolt MaterialCarbon SteelBalancing Method1/2 KeyDrip CoverWithoutResilient BaseWithoutOverload protector (phenolic)Without overload protector Connection Cables Quantity9Fan materialWithout fanNDE bearing SealWithout Bearing SealDE bearing SealWithout Bearing SealFrame56Output0.75 HP (0.55 kW)Number of Poles4Frequency60 HzRated speed1760 rpmSlip2.22 %Rated voltage208-230/460 VRated current2.54-2.30/1.15 AL. R. Amperes18.5-16.8/8.40 ALRC7.3x(Code K)No load current1.38-1.60/0.800 ARated torque2.24 ft.lbLocked rotor torque250 %Breakdown torque300 %Locked rotor time37s (cold) 21s (hot)Moment of inertia (J)0.0712 sq.ft.lbInsulation ClassFTemperature rise80 KService factor1.25 (1.00 @ 208V)Duty CycleCont.(S1)Starting MethodDirect On LineAmbient temperature-20°C to +40°CAltitude1000 m.a.s.l.EnclosureIC01 - ODPMountingF-1Rotation¹Both (CW and CCW)Noise level²52.0 dB(A)Approx. weight³35.5 lb 🚚 Shipping Fast & Free Shipping: All orders Shipped within 2 Business Days with Tracking Numbers provided. ✅ Why Buy From Us?
