Voltage Electric Tester Volt Detector Test Pen Non-Contact Sensor AC DC:
$19.98

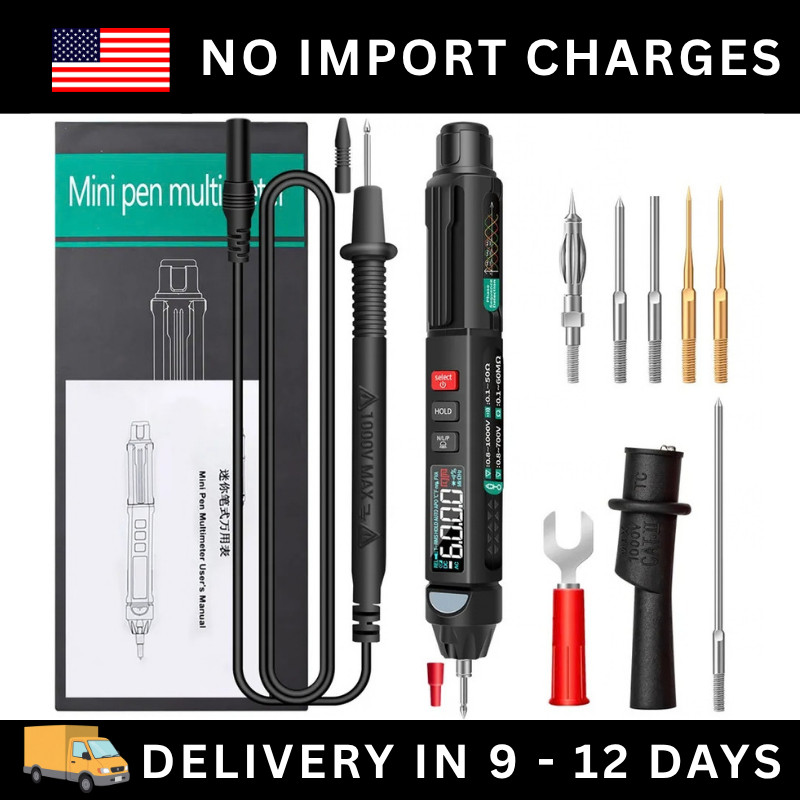

ANENG A3008 Pro 6000 Count Digital Multimeter Pen
The ANENG A3008 Pro is a compact, multifunction digital multimeter designed in a convenient pen-style format. It combines everyday electrical testing functions with useful features such as NCV detection, phase sequence detection, True RMS, temperature measurement, capacitance testing, frequency measurement, and a built-in flashlight.
Its slim design makes it easy to carry in a pocket, tool bag, or work kit, while the clear 6000-count display helps make measurements easy to read. Whether you are working on electrical equipment, troubleshooting circuits, checking components, or handling DIY projects, the A3008 Pro provides a practical range of testing functions in one portable device.
Key Features
6000-count digital displayCompact pen-style designTrue RMS measurementAutomatic rangingAC and DC voltage measurementResistance measurementCapacitance measurementDiode testingContinuity and on/off detectionNCV non-contact voltage detectionNon-contact phase sequence detectionLive and neutral wire detectionFrequency measurementAmbient temperature measurementData hold functionBacklight/manual screen illuminationBuilt-in flashlightSound and light alarmAutomatic power-offRemovable metal test tipIntegrated pen holder for convenient carrying
Multi-Function Electrical Tester
The A3008 Pro combines several commonly used electrical testing functions into one compact tool. Instead of carrying a traditional multimeter for every basic measurement, this pen-style tester provides access to voltage, resistance, capacitance, diode, continuity, frequency, and temperature functions in a portable design.
The automatic mode can simplify routine measurements, while selectable functions allow you to choose the measurement required for a particular task.
AC and DC Voltage Testing
The A3008 Pro supports both AC and DC voltage measurement.
DC Voltage Range: 0.8V to 1000VAC Voltage Range: 0.8V to 700V
This makes the tester suitable for a variety of electrical testing, maintenance, and troubleshooting applications.
Resistance Measurement
Use the resistance function to check electrical components, connections, and circuits.
Resistance Range: 0.1Ω to 60MΩ
The automatic ranging function helps the meter select an appropriate measurement range during testing.
Capacitance Testing
The dedicated capacitance function allows you to measure capacitors and other suitable components.
Capacitance Range: 0 to 60mF
The meter provides automatic ranging when the capacitance function is selected.
Diode Test
The A3008 Pro includes a dedicated diode testing function for checking diode values.
Diode Test Voltage: 3.0V
Frequency Measurement
The built-in Hz function allows frequency measurements across a wide range.
Frequency Range: 1Hz to 10MHz
This provides an additional testing option for electrical circuits and signals where frequency measurement is required.
NCV Non-Contact Voltage Detection
The NCV function helps detect the presence of AC voltage without requiring direct contact with the conductor.
The tester provides sound and visual indications when voltage is detected. This can be useful when checking wiring and identifying potentially live electrical lines.
Always use appropriate electrical safety practices when working with live circuits.
Phase Sequence Detection
The A3008 Pro also includes non-contact phase sequence detection. It can identify normal or forward phase rotation and reverse phase order.
This function can be useful during electrical installation, testing, and maintenance work where phase sequence needs to be checked.
Live Wire Detection
The tester provides live wire detection with sound and light indications. This can help users identify electrical lines during testing and troubleshooting.
Temperature Measurement
The A3008 Pro can measure ambient temperature and supports both Celsius and Fahrenheit display options.
Temperature Range: -20°C to 50°C
Clear VA Reverse Display
The VA reverse display is designed to provide a clear reading from different viewing angles. Screen illumination also helps improve visibility when working in darker areas.
Built-In Flashlight
A built-in flashlight provides additional illumination when working around electrical panels, wiring, components, or other areas where lighting is limited.
The flashlight can be activated using the dedicated control on the tester.
Data Hold Function
The data hold function allows you to retain the displayed measurement on the screen. This can make it easier to record or check a reading without having to keep the test position unchanged.
Compact Pen-Style Design
The A3008 Pro is designed to be easy to carry and handle. Its slim body can be kept in a pocket or tool bag, while the integrated pen holder makes it convenient to keep the tester accessible during work.
The metal test tip is removable and can be protected with the included cap when not in use.
Product Specifications
Brand ANENGModel A3008 ProDisplay 6000 CountsMaterial ABSBattery 1 x AAA 1.5V, Not IncludedWeight Approx. 37gProduct Size 170.5 x 25.4 x 22mmAC Voltage 0.8V to 700VDC Voltage 0.8V to 1000VResistance 0.1Ω to 60MΩCapacitance 0 to 60mFFrequency 1Hz to 10MHzTemperature -20°C to 50°CDiode Test 3.0VTrue RMS YesNCV Detection YesPhase Sequence Detection YesContinuity Test YesLive/Neutral Detection YesData Hold YesBacklight YesFlashlight YesAutomatic Shut-Off Yes
Ideal For
The ANENG A3008 Pro is suitable for a wide range of electrical testing and maintenance tasks, including:
Electrical equipment testingCircuit troubleshootingWiring checksVoltage testingResistance testingComponent testingCapacitor testingDiode testingFrequency measurementPhase sequence checkingElectrical maintenanceDIY electrical projectsWorkshop and general testing
What's Included
1 x ANENG A3008 Pro Digital Multimeter PenTest lead/probe accessories as shownRemovable metal test tipProtective caps/accessories as shownUser manual
