Vintage Wire-Wrap Processor Backplane 8010-4521-00 / 8010-4520-00 Rev 2 Computer:
$199.99

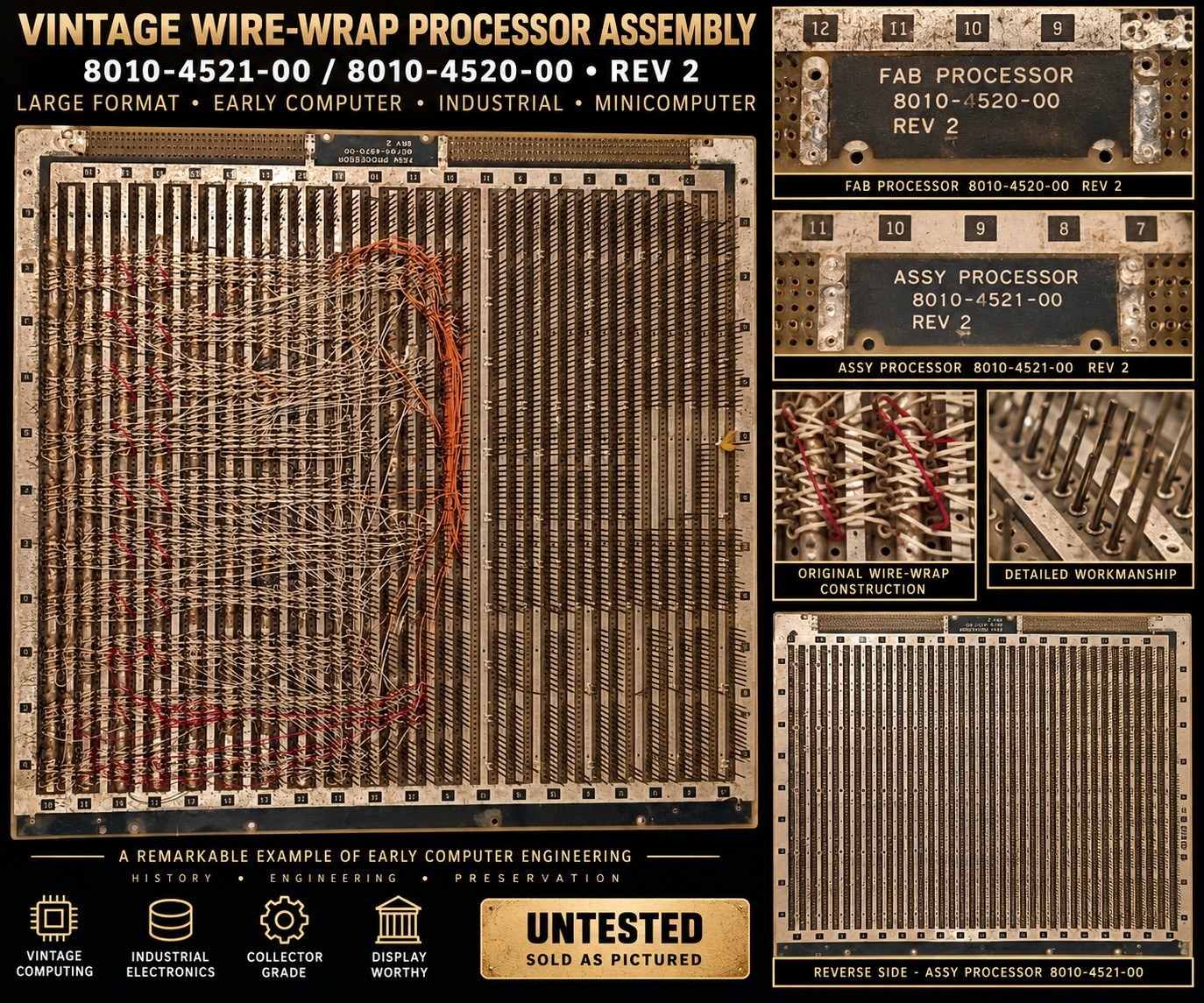

Vintage large-format wire-wrap processor/backplane assembly.Board markings:ASSY PROCESSOR 8010-4521-00 REV 2
FAB PROCESSOR 8010-4520-00 REV 2Impressive early computer/industrial electronics construction featuring extensive hand-routed wire-wrap interconnections, numbered card/connection positions, large edge connectors and a substantial multi-layer backplane structure.Exact original manufacturer/system has not yet been confirmed, so it is being identified strictly by the markings visible on the assembly.Excellent display piece for a vintage computing, minicomputer, computer-history or industrial electronics collection.Vintage used condition with oxidation, dust, age-related discoloration and general storage wear as pictured. Wiring appears substantially intact but has not been electrically inspected.UNTETED – no functional testing performed.Sold exactly as pictured. Please review all photographs for condition and configuration.
