Vintage SMITH TOOL Power Driver Board PWM 26-0015 PWB 26-0016 NOS USA For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

Vintage SMITH TOOL Power Driver Board PWM 26-0015 PWB 26-0016 NOS USA:
$49.98

RARE NOS SMITH TOOL Power Driver Board

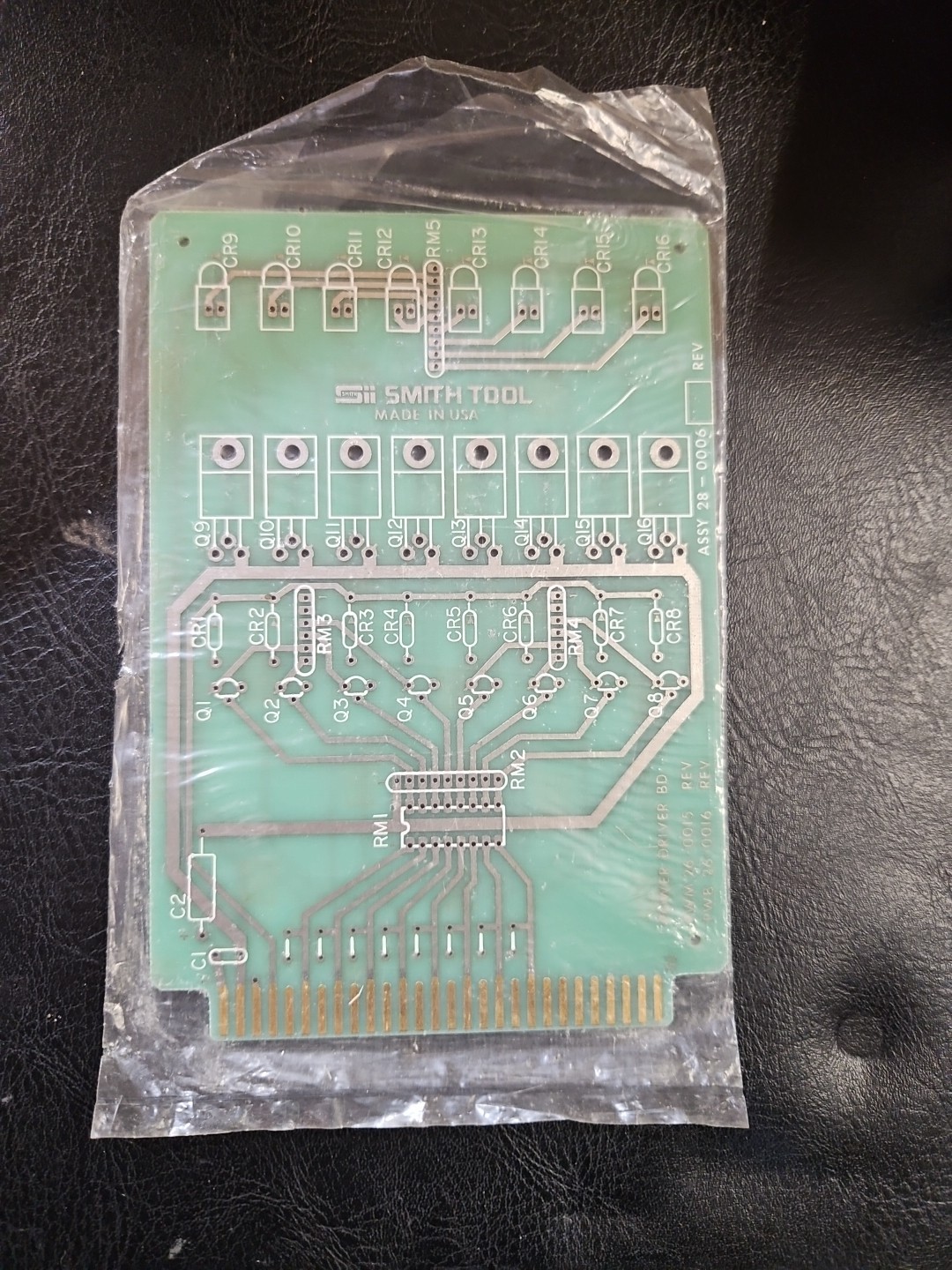

Part numbers: PWM 26-0015 / PWB 26-0016 / ASSY 28-0006

Made in USA – never used, never soldered

36-pin gold edge connector, 16 transistor + 16 diode + 5 resistor pack layout

Ideal for vintage industrial automation, CNC, motor control repair, or prototyping

Pristine condition – from factory surplus

---

---

---

Vintage Smith Oxy-Acetylene Jewelry Etc Welding Torch Handle + Tips B-551491 Kit

$99.99

---

Vintage Smith Corona PWP 145 Personal Word Processor Typewriter - Tested Working

$125.00

---

Vintage SMITH TOOL Power Driver Board PWM 26-0015 PWB 26-0016 NOS USA

$44.98

---
