On eBay Now...Vintage Eagle Telephonics Switch Matrix Board P/N 101251- 182251-1 w/ 8x Siemens For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Vintage Eagle Telephonics Switch Matrix Board P/N 101251- 182251-1 w/ 8x Siemens:
$150.00

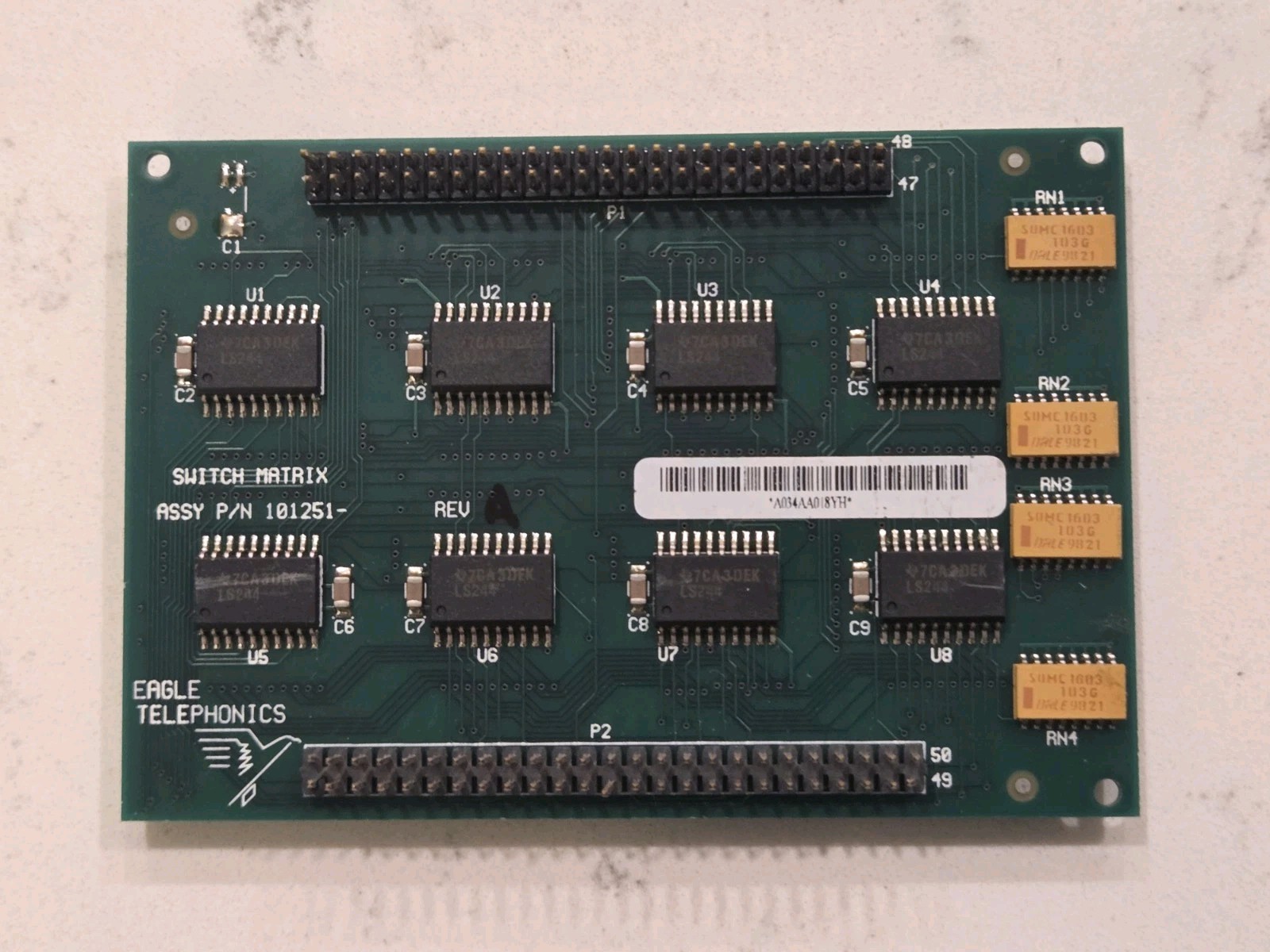

- Up for sale is a vintage Eagle Telephonics Switch Matrix Board (Assembly P/N 101251- / Board P/N 182251-1 Rev A). Pulled from a retired telecommunications system. This board is particularly valuable for its onboard components, featuring eight Siemens PEB 2045 N (MTSC VA3) Memory Time Switch CMOS ICs, alongside TI logic chips. The board is in excellent visual condition with clean gold-plated header pins. Perfect as a drop-in replacement for legacy PBX system repair or for component harvesting. Sold as-is, untested.
Vintage Eagle 270-BU 2-Pole Brown Duplex Receptacles 15A 125V Box of 10 NOS
$12.00
Vintage Eagle Cone Glocoil New in Original Box 415-A Heating Element 660 Watts
$34.50
Vintage Eagle Telephonics Switch Matrix Board P/N 101251- 182251-1 w/ 8x Siemens
$150.00
