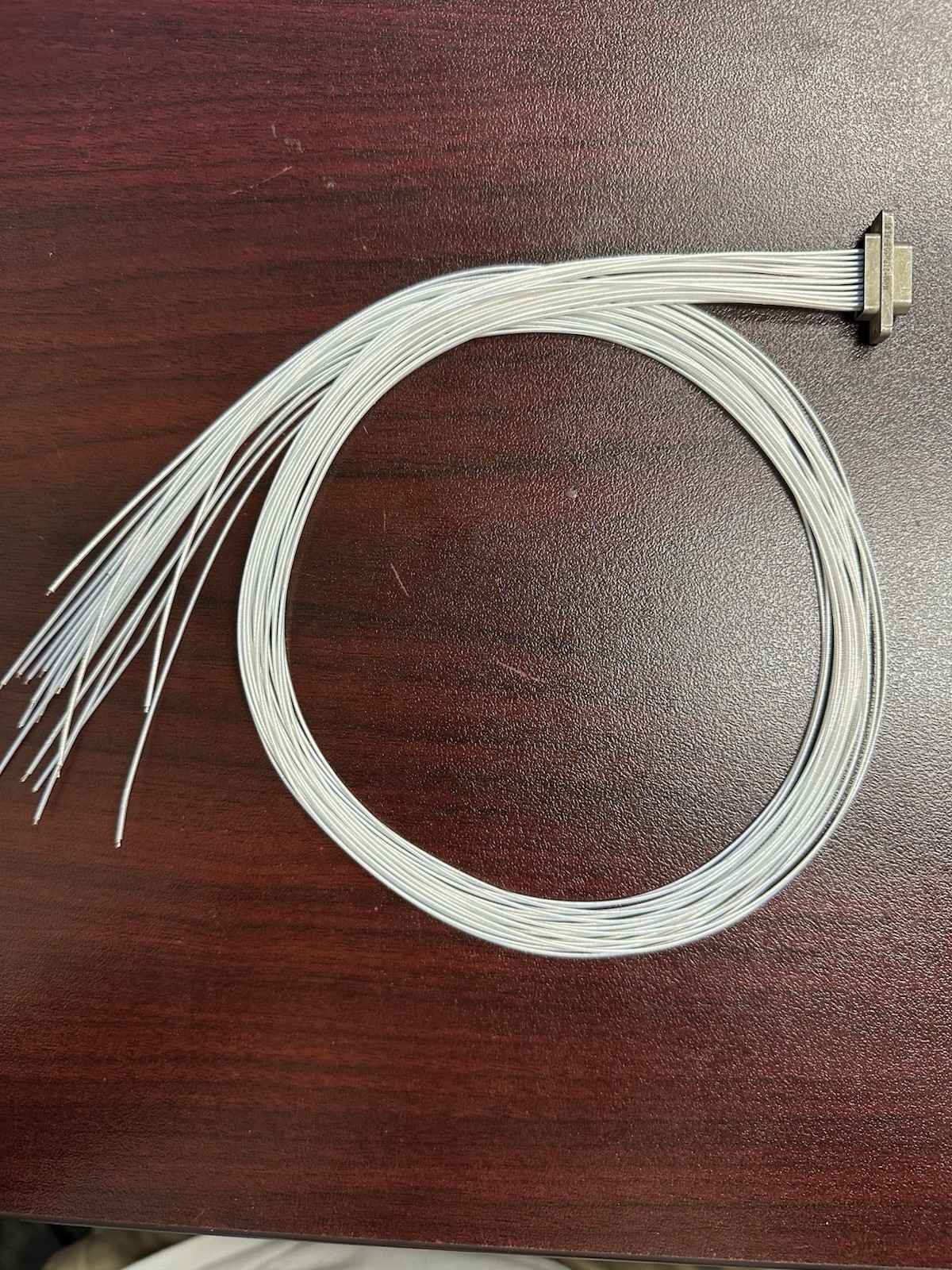

Vintage 1978 ITT Cannon MDM-21PH50B-A141 Micro-D Cable Assembly JPL Inspected:
$299.00

Vintage 1978 ITT Cannon Micro-D cable assembly with original JPL inspection documentation.

Manufacturer: ITT Cannon Electric, Santa Ana, California

Part Number: MDM-21PH50B-A141

Connector: 21-Contact Micro-D

Date Code: 7824

Identification / Serial: 7824-01

Overall Length: Approximately 25 inches

Includes the original ITT Cannon/JPL inspection tag shown in the photos. The identification information on the original tag corresponds with the markings on the connector.

Vintage aerospace/electronic new old stock. The exact original application is unknown, and no claim is made that this item was installed on or flown aboard a spacecraft.

Please review all photos carefully for connector configuration, condition, markings and original documentation.

You will receive the exact item shown in the photos.

---

---

---
