Valenite Vari-Set E-Z Set Boring Head and Bar 1.25in Shank Short 7.5in OAL For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Valenite Vari-Set E-Z Set Boring Head and Bar 1.25in Shank Short 7.5in OAL:
$79.00

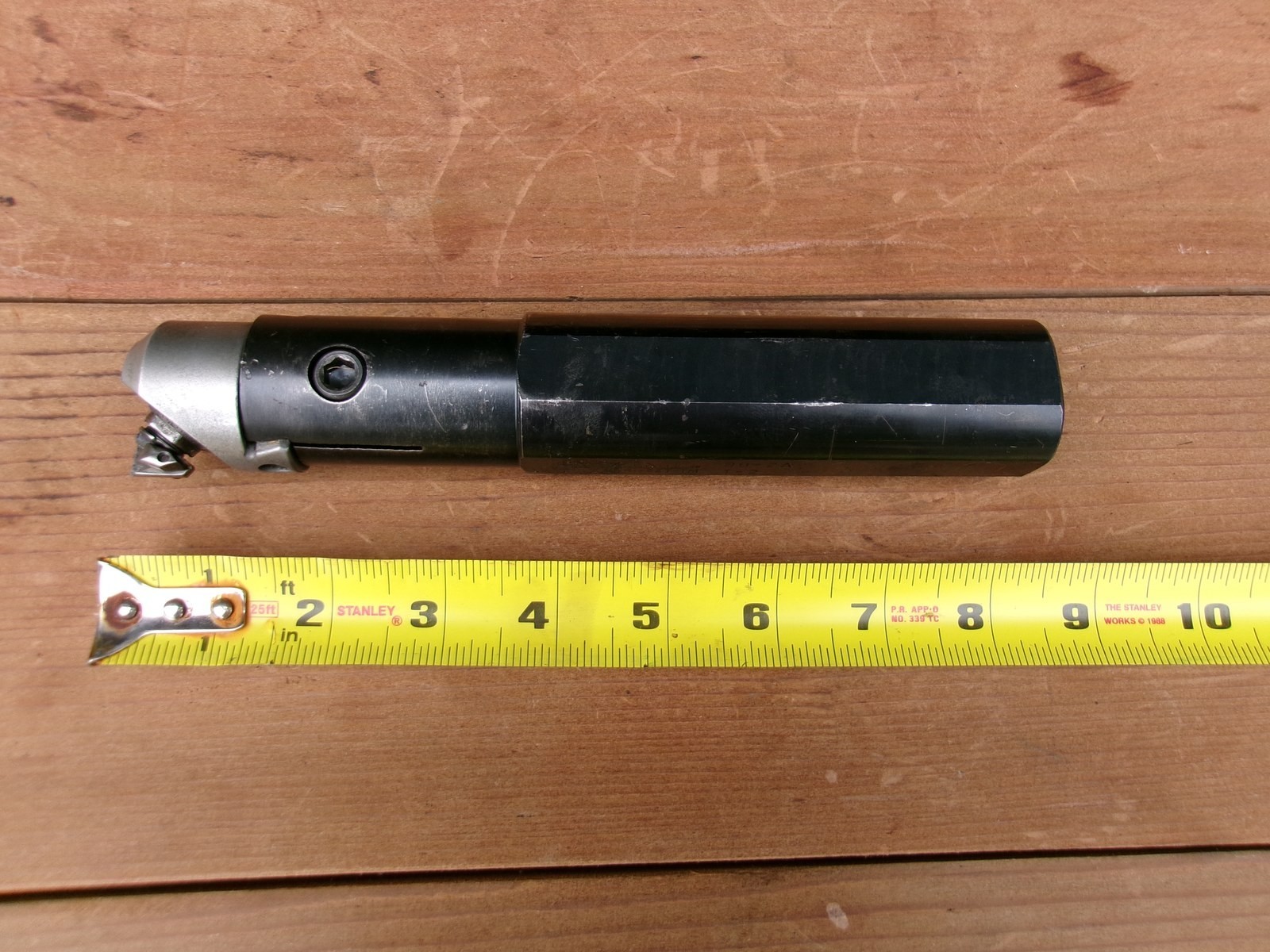

Valenite Vari-Set E-Z Set boring head on a short boring bar. The head is an E-Z Set finish boring head of the EBN-2 size. The dial is marked "VALENITE E-Z SET PAT. NO. 3,178,969". The bar is a BB-2 size bar with the shank shortened to about 4.8 in. The model markings on the head and the bar are not legible. Measure before you buy: overall length about 7.5 in, head diameter about 1.3 in, shank diameter 1.25 in.

Head: E-Z Set dial sleeve, 0.001 in on diameter per graduation. Radial adjustment with a side lock screw.
Boring range (EBN-2 size): 1.500 to 2.062 in.
Cartridge: fitted, with an empty pocket for a triangular insert (TPEE-731 size).
Bar: 1.25 in cylindrical shank with a flat, shortened. Split-sleeve clamp with one cap screw.
Overall length: about 7.5 in.

A short bar suits a compact turret or a boring bar block with limited clearance.

Included: The head, the cartridge and the bar.
Not included: No insert. One of the two dial face cap screws is not included. No wrench.

Ships from Michigan with flat-rate shipping. Returns accepted within 30 days.
