VU-DATA 5110 Semiconductor Test Set Transistor Diode Tester US Navy Tested:
$375.00

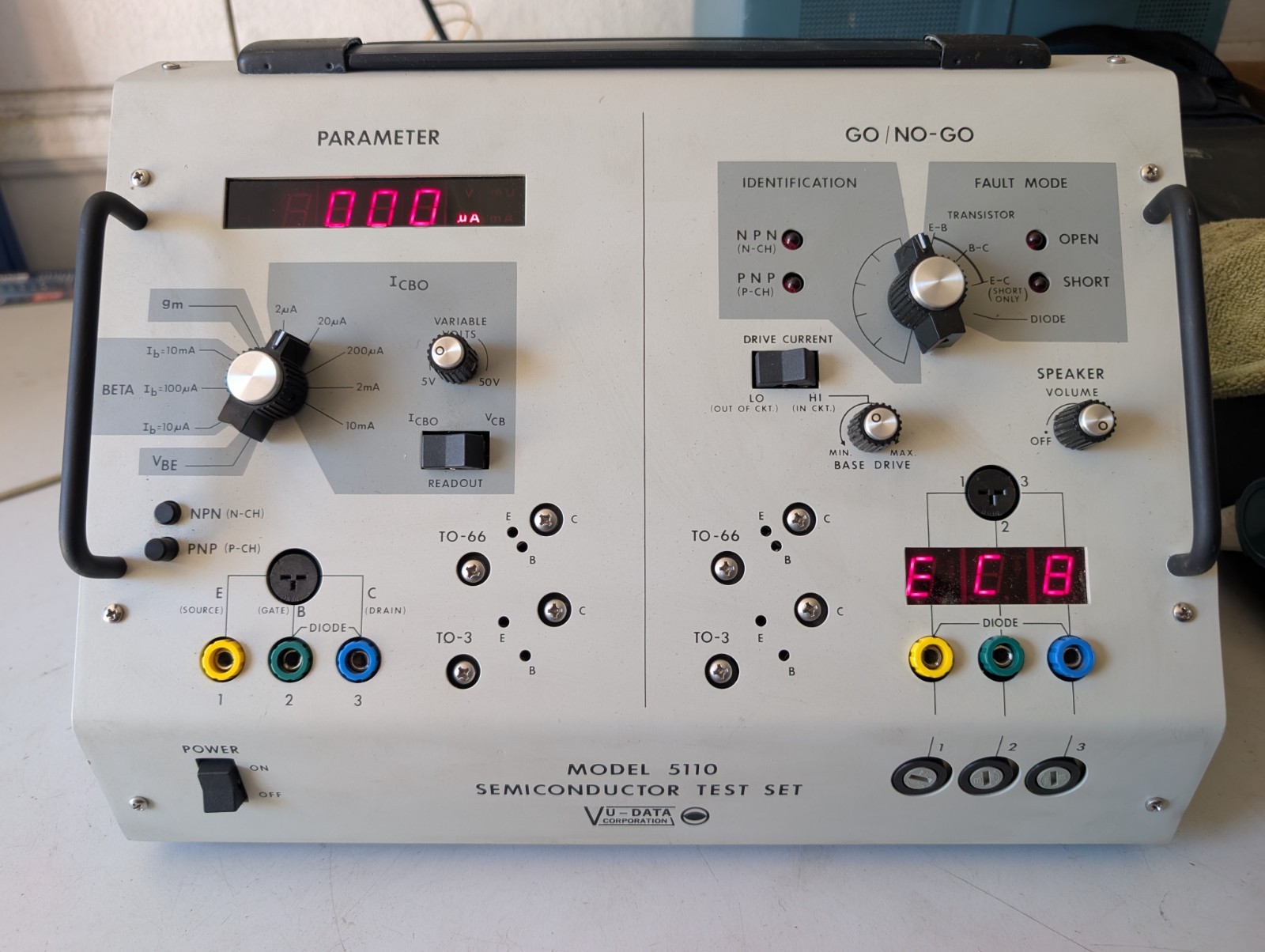

Vintage professional semiconductor test equipment manufactured by VU-DATA Corporation, San Diego, California, USA.

This Model 5110 is designed for testing and evaluating semiconductor devices including transistors and diodes. The front panel provides parameter measurements as well as GO/NO-GO testing, device identification and fault indication.

Unit details:

Manufacturer: VU-DATA Corporation
Model: 5110
Serial Number: 2246
Semiconductor Test Set
Made in USA
115 VAC
50–60 Hz
Approx. 10 watts
1/2 amp slow-blow fuse
NPN / PNP testing
Transistor / diode testing
Beta measurement
VBE measurement
ICBO / VCB measurements
GO / NO-GO semiconductor testing
Open / short fault indication
TO-3 and TO-66 device connections
Built-in speaker
Carrying handle

The instrument also retains a U.S. Navy calibration/identification label, marked:

Identification No.: U9060/G070614
Authority: NAVAIR 17-20AY-46
Date Calibrated: 2010-12-12
Date Due: 2015-12-06

This calibration is expired and is provided only as part of the unit's history/provenance. The instrument is NOT being represented as currently calibrated.
The Military installed Hour Indicator still shows at the 0 position. This unit was likely never used.

The unit was powered on for the photographs. Both front-panel digital displays illuminate and controls appear physically intact. The interior was opened for inspection and is shown in the photographs.

No complete operational or calibration testing has been performed.

Cosmetically, the unit is in good vintage condition with normal marks, scratches, discoloration and signs of previous use/storage. Please examine all photographs carefully, as they are part of the description.

Included:
VU-DATA Model 5110 Semiconductor Test Set, No power cord or leads included

No test leads, semiconductor devices, manual or other accessories are included unless specifically shown.

Sold as pictured.
