VISHAY Pulse Film Capacitor 10000pF 0.01uF 10nF 1.6K 1600V DC 500V AC Cap For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

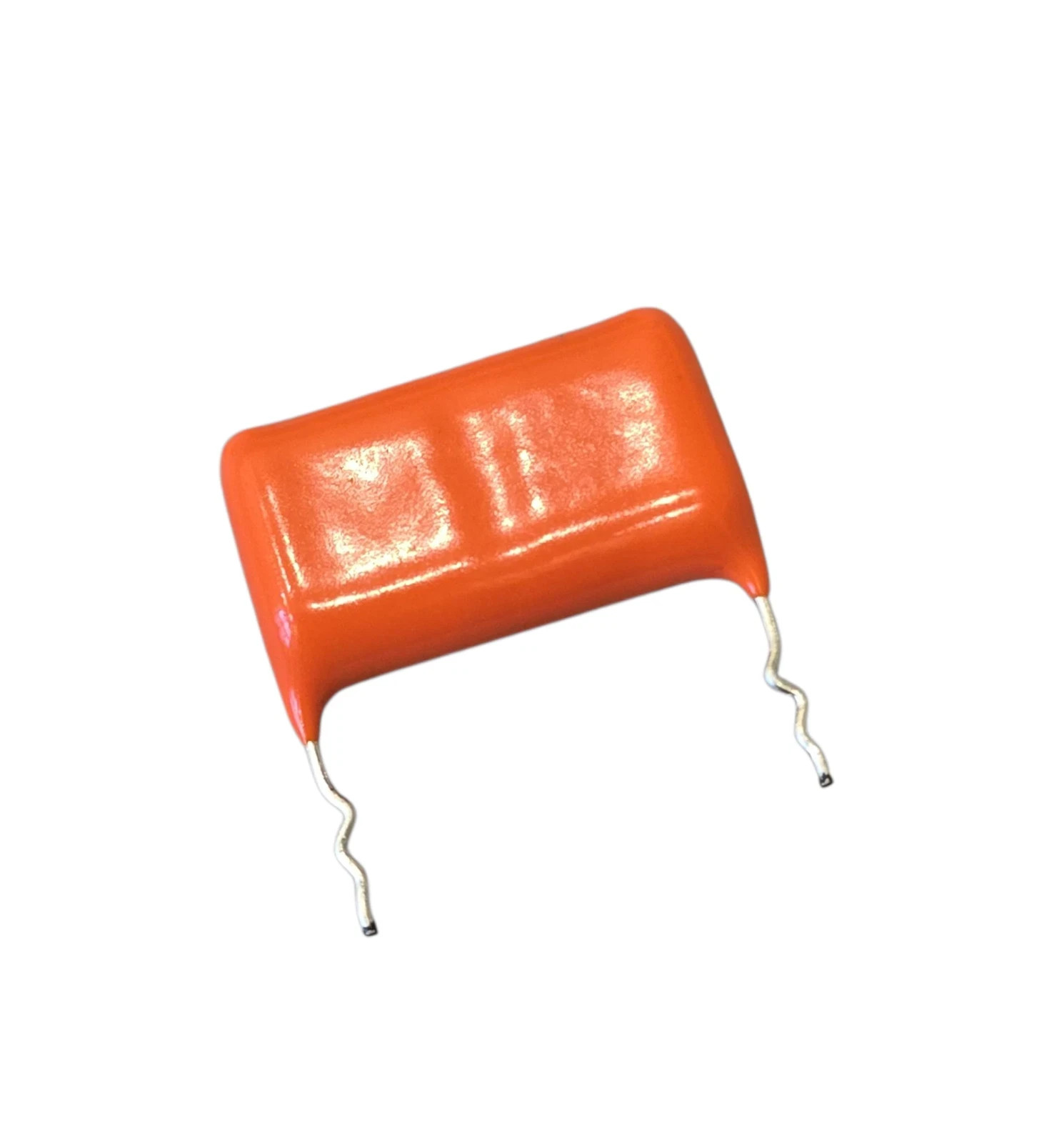

VISHAY Pulse Film Capacitor 10000pF 0.01uF 10nF 1.6K 1600V DC 500V AC Cap:
$6.99

Manufacturer: Vishay Product Category: Film Capacitor Capacitance: 0.01 uF Voltage Rating DC: 1.6 kVDC Termination Style: Radial Dielectric: Polypropylene (PP) Lead Spacing: 22.5 mm Length: 24.5 mm Width: 6.5 mmHeight: 15.5 mmProduct: AC and Pulse Film Capacitor Voltage Rating AC: 500 VAC Tolerance: 5 % Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 105 C Series: BFC2375 Brand: Vishay / BC Components Capacitance - nF: 10 nF Capacitance - pF: 10000 pF Product Type: Film Capacitor

---

---

---

VISHAY Pulse Film Capacitor 10000pF 0.01uF 10nF 1.6K 1600V DC 500V AC Cap

$159.99

---

102 pcs. VISHAY DALE WSL2010R2200FBA RES 0.22 OHM 1% 1/2W 2010

$139.99

---

20x 10 Ohm 2W Resistors Dale FP2 10R 5% Axial Power Resistor

$11.24

---
