V1.0 Stepper Motor Driver Ultra-Silent Driver with Heatsink Up to 36V Support...:
$44.09

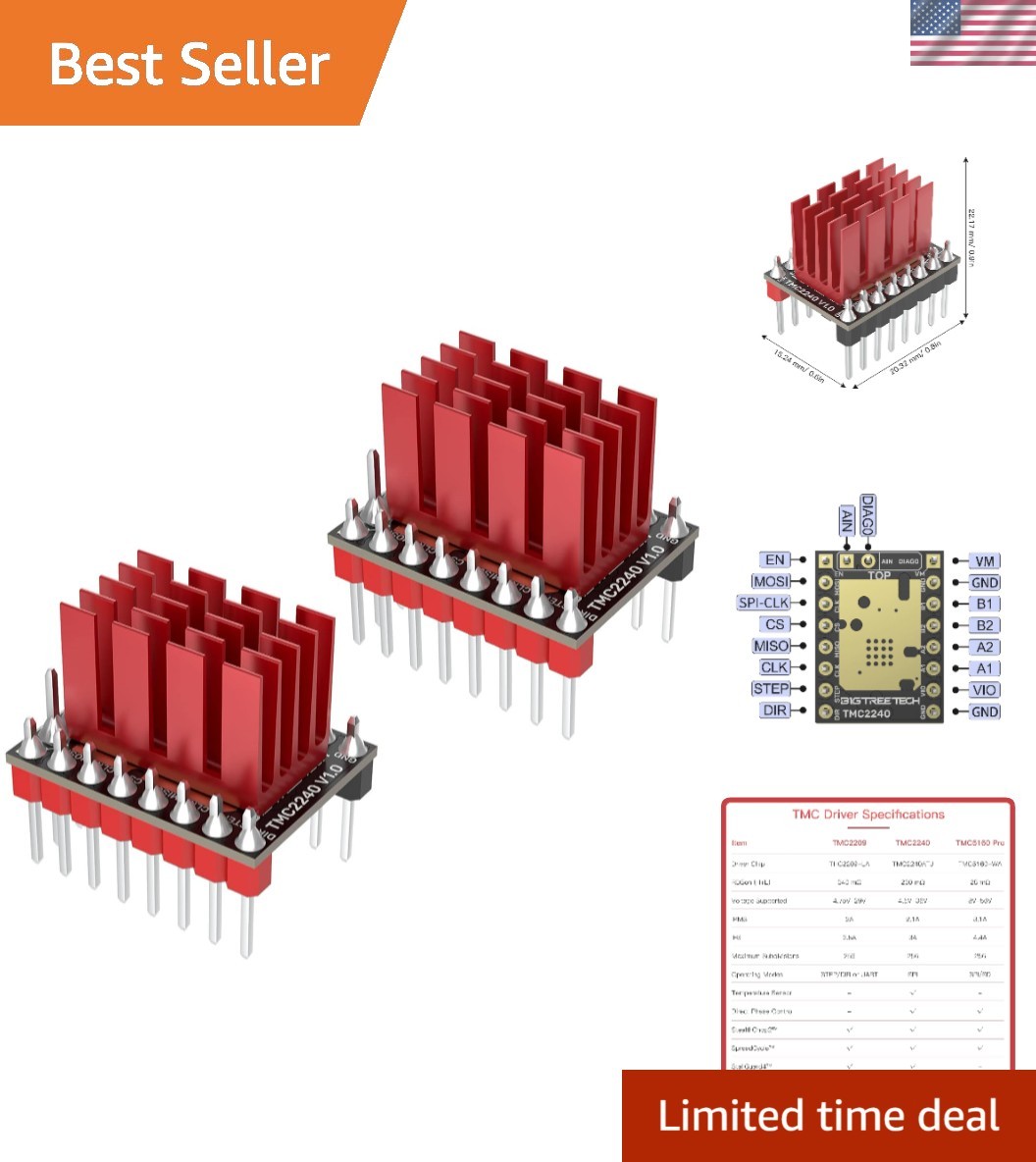

Stepper Motor Driver Ultra-Silent Driver with Heatsink Up to 36V Support High-Speed Printing For Manta M8P/M5P/M4P, Octopus, Octopus Pro, SKR 3 EZ, SKR 3 Control Board 2 PCS

Support voltage of ; Meet the needs of high-speed printing, support up to 36V drive motor, and support up to current; Supports 256 high segmentation

Real time monitoring of the temperature of the motor and drive, TMC2240 can directly report the temperature of its own chip; Supports analog signal input

Please pay attention to the direction when inserting the TMC2240 drive, and do not reverse it to avoid damaging the drive. Supports the Sensorless Homing function

The TMC2240 driver is a new type of silent driver that supports a higher voltage range and a larger current output. If you use high voltage (greater than 24V) or high current (greater than , you must use active cooling to avoid overheating the drive

TMC2240 defaults to SPI mode at the factory, and we recommend that you use SPI mode; If you need to use UART mode, you need to manually short together the solder joints at R4 position with tin; To avoid damaging the drive, it is not recommended to try it easily without welding experience. We sincerely recommend that you choose TMC2209 for UART mode drive

Stepper Motor Driver>/b>
Product Parameters:
1. Support for high segmentation: 256 segmentation
2. Supported voltage:
3. Maximum supported current: IFS=3A
4. Support for Sensorless Homing function
5. Low conduction resistance: Rdson (H+L)=230m Ω
6. Communication method: SPI or UART (factory default SPI)
7. Overheat protection, overvoltage protection, stall protection
8. Support for analog signal input
9. Real time monitoring of motor and drive temperature
