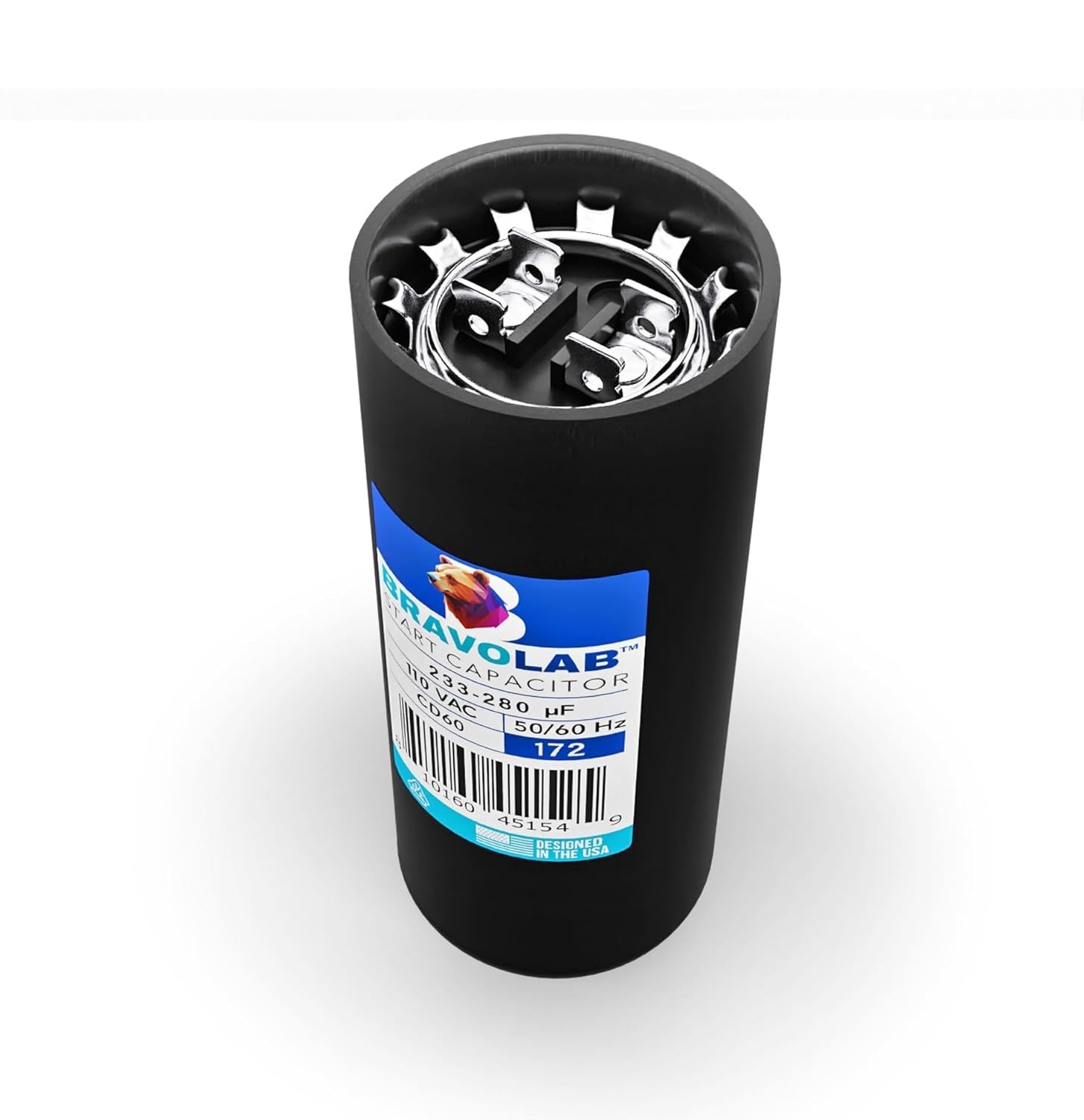

Universal Start Capacitor CD 60 for Electric Motors of 233-280 uF MFD, 110 VAC:
$11.99

BrandBRAVO LAB XMaterialMetal, PolypropyleneShapeRoundOperating Voltage110 voltsCapacitance Tolerance233-280 μF +/-5%About this item

Contents: Package contents one capacitor 233-280 μF Round, Polypropylene and Metal
Brand: BRAVO LAB X
Type: CD 60
Capacitance: 233-280 μF
Capacitance tolerance: +/-5%
Reliable product 233-280 μf Capacitor. Replaceable 110 VAC Capacitors.
Rated Voltage: AC 110 V; frequency: 50/60Hz;

This capacitor will run industrial electric motors, compressors, air conditioners, refrigeration systems
Internal explosion proof device: Provides additional protection for greater safety

Product Description

A capacitor is an electrical component that temporarily stores an electrical charge and is a key component for starting electric motors.

Features: Low Dissipation: Minimizes energy losses, improving efficiency.
High Insulation Resistance: Ensures safe and reliable operation.
Good Self-Healing Ability: Extends the life of the capacitor.
Resistance to Surge Currents: Withstands current peaks without being damaged
Stable Electrical Performance: Maintains constant performance under various conditions.
Internal Explosion Proof Device: Provides additional protection for greater safety.
Specifications:

- Construction: Round, durable Polypropylene casing, 2 metal terminals, 4 connection pins.
- Color: Black
- Size range: 233-280 μF
- Supplier code: 172
- Shape Round
- Rated voltage: 110 VAC
- Rated frequency: 50/60 Hz
- Operating temperature: -40 / 149 °F
- Dissipation factor: tanδ <= 0.15 100Hz 68 °F
- Testing voltage: T-T1, 2Un 2S T-C 2000 VAC 10 s
- Certifications: EN60252-2, C22.2 No.190
- Applications: Industrial electric motors, compressors, air conditioners
- Dimensions: Diameter 1.38 Inch High 3.54 Inch Weight 3 oz
