UNI-T UTI120MS Phone Thermal Imaging Camera IOS Circuit Floor Heat Detection For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

UNI-T UTI120MS Phone Thermal Imaging Camera IOS Circuit Floor Heat Detection:
$132.99

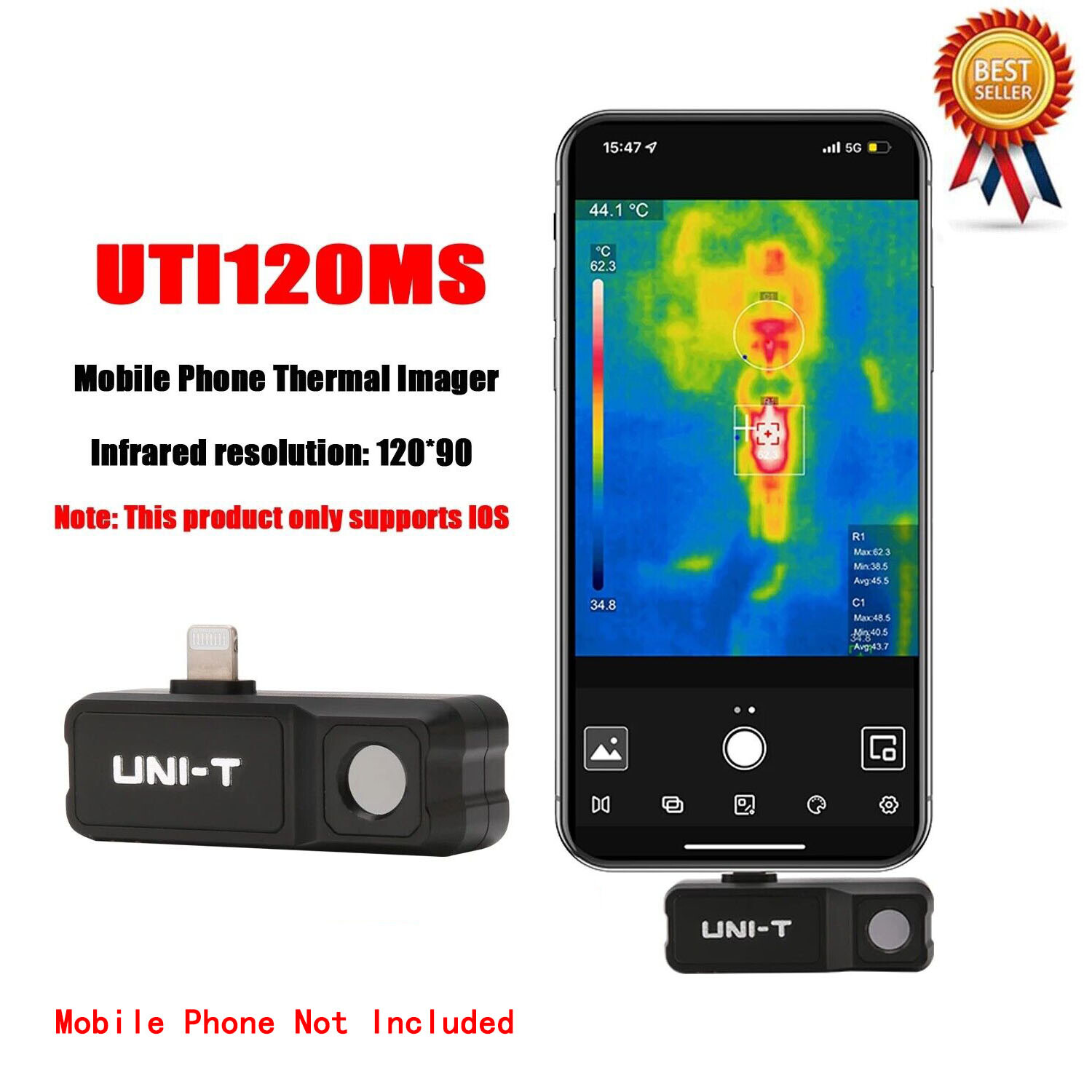

UTi120MS Smartphone Thermal Camera

UTi120MS/UTI120Mobile is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. UTi120MS/UTI120Mobile provides clear image with a fast response, and can also detect temperature up to 400℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module.

Features :

1.IR resolution: 120×90

2.Temperature measurement range: -20℃ to 400℃ / -4℉ to 752 ℉

3.Auto alarm for high/low temperature

4.Auto tracking for hot spot/cold spot

5.On display screen analyzer: 6 Points/6 Lines /6 Rectangles/6 Circles

6.Image capture

7.Video recording

8.Image modes: Thermal, Fusion, PIP

9.Color palettes: 7 (White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)

10. UTI120MS Phone:IOS

11.1m extension cable

12.2m drop proof

model

UTi120MS

model

UTi120MS

Infrared resolution

120×90

Analysis object

Point, line, circle, rectangle (up to six)

Temperature measuring range

-20℃～400℃

colour disk

Seven species

Output frame rate

≤25Hz

Take pictures/videos

have

Response band

8-14μm

picture in picture

Display mobile phone camera and infrared picture at the same time.

Pixel size

17μm

High and low temperature tracking

Tracking the highest/lowest temperature points in real-time thermal images

NETD

＜60mK

High and low temperature alarm

Customizable temperature

viewing angle

50°×38°

Picture editing

You can edit the pictures saved after shooting, but the editing function of video is not supported.

Focusing mode

Focus-free

Image data interface

USB（Lightning）

Temperature measuring function

Center, highest temperature, lowest temperature

Working temperature

0℃~45℃

Temperature measurement accuracy

Temperature above -10℃, accuracy 2% or 2℃ (take the maximum value, ambient temperature 25℃)

Storage temperature

-20℃~65℃

Temperature measuring unit

C/F

relative humidity

10% to 85%, non-condensing

Temperature measurement resolution

0.1℃

height

2000 meters

Emissivity setting

0.1~1.00 adjustable

fall/drop off

1 meters

Attention

1. Custom Tax Policy

●The policy of customs clearance may differ from each country.

●We are not responsible for any applicable customs charge, taxes and duties.

●Import duties and taxes are buyer's responsibility.

●Please check with your country's customs office to determine what these additional costs will be prior to offerding/ buying.

2.Battery:

● The standard package don't include batteries. Because,the international air shipping foroffer to ship liquid,powder and batteries, we can not put them in the package box. Hope you can understand buy them in your local store or supermarket.

3.Please be sure to provide the correct recipient information, including the recipient's full name(or company name), phone number. If you are unable to provide it, please cancel the order by yourself

4.If you find that the instrumentation products are not accompanied by user manuals, please contact me for buyers from Korea, please inform your PCCC number + name (in Korean) + TEL ( Which number you registering your PCCC fill in )after purchase. Otherwise the parcel may not be sent out properly.
