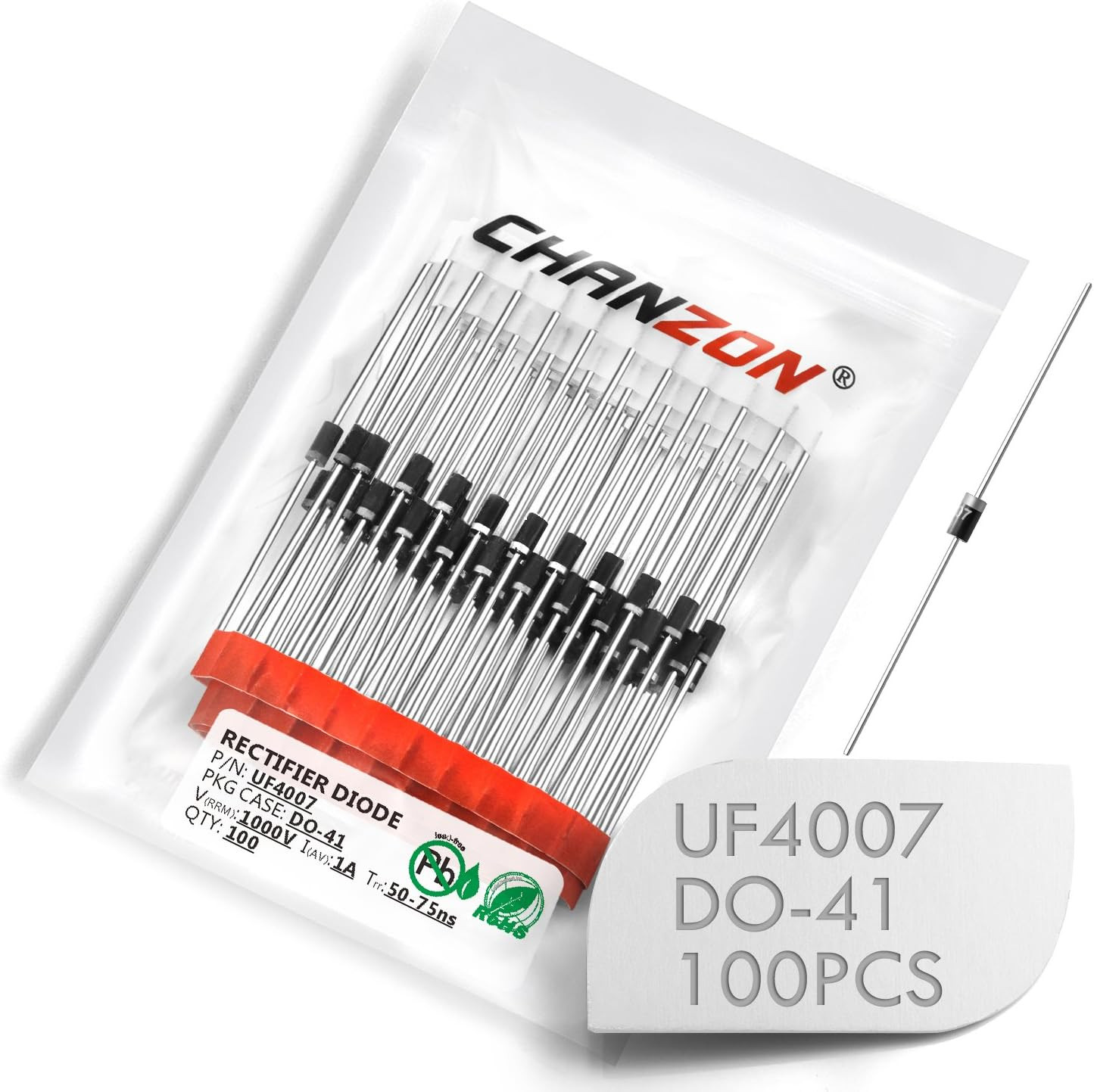

UF4007 Ultra Fast Recovery Rectifier Diode 1A 1000V 50-75Ns DO-41 | For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

UF4007 Ultra Fast Recovery Rectifier Diode 1A 1000V 50-75Ns DO-41 |:
$16.95

Please refer to image 2-7 for the specification datasheet.Product Type: RECTIFIER DIODEBrand: ChanzonPart Number: UF4007Package Case: DO-41QTY: 100

Note:

Pack in a ESD Bag with Main Specs Label, for Long Time Protection and Indetification.

• Part Number: UF4007 / Forward Current : 1 A / Maxixum Repetitive Peak Reverse Voltage : 1000 V
• Lead-Free / RoHS Compliant Electronics Component / Through Hole
• High Forward Surge Current Capability / High Temperature Soldering / Fast Switching for High Efficiency
• See Picture 2-7 for Specifications Datasheet
• Pack in a ESD Bag with Main Specs Label, for Long Time Protection and Indetification.

---

---

---

UF4007 Ultra Fast Recovery Rectifier Diode 1A 1000V 50-75Ns DO-41 |

$16.95

---

UF4007 Ultra Fast Recovery Rectifier Diode 1A 1000V 50-75Ns DO-41 |

$14.50

---

UF4007 Ultra Fast Recovery Rectifier Diode 1A 1000V 50-75Ns DO-41 |

$16.90

---
