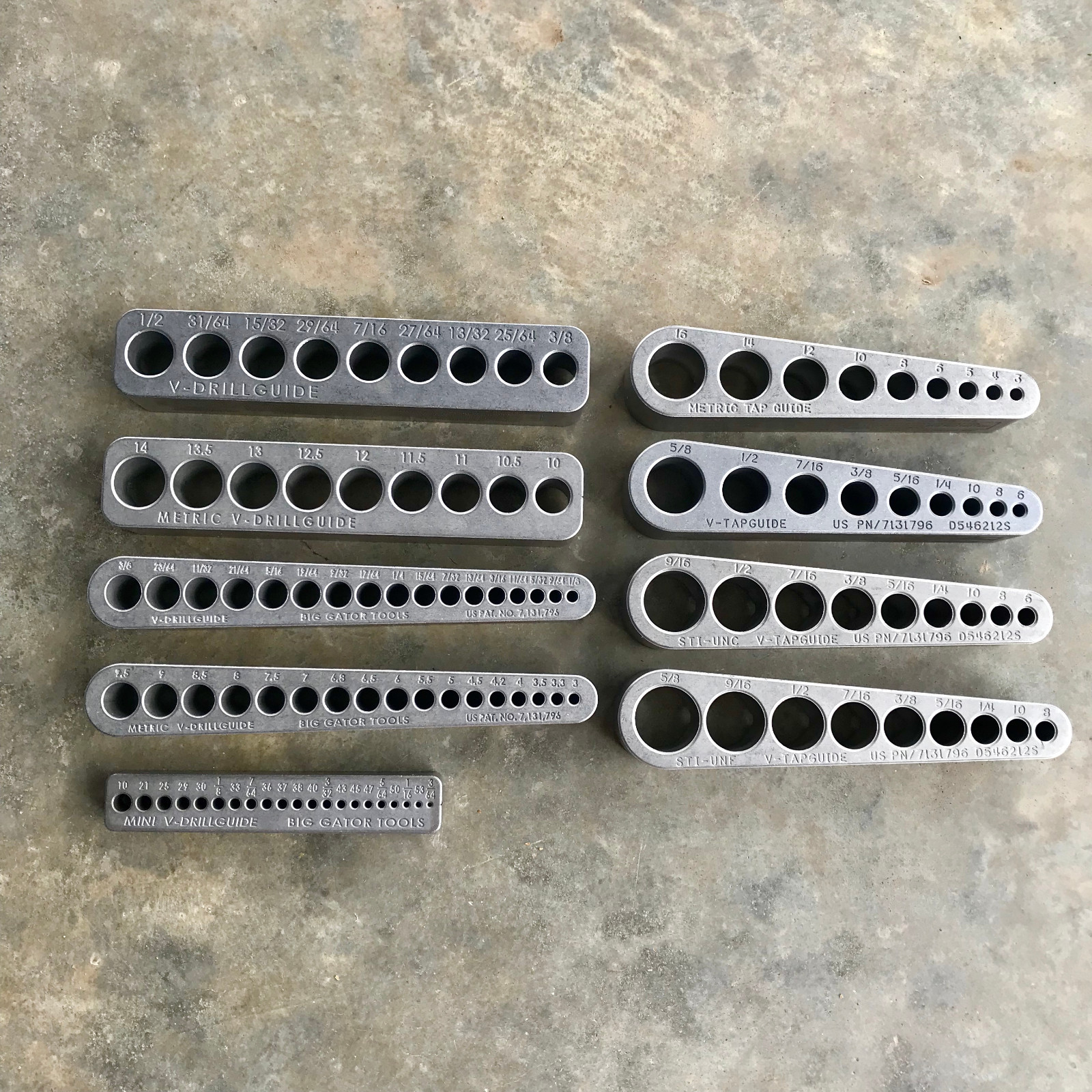

The Ultimate Big Gator Set - 9 Piece Set - 5 Drill Bit Guides & 4 Tap Guides:
$189.95

Big9 Set - Complete set of the Big Gator Tools line

The drill guides are like having a drill press for precision alignment, while the tap guides start every hole straight and helps prevent tap breakage! All the guides have a \"v-groove\" on the bottom to allow you to work on corners or round surfaces. Each guideis heat-treated for durability, allowing a tight tolerance. The guides work great on corners, round and flat surfaces.100% American made quality and a Lifetime Warranty on every guide!

Order includes:

9guides (5 drill guides, 4 tap guides)
9corresponding hanger tubes

Set includes: one Standard V-DrillGuide® - (3/8-1/2\"), one Metric V-DrillGuide®(10 - 14mm),one Standard V-DrillGuide® - (1/8-3/8\"), one MINI V-DrillGuide, one Metric V-DrillGuide® 3-9.5mm, one Standard V-TapGuide®, one Metric V-TapGuide®, one STI-UNC V-TapGuide® (coarse threads) and one STI-UNF V-TapGuide® (fine threads).

Detailed information about each guide below:

Standard V-DrillGuide® - STD2000DGNP

Drill guide is sized for drill bit sizes: 3/8 to 1/2\". 9 drill sizes - 1/64\" increments. 9 drill sizes include: 3/8, 25/64, 13/32, 27/64, 7/16, 29/64, 15/32, 31/64,1/2\".

MetricV-DrillGuide® - MDG2000NP

Drill guide is sized for drill bit sizes: 10 - 14mm. 9 drill sizes - 10, 10.5, 11, 11.5, 12, 12.5, 13, 13.5, 14mm.

Standard V-DrillGuide® - STD1000DGNP

Drill guide is sized for drill bit sizes: 1/8 to 3/8\". 17 drill sizes - 1/64\" increments.17 drill sizes include: 1/8, 9/64, 5/32, 11/64, 3/16, 13/64, 7/32, 15/64, 1/4, 17/64, 9/32, 19/64, 5/16, 21/64, 11/32, 23/64, 3/8\".

MINI V-DrillGuide® - SDGMINI

Drill guide has 21 holes.Drill sizes include:#10, 21, 25, 29, 30, 1/8\", 33, 7/64\", 36, 37, 38, 40, 3/32\", 43, 45, 47, 5/64, 50, 1/16\", 53, 3/64\".

MetricV-DrillGuide® - MDG1000NP

Metric drill guide is sized for 17 drill bit sizes: 3, 3.3, 3.5, 4, 4.2, 4.5, 5, 5.5, 6, 6.5, 6.8, 7, 7.5, 8, 8.5, 9, 9.5mm.

Standard V-TapGuide® - STD500NP

Standard V-TapGuide® has 32 Standard Ground Tap Sizes: 0-80, 1/64, 1-72, 2-56, 2-64, 3-48, 3-56, 4-36, 4-40, 4-48, 5-40, 5-44, 6-32, 6-36, 6-40, 8-32, 8-36, 8-40, 10-24, 10-32, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20, 5/8-11, 5/8-18\". (Tap guide does cover tap sizes 0-80 to 5/8, except #12 and 9/16.0-80 to #6have the same size shank, so only one hole size is needed.)

Metric V-TapGuide® - MTG500NP

13 Metric Ground Tap Sizes: 1.6, 2, 2.5, 3, 3.5, 4, 5, 6, 8, 10, 12, 14, 16mm.

STI-UNC V-TapGuide® - STI-UNC100SNP

10 Unified Coarse Thread sizes: 9/16-12, 1/2-13, 7/16-14, 3/8-16, 5/6-18, 1/4-20, 12/24, 10-24, 8-32, 6-32\". This guide is for Screw Thread Insert (STI) type ground taps. Used mostly for thread repair jobs. This guide is for Heli-coil® type ground coarse thread taps.

STI-UNF V-TapGuide® - STI-UNF200SNP

9 Unified Fine Thread sizes: 5/8-18, 9/16-18, 1/2-20, 7/16-20, 3/8-24, 5/6-24, 1/4-28, 10-32, 8-36\". The V-TapGuide® isfor Heli-coil® type ground fine thread taps.

Engineered to be the Most UniversalTap and Drill Guides in the World!!

100% Made in the U.S.A.

Tap and drill guidesby BigGator Tools™are manufactured in an ISO 9001:2000 certified facility

out of steel that is ground and heat-treated for durability.

The guide holes are smooth, unlike drilled or reamed holes.

Tap Guide holes are sized for ANSI Standard Ground Taps.

FEATURES

· Automatically squares up the tapor drillwith the surface.

· V-groove along the bottom of the guides allows for perpendicular alignment

with all tap and drill sizes on round parts or corners.

· Natural steel finish, non-plated.

· Portable, pocket-sized.
