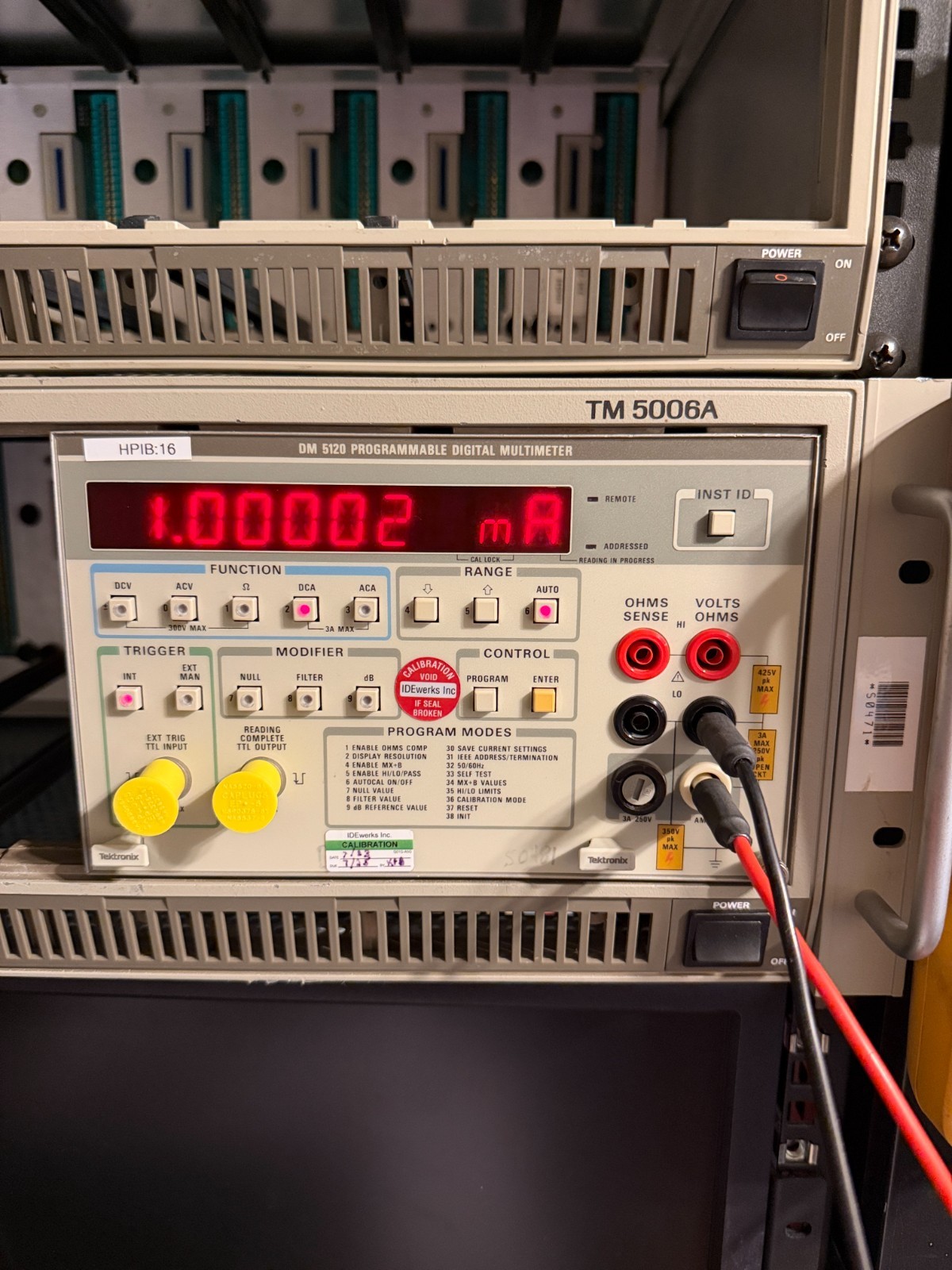

Tektronix DM5120 6-1/2 digit DMM for TM5000 Mainframe:
$450.00
The Tektronix DM5120 is a programmable 6½-digit multimeter plug-in for the TM5000 system.Key Specifications:Resolution ±3,029,999 counts (6½ digits) in DC Volts and Ohms, 5½ digits otherwise in fast modeVoltage ranges 300 mV to 300 V in decade steps, DC or ACInput Impedance (DC Volts) 300 mV, 3 V: >1 GΩ30 V: 11 MΩ300 V: 10.1 MΩInput Impedance (AC Volts) 1 MΩ // 120 pFCurrent ranges 300 μA to 3 A in decade steps, DC or ACResistance ranges 300 Ω to 300 MΩ in decade steps, 4-wire mode available in 300 Ω to 30 kΩ rangesFeatures True RMS measurement (crest factor ≤3:1)Calibration may be done manually through the front panel or via the GPIB interface.
Tektronix DM5120 6-1/2 digit DMM for TM5000 Mainframe
$450.00
Tektronix DM 5120 / DM 5520 Service Manual: w/11"X17" Foldouts & Plastic Covers
$28.00
Tektronix DM 5120 / DM 5520 Operator Manual: Comb Bound & Protective Covers
$25.00
