Tektronix 2246A 100MHz Oscilloscope Calibrated & Tested:
$199.99

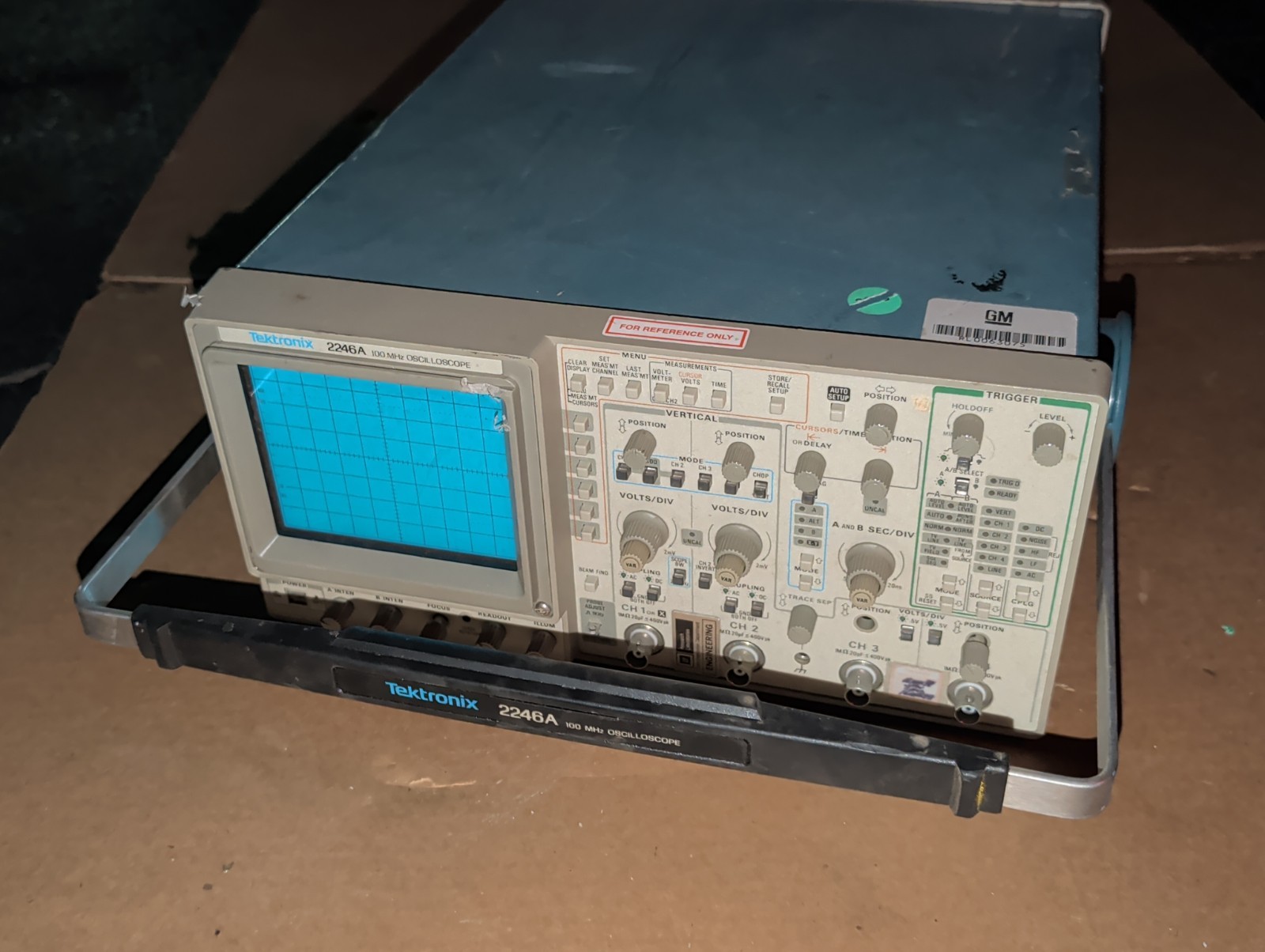

Tektronix 2246A 100MHz Oscilloscope Calibrated & Tested

Tektronix 2246A 100MHz analog oscilloscope designed for electronic signal analysis, troubleshooting, and laboratory testing. This professional bench-top test instrument has been calibrated and tested for operation.

Brand: Tektronix

• Model: 2246A

• Type: Analog Oscilloscope

• Bandwidth: 100MHz

• Condition: Tested and calibrated

Features:

• 100MHz bandwidth

• Designed for electronic signal analysis and troubleshooting

• Suitable for electronics labs, engineering workbenches, and test equipment setups

Condition Notes:

• Tested and calibrated.

• Please review all photos for the exact cosmetic condition.

• Included accessories are limited to those shown in the photos.

Included:

• Tektronix 2246A oscilloscope

• Additional accessories only if pictured

---

---

---
