TTY T1DEEP E-ATX SP3 Motherboard Support EPYC 7002/7003 Rome/Milan CPU:
$819.50

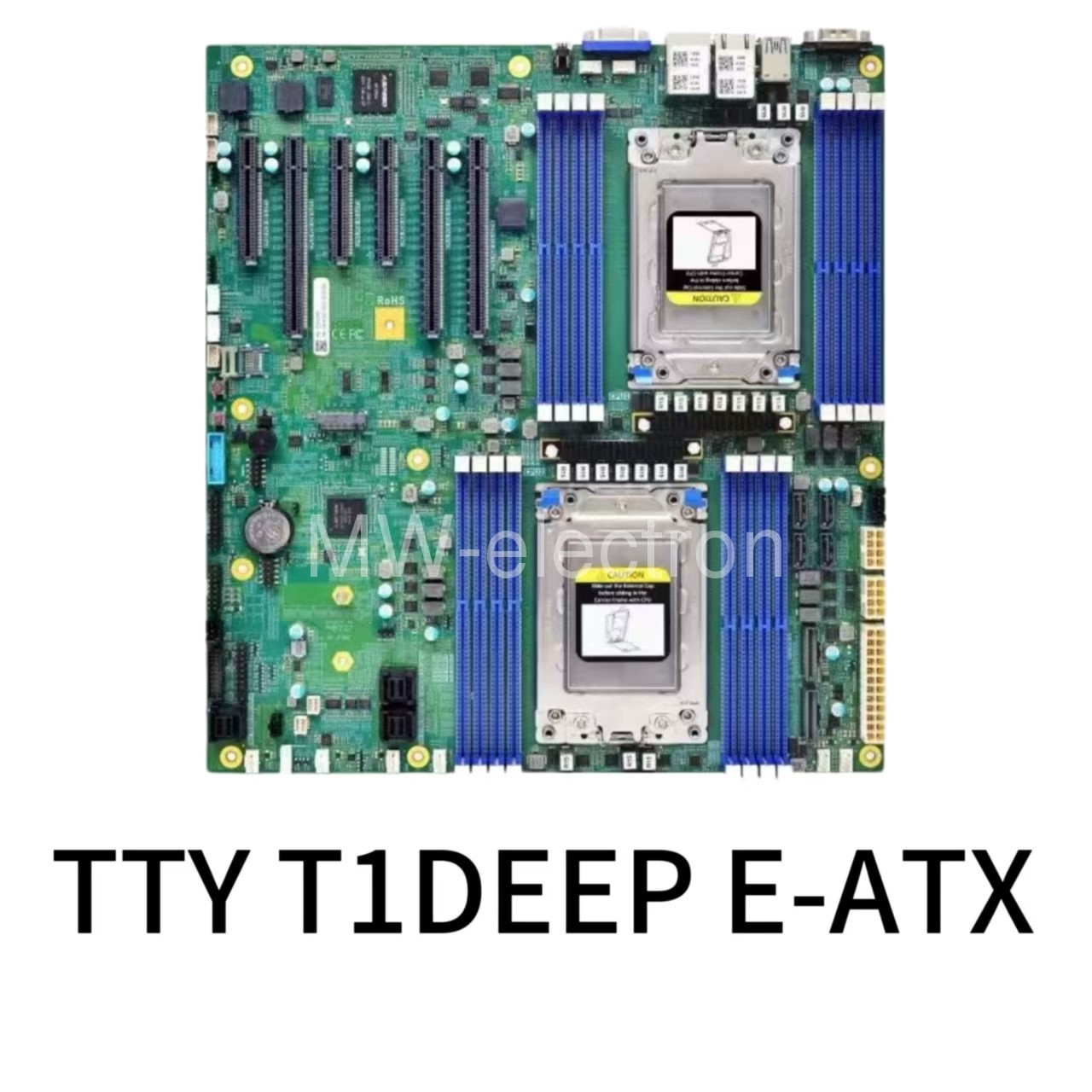

TTY T1DEEP E-ATX

1. Product Overview

The TTY T1DEEP is a dual-socket E-ATX (EEB) enterprise server motherboard developed by TTY (Tongtaiyi). It adopts the AMD SP3 platform and fully supports AMD EPYC 7002 (Rome) / 7003 (Milan) series dual processors. Featuring massive memory capacity, full PCIe 4.0 expansion, comprehensive high-speed storage interfaces and professional BMC remote management, it delivers outstanding computing performance, scalability and 24/7 stability. This model is widely applied in cloud computing, virtualization, big data, AI computing, HPC, enterprise storage and mission-critical server scenarios.

2. Core Hardware Specifications

2.1 Processor & Interconnection

- Socket: Dual Socket SP3 (LGA 4094)
- Supported CPUs: 2 × AMD EPYC 7002 / 7003 Series Processors
- Max CPU Spec: Single CPU up to 64 cores / 128 threads, max TDP 280W
- Interconnect: 4 × XGMI high-speed links between dual CPUs for efficient data exchange

2.2 Memory System

- DIMM Slots: 16 × 288-pin DDR4 DIMM slots, supporting 8-channel DDR4 architecture
- Memory Speed: Up to DDR4 3200MHz (3200MT/s)
- Memory Type: Supports ECC RDIMM / LRDIMM / 3DS RDIMM
- Max Capacity: Up to 4TB total system memory (256GB per DIMM)

2.3 PCIe 4.0 Expansion

Total 6 × PCIe 4.0 expansion slots for flexible configuration:

- 3 × PCIe 4.0 x16 slots
- 3 × PCIe 4.0 x8 slots
- Compatible with GPU cards, RAID controllers, high-speed NICs and other add-on cards

2.4 Storage Interfaces

- M.2 Slot: 1 × M.2 (M-key, PCIe 4.0 x4), supports 2280 / 22110 NVMe SSDs
- SlimSAS: 2 × SlimSAS x8 connectors, supports up to 4 × U.2 NVMe devices
- SATA III: 12 × onboard SATA 3.0 (6Gbps) ports for HDDs and SATA SSDs
- Supports mixed deployment of NVMe high-speed storage and large-capacity SATA storage

2.5 Networking

- 2 × 1GbE RJ45 LAN ports for mainstream network access
- 1 × Dedicated IPMI Management LAN port for independent out-of-band management

2.6 BMC & Remote Management

- BMC Controller: ASPEED AST2500
- Management Protocol: Full IPMI 2.0 compliant
- Remote functions: KVM-over-LAN, Virtual Media, hardware status monitoring, fault alarm
- Integrated BMC VGA for local console display
- TPM 2.0 header: Supports TPM 2.0 module for hardware security and system encryption

2.7 Power & Thermal

- Power Connectors: 1 × 24-pin ATX + 2 × 8-pin ATX 12V power interfaces
- Fan Headers: 8 × 4-pin PWM fan headers, intelligent speed regulation and temperature monitoring
- Over-temperature protection, chassis intrusion detection, redundant circuit design for enhanced stability

2.8 Rear I/O Ports

- 1 × VGA port
- 2 × USB 3.2 Gen1 Type-A ports
- 2 × 1GbE RJ45 LAN ports + 1 × IPMI MLAN port
- 1 × COM (Serial) port
- 1 × System ID button with LED indicator

2.9 Form Factor & Environment

- Form Factor: E-ATX / EEB
- Dimensions: 330 mm × 305 mm (13.0\" × 12.0\")
- Operating Temperature: 10°C ~ 35°C
- Relative Humidity: 8% ~ 90% (non-condensing)

3. Key Advantages

1.Dual-Socket High Performance: Dual AMD EPYC CPUs + 4 XGMI links, delivering extreme multi-core computing power for heavy workloads.
2.Ultra-Large Memory: 16 DDR4 slots + 8-channel architecture, supporting up to 4TB memory for virtualization and big data processing.
3.Full PCIe 4.0 & Rich Storage: 6 PCIe 4.0 slots + M.2 + U.2 NVMe + 12 SATA III, meeting diversified storage and expansion demands.
4.Enterprise-Grade Reliability: Complete IPMI remote management, intelligent thermal control, redundant design, supporting 24/7 continuous operation.
5.High Cost Performance: Ideal replacement for mainstream dual-socket AMD EPYC motherboards, balancing performance and cost-effectiveness.

4. Typical Applications

- Cloud servers & virtualization hosts
- High-Performance Computing (HPC) & scientific simulation
- Enterprise database & big data analysis servers
- AI training & inference platforms
- Large-capacity network storage servers
- Industrial control and long-running enterprise servers
