TPS61040QDBVRQ1 Boost Converter, 1.8-6V, 400mA , SOT-23, Texas Instruments For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

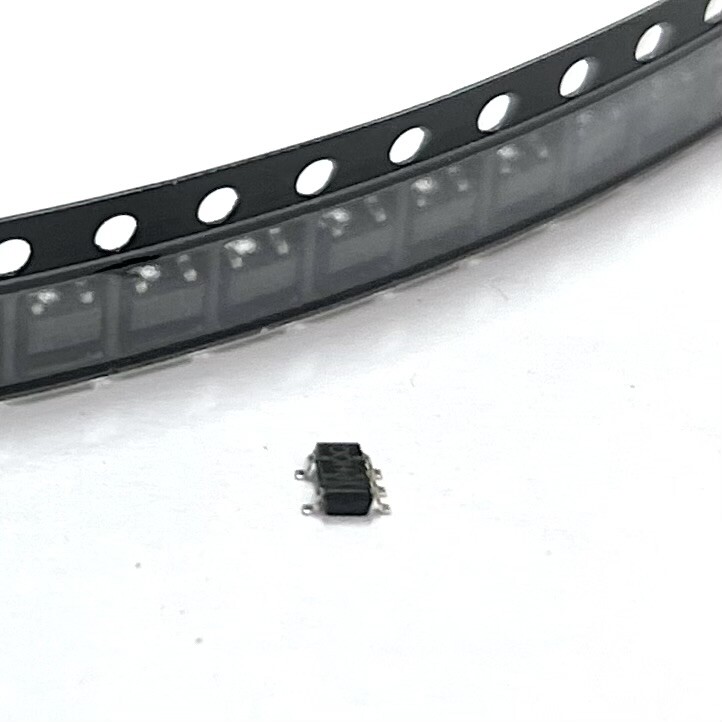

TPS61040QDBVRQ1 Boost Converter, 1.8-6V, 400mA , SOT-23, Texas Instruments:
$0.99

Single Item, Package of 1.Low-Power surface mount (SMD/SMT) DC-DC boost converter in SOT-23-5 package. Features an adjustable output range up to 28 V and 400 mA internal switch current.
SMD Case \"PHOQ\"Combined shipping available for quantities > 1.Manufacturer: Texas Instruments
Manufacturer Part Number: TPS61040QDBVRQ1
Series: TPS61040-Q1
Product Category: Switching Voltage Regulators
Number of Outputs: 1
Supply Voltage - Min: 1.8 V
Supply Voltage - Max: 6 V
Voltage Output: 1.8 V to 28 V
Current -Output / Channel: 400mA (Switch)
Frequency: 1 MHz
Package / Case: SOT-23-5
Power Dissipation: 357 mW
Minimum Operating Temperature: -40ºC
Maximum Operating Temperature: +125ºC
RoHS: Yes
Packaging: Cut Tape; Antistatic

---

---

---

TPS61040QDBVRQ1 Boost Converter, 1.8-6V, 400mA , SOT-23, Texas Instruments

$0.99

---
