TOA Impedance Meter ZM-104A Speaker Line Impedance Tester Meter Type For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

TOA Impedance Meter ZM-104A Speaker Line Impedance Tester Meter Type:
$363.00

Our products are 100% authentic No Extra Charges at Delivery

We ship DDP (Delivered Duty Paid) to every destination. All customs duties, import taxes, and handling fees are prepaid by us, so you normally pay nothing extra when your parcel arrives.

In rare cases a local carrier may still collect a small administrative fee that is outside our control. Please contact us if this happens.

Description

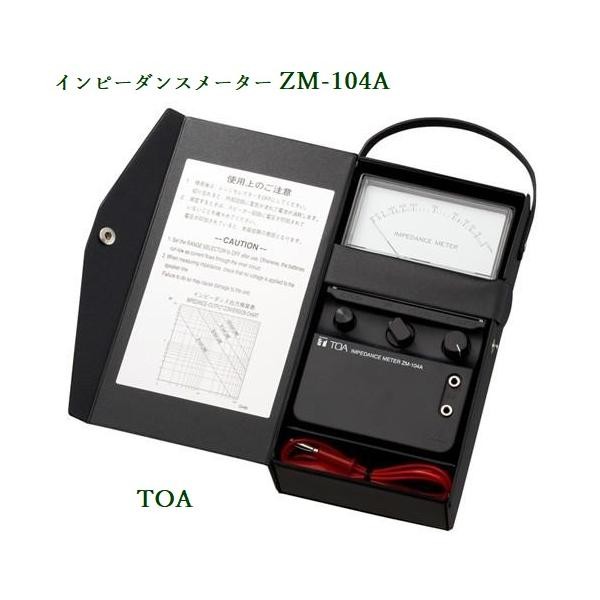

TOA Impedance Meter ZM-104A Speaker Line Impedance Tester Meter Type

TOA impedance meter ZM-104A. It lets you check an estimate of speaker line impedance with an operation similar to the resistance measurement of a tester. Power: 4 AA batteries (DC 1.5V x 4), current consumption 39mA. Direct reading on a meter in ohms. Ranges: x1 5 ohm-1 kohm, x10 50 ohm-10 kohm, x100 500 ohm-100 kohm. Oscillation frequency 1kHz +/-10%. Continuous use: 30 hours on x1, 60 hours on x10 and x100. Operating temperature -5 to +40 C. Dimensions: 120W x 220H x 63D mm with the storage case, 110W x 180H x 58D mm body only. Black ABS resin finish. Mass 700g including the case, without batteries. Includes a set of tester leads. Measurement category CAT I.

Measurements (approx.)

Case 120 x 220 x 63mm (4.7 x 8.7 x 2.5in), body 110 x 180 x 58mm (4.3 x 7.1 x 2.3in), weight 700g

Condition — pre-owned

Condition: Unused item. Please review all photos to confirm the condition before purchase.
