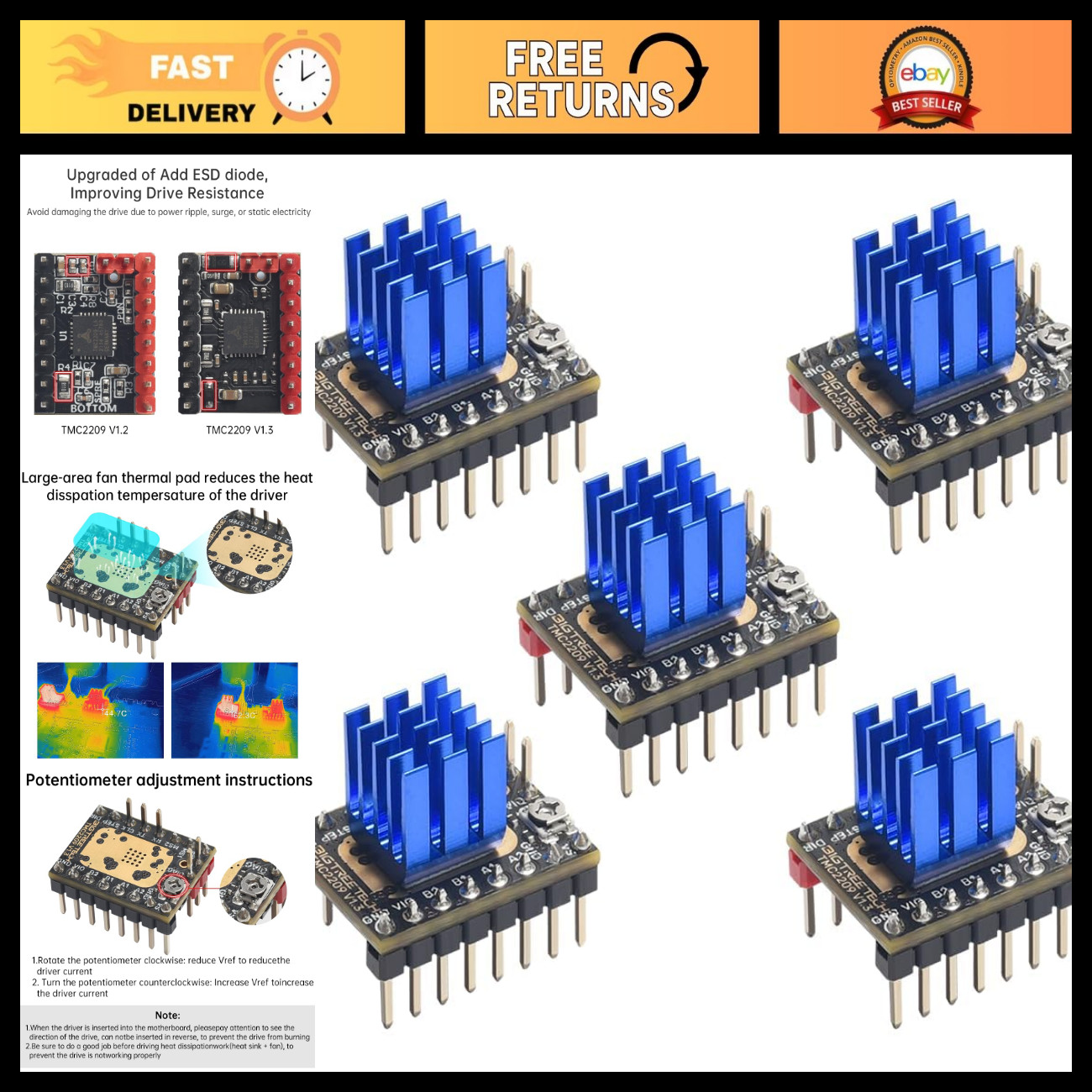

TMC2209 V1.3 Stepper Motor Driver - UART/Step/DIR Mode, High Precision Control:
$48.59
Ultra-Silent Stepper Motor Driver: TMC2209 V1.3 Experience unparalleled performance with the TMC2209 V1.3 stepper motor driver, designed to enhance your 3D printing experience. This advanced driver utilizes StealthChop2 technology for ultra-silent operation, making it ideal for noise-sensitive environments.
Key Features:- Ultra-Silent Operation: Enjoy quiet motor performance with StealthChop2 technology.
- Powerful Current Handling: Continuous current of up to 2.0A (peak 2.8A) and voltage range from 4.75V to 28V.
- Flexible Step Modes: Operates bipolar stepper motors in 1 to 1/256 step modes for precise control.
- UART and STEP/DIR Mode Support: Easily switch between modes with firmware modifications; detailed tutorials available on GitHub.
- Sensorless Homing: Utilizes Stallguard4 technology to detect motor current changes, allowing for accurate end-of-stroke detection without limit switches.
- Wide Compatibility: Compatible with most 3D printer motherboards, including BTT Octopus, SKR Turbo, Manta series, and more. A perfect replacement for non-silent drivers like TMC2100, A4988, DRV8825, and LV8729.
- Smooth Operation: PWM chopper mode ensures smooth motor control, effectively preventing step loss and jittering for better print quality.
The manual and installation instructions are readily available on GitHub. For any questions or issues during use, please reach out for assistance.
TMC2209 V1.3 Stepper Motor Driver - UART/Step/DIR Mode, High Precision Control
$48.59
BIGTREETECH TMC2209 V1.3 Stepper Motor Driver, 2.8A UART/DIR/Step Mode
$32.22
TMC2209 V1.3 Motor Driver Module UART Adjustable Firmware 256 Step Resolution
$47.89
