TDA2030A TDA2030 Mono 15W 12V AC/DC Audio Amplifier Board One-channel For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

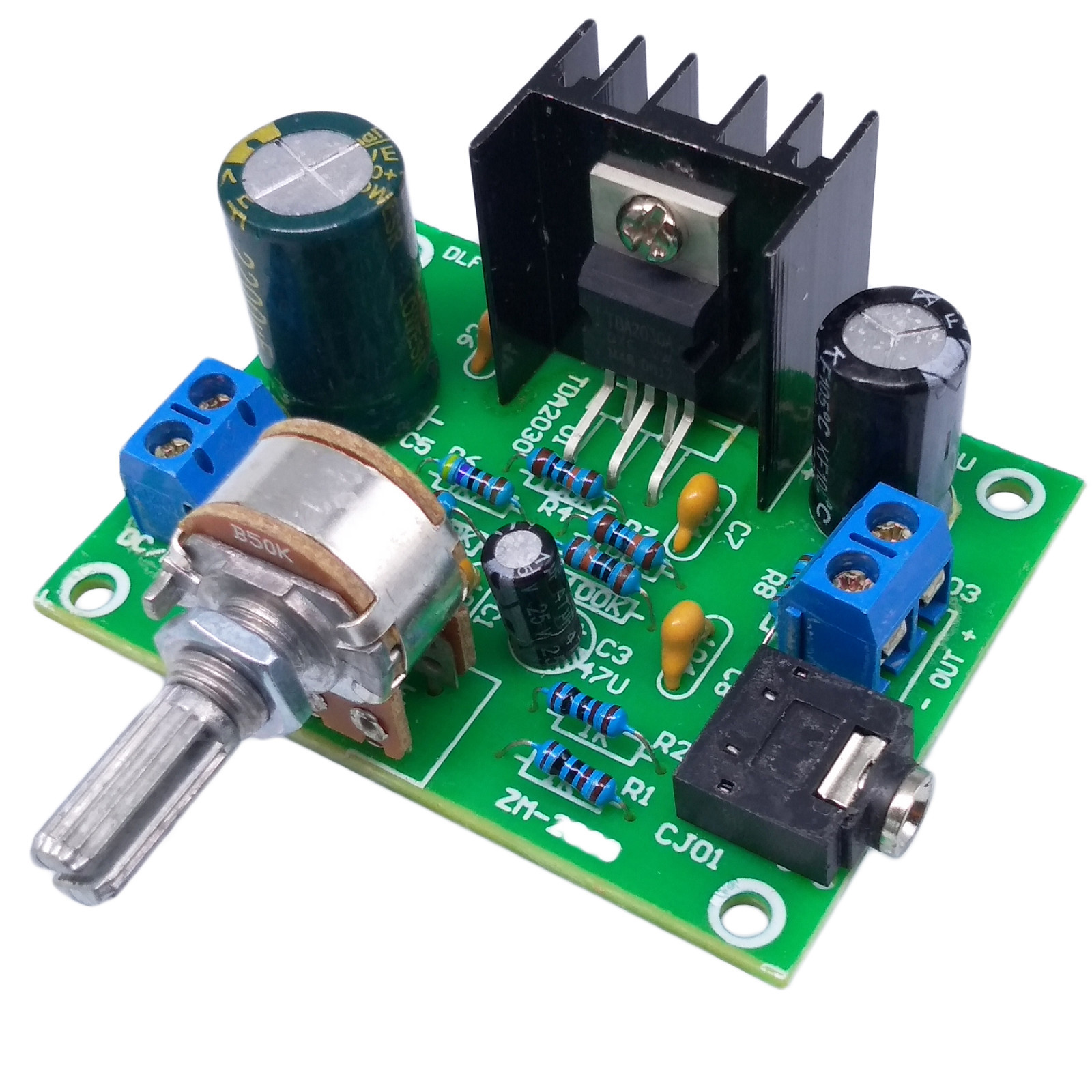

TDA2030A TDA2030 Mono 15W 12V AC/DC Audio Amplifier Board One-channel:
$10.63

New TDA2030A TDA2030 Mono 15W 12V AC/DC Audio Amplifier Board One-channel

OutputPower: 10-15W,
Frequency Range: 20Hz-20KHz
Scope: Input AC/DC 9-15V Voltage
Current:> 1A (Or >15W)
Distortion: <0.1% at 1W
Signal To Noise Ratio: >70dB
Isolation: >50dB
Net weight: 38g
Suggest:
Horn selected: 2.5-4 ", 5-20W, Impedance 4-8 Europe Full Frequency Loudspeaker
Finished Plate: 60*47*32mm(L*W*H)(Include The Radiator,But Not containing potentiometer handle specifications)

---

---

---

TDA2030A TDA2030

$6.52

---

2PCS 18W AUDIO Hi-Fi AMPLIFIER ST TO-220 35W TDA2030A TDA2030AV IC

$3.20

---

TDA2030A TDA2030 Mono 15W 12V AC/DC Audio Amplifier Board One-channel

$10.63

---
