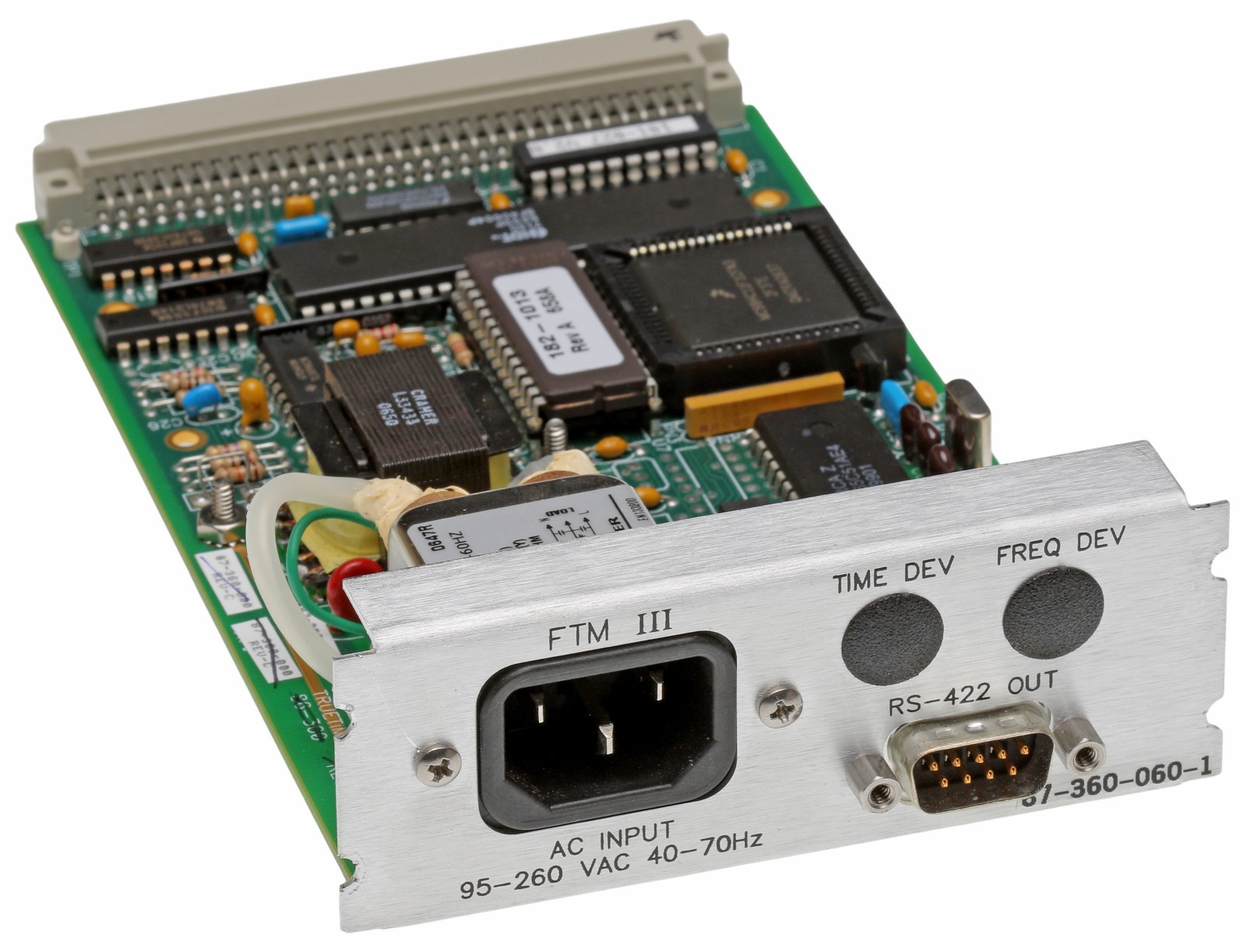

Symmetricom 87-360-060 XL-DC FTM III AC Line Frequency Measurement Monitor Card:
$176.40

Tested/Guaranteed • Removedfrom Working XL-DC Unit • Part 87-360-000 • FTM AC LineFrequency Measurement • Time Monitor • Was$1,295•Used, Very Good Condition

Photos show the actual item forsale

This was removed from a working XL-DC unit within whichit was recognized by the firmware and it offered the abilityto set both the large and small LCD displays to show theresults of the AC frequency measurement. It is not thoughtto be compatible with devices other than the - Frequency and Time Deviation MonitorThis plug-in card meets the specific needs of the electricalpower industry. It provides a digital display and computercompatible outputs of the following parameters:

Frequency Deviation – The instantaneous difference betweenthe locally generated frequency (typically 50 or 60 Hz) andthe precision frequency of the host Synchronized Clock.
System Frequency – The user’s locally generated frequency.
Time Deviation – The accumulated difference in timebetween a clock locked to the locally generated frequencyand the precise time of the Synchronized Clock.
System Time – (Hours, minutes and seconds) as defined by aclock running off the user’s locally generated frequency.
Local Time – Local corrected UTC time seconds throughdays. Both the display port and the communication port haveuser-selectable baud rates, parity and the number of databits and stop bits.

The monitored frequency and time deviation values areavailable via the front panel display(s), the communicationport, and the remote display driver RS-232 port.

GENERAL SPECIFICATIONS

Measurement input: 95–260 VAC, 40–70 Hz; user-selectable50 or 60 Hz operation.
Signal conditioning: RFI input filter; multistage low-passfilter. Line fused; varistor protected 2500 VAC rmsisolation. Transformer coupled.
Remote display port: RS-232. Each output term hasindividual address codes.

FREQUENCY DEVIATION

Current deviation of the measurement input frequency fromthe nominal frequency (50 or 60 Hz).Measurement Sample Rate:1 sample per second Range: ±9.999 Hz Measurement resolution:30 μHz. Output data resolution: Resolution to 1 mHz

TIME DEVIATION

Accumulated time drift due to user’s local frequencydifference as compared to the host clock. The user can enteran initial time offset.
Measurement sample rate: 1 sample per second Range:±99.999 seconds Measurement resolution: 500 nS Output dataresolution: 1 mS
Time offset input: ±99.999 seconds maximum. Entry viakeypad or communication port.

SYSTEM FREQUENCY
