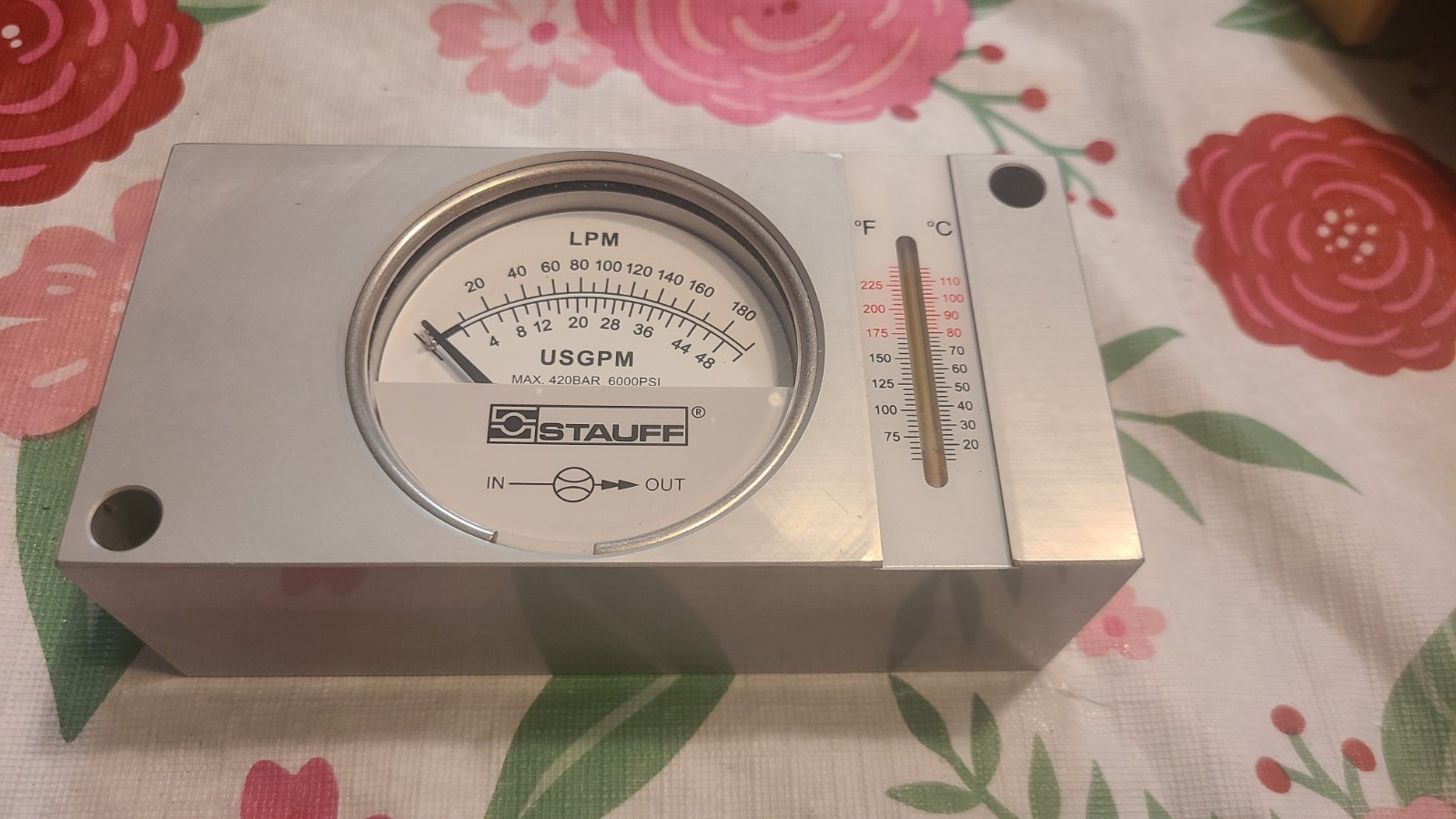

Stauff SDM-750N-A-180-T High Pressure Flow Indicator 3/4" NPSF For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Stauff SDM-750N-A-180-T High Pressure Flow Indicator 3/4" NPSF:
$1300.00

High pressure flow indicator with thermometer.

Flow Indicator Housing Material: Aluminium Flow Range: 10-180l/min max. Working Pressure 6091 PSI

Stauff part number 1910003519

Analog flow indicators for measuring the flow rate of fluids in mobile and industrial hydraulics. The SDMKR is designed with a loading valve for the strain test of the hydraulic system to facilitate precise control of the operating pressure. In addition, this product can also be subjected to a reverse flow direction.

Suitable for Mineral Oil (Aluminum), HFC Fluids and Water (Brass)

Designed for in-line installation

Mechanical flow measurement

Controlling working pressure with a pressure control valve (only SDMKR)

Flow indication in l/min and GPM for Aluminum units, Brass units have flow indication for Water and Oil both in l/min

Aluminum unit: Dual scale

Brass unit: Single scale

Thread to connect with pressure gauge (only SDM)

Functional Principal Flow Measuring

The flow indicators SDM and SDMKR have a sharp-edged orifice and a tapered metering piston, which moves in proportion to changes of flow against a spring. In no flow condition the piston closes the opening and the pointer indicates zero.

With increasing flow and differential pressure the piston moves against the calibrated spring. The piston movement is directly proportional to the flow rate and is magnetically coupled to the rotary pointer. During this function the sharp-edged orifice minimizes the effects of viscosity. The flow is shown on a calibrated scale in l/min and gal/min.

Technical information

Accuracy (at a kinematic viscosity of 28cSt):

Flow: ±4% FSD

Temperature: ±2,5°C (±5 °F)

Pressure (only SDMKR): ±1.6% FS

Temp. measuring range: +20°C to +110°C (+55°F to +245°F)

Media temperature permanent: +80°C (+176°F), temporary (<10 min.): +110°C (+245°F )
