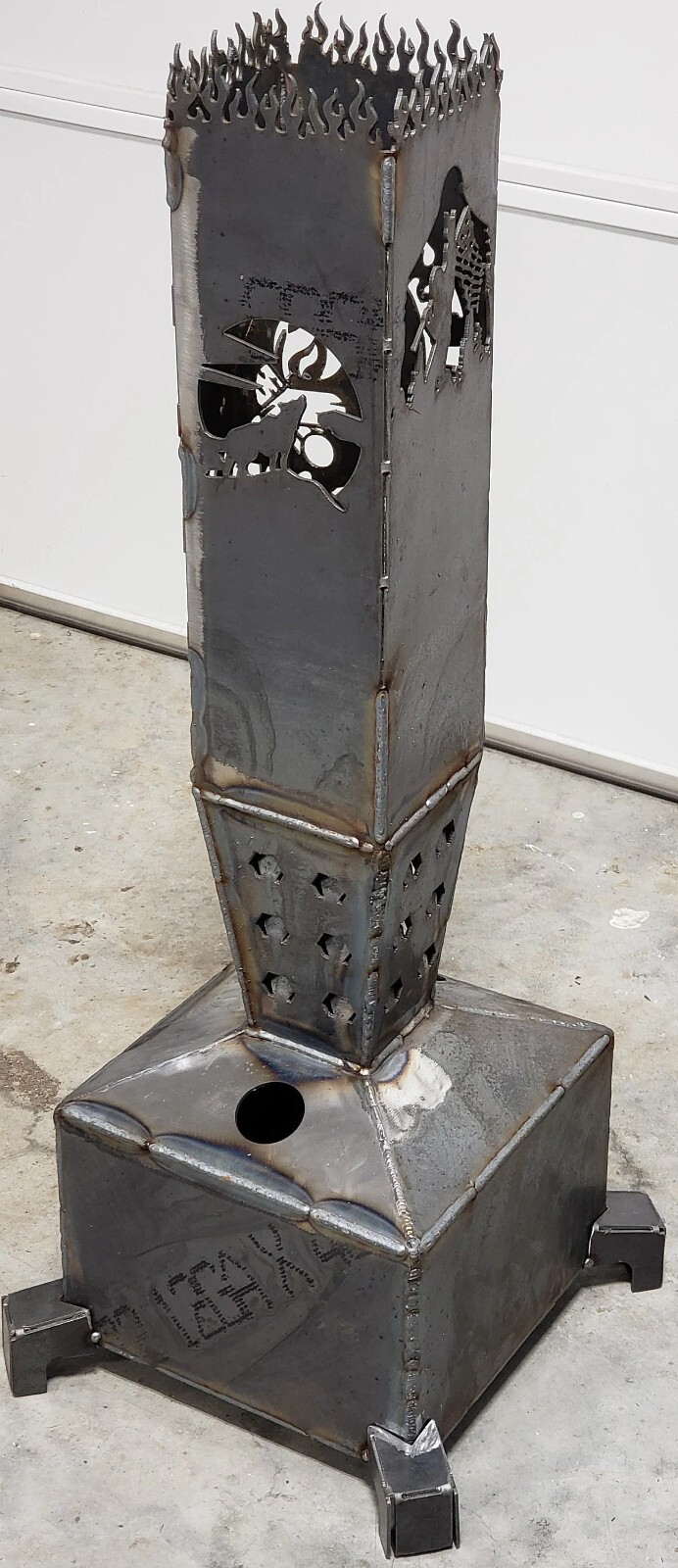

Smudge Pot CNC Plasma DXF Cut Files - Files will be mailed USPS on a Flash Drive:
$25.00

This smudge pot DXF/SVG file is clean and ready for your CNC table! You don't need a sheet metal brake (it does help, though) for bends, as the design has reliefs that allow you to easily break over the edge of your table.
NOW INCLUDED! - Snuffer (guillotine, as some call it) files for killing the fire at the base of the flue, as well as flanges for the flue and return tube to bolt on for easy cleaning and maintenance of the base.
UPDATED FILE - The V2 includes a damper and flanges to dial in the heat in the base!
What a great way to enjoy your chilly evenings with your friends and family! You can burn waste oil, kerosene and diesel fuel (not gasoline!!) in this smudge pot. Once the fire in the box gets to burning good and hot, there is virtually no smoke from the flue pipe during the burn. Once you kill the fire with the damper, the fire will stop and it will smoke some out of the stack; however, using kerosene and diesel fuel, the smoke will not be nearly as bad. This is a great alternative to a wood burning fire, as there are no sparks or smoke emitted, only flame and heat, and it is extremely easy to kill the fire when you are ready to, unlike an open wood burning fire pit.
This is a very portable design - one person can easily lift and move the pot (when not hot!) when empty, and two people can easily lift and move the pot when full!
Approximate Size: 15-1/2" (with feet) square base x 38" (with feet) tall, holds ~5 gallons! <-- Check out our other listing for a larger size that holds approximately 12 gallons!NOW INCLUDED! 12" taller flue pipe (plus original height flue pipe) to make the overall height ~50 inches!
This sale is for a USB Flash Drive containing Digital Files for you to cut your own smudge pot out of steel or stainless steel. It is recommended to use 16 gauge or thicker material as this will burn hot and a thicker material will reduce likelihood of warping. This file has been used to cut hundreds of smudge pots.
This Digital File INCLUDES relief cuts for bending to allow you to easily bend all lines without the need for a sheet metal brake or other means of bending. You can do the bending by hand! This has been tested with 16-gauge steel with no issues. The feet will require a little more effort to bend but can still easily be done on a table with clamps or a vise would work well.
The Digital File will come with the base, flue pipe, and feet nested together. When nested together, these files take up approximately 30” by 53” of a sheet of metal. The damper and handle brackets are also nested within the file. The Digital Files will include additional information for your use in building the smudge pot!
If you do not have a method for bending the tubing, you may use other methods for the return tube, such as building a sheet metal return tube, iron pipe and fittings from your local big box store, etc. If you would like to use tubing and do not have access to a tubing bender, please contact me and I can ship you the bent tubes for this design or any size/design that you need.
There is NO artwork included on the file; however, if you need a custom design, please contact me and I can create a custom file. Also, if you need a different size smudge pot, I can create a new product for you.
*** This is a Digital File only for metal CNC cutting, you will only receive a Digital File on a USB Flash Drive via USPS. NO REFUNDS, please contact me if you have issues ***
This file has been created by the Owner of this shop, who legally owns the content (sometimes called intellectual property). You are welcome to make and sell physical items from the digital files; however, the files themselves are not intended for distribution or resale, and may not be copied, duplicated, or transmitted in any way.
By purchasing, the buyer agrees not to copy, redistribute, or resale the electronic files.
WARNING - Safety Guidelines Intended for Smudge Pot Use:- Fire pits and smudge pots involve open flames. You are responsible to exercise caution for the fire, and be aware of your surroundings, including people, structures, etc.- Do not place smudge pots on wood, grass, etc. that is capable of burning. Smudge pots can overflow onto the placement area causing fire. Only place smudge pots on level ground on surfaces that can withstand flame and heat, that are non-combustible.- Children need to stand clear from the fire, a minimum of 10-feet away.- Always have a fire extinguisher within reach incase of emergencies. Buckets of sand is also suggested to keep at close proximity to help put out the fire.- Regulatory: Not all states, campgrounds, parks, etc. allow smudge pots or fire pits. It is your responsibility to know the rules of which you intend to have the fire, and aoffere by them. You must comply with all National, State, and Local Laws/Regulations regarding fire pit and smudge pot use, especially that of burn bans and restrictions of fire.
■■ LEGAL DISCLAIMER & LIMITATION OF LIABILITYAssumption of Risk: The User acknowledges that smudge pots and fire pits involve openflame, heat, and combustible fuels, and voluntarily assumes all risk of personal injury, death,or property damage arising from use or misuse of the product.Hold Harmless and Indemnification: The User agrees to hold harmless, defend, andindemnify Insandity Fab, LLC, its owners, affiliates, distributors, event hosts, and vendorsfrom any and all claims, damages, injuries, losses, costs, or legal fees arising from operationor possession of the product.Limitation of Liability: In no event shall Insandity Fab, LLC be liable for any direct, indirect,incidental, consequential, or special damages (including property damage, injury, or loss ofincome) arising from use or misuse of this product, even if advised of the possibility of suchdamages.Warranty Disclaimer: Products are provided 'AS IS', without express or implied warranties,including but not limited to merchantability, fitness for a particular purpose, ornon-infringement.Compliance: The User is solely responsible for complying with all national, state, and locallaws, regulations, and burn bans related to fire pit and smudge pot use.No Modification or Resale: This product may not be altered, modified, or resold. Any suchaction voids safety guidance and all liability protections.Jurisdiction: This document shall be governed by the laws of the United States of America. Ifany clause is found invalid, the remainder shall continue in full force and effect.By lighting or operating the smudge pot, you acknowledge that you have read,understood, and accepted all instructions and terms in this document.
