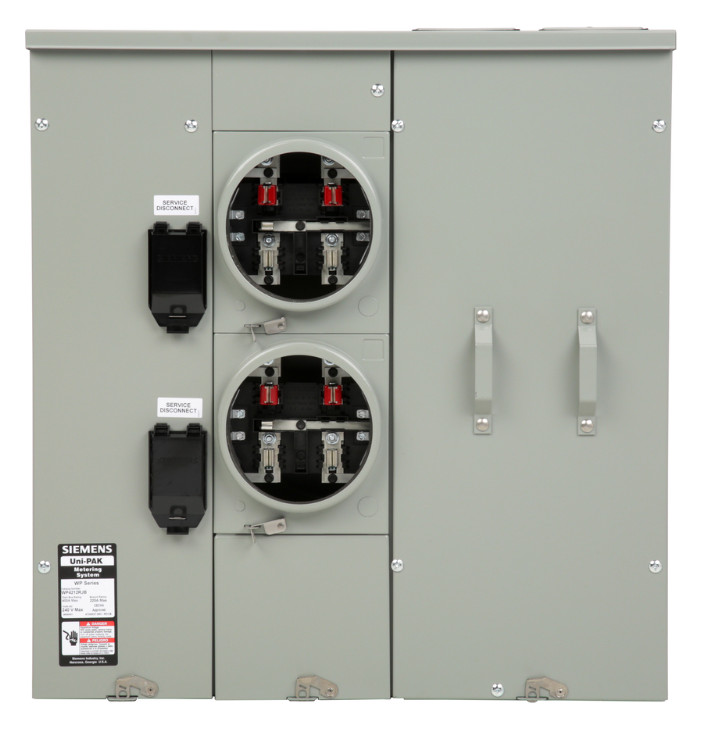

Siemens WP4212RJB 2-Gang 400A 225 Amp RINGLESS HORN BYPASS UNI-PAK Meter Stack:
$1249.00

BRAND NEW ITEM

***INQUIRE DIRECTLY FOR BULK DISCOUNT***

Siemens 2-Gang 400A 225 Amp RINGLESS HORN BYPASS WP4212RJB UNI-PAK Meter Socket / Stack / Base / Center

Meter Center
Type Commercial
Breaker Type dir="ltr">Voltage Rating 120/240 V
Circuit Configuration 1-Phase 3-Wire
Bus Current Rating 400 Ampere
Number of Sockets 2
Socket Type Self Contained
Socket Current Rating 225 Ampere
Socket Cover Style Ringless
Number of Jaws 5
Wire Size 1/0 AWG to 750 KCMIL (Copper/Aluminum), (2) 1/0 AWG to 250 KCMIL (Aluminum), (2) 1/0 AWG to 3/0 AWG (Copper)
Enclosure Type NEMA 3R, Outdoor
Enclosure Material ANSI 61 Light Gray Electrodeposited Paint on Zinc Coated G90 Steel
Mounting Surface
Size 28.53 Inch W x 7.56 Inch D x 29.75 Inch H
Approval UL
Cable Entry Top/Bottom Feed
Interrupt Rating 100 Kiloampere
Terminal Type Line Lug
Application Small Apartment Building, Small Professional and Commercial Building
Includes Factory/Field Installable 5th Jaw Kit, Factory/Field Installable Horn Bypass
Individual Split Cover with Barrel Lock Compatibility
UL Listed for 60/75 Deg C Conductors
Completely Self-Contained Meter Centers
Two to Six 125A and 225A Breaker Positions
Outdoor Surface Mounted Enclosures
Compact, Pre-Bussed, Easy to Handle, Hang and Wire
Barrier, Sealable Compartment for Unmetered Current Carrying Parts
Aluminum/Copper Lay-In Lugs, Except Two Positions 125A Units
Top or Bottom Feed
Bottom and Rear Branch Wiring Exits
Factory or Field Installable 5th Jaw Kit
Extra Neutral and Ground Provisions
Smaller, More Compact Design Enclosures are Lighter and Use Less Space
Removable Knockout Plate

Siemens Low Voltage's Multi-Family Metering Line of PAK Metering: Standard 225A as part of the PAK Metering: Standard 225A Group. Type: UNI-PAK Features: HORN BYPASS Appn: GARDEN - STYLE Std: UL-50,67,414 V. Rating: 120/240V A. Rating: 400A Phase: 1PH Size: 9.00 x 28.79 x 30.630 No. Of Cutouts: 11 Cutout Size: 1 x (1/2,3/4,1,1-1/4"), 6 x (2-1/2,2,1-1/2,1-1/4,1"), 2 x (4,3-1/2,3,2-1/2,2"), 2X4" Cable Entry: TOP OR BOTTOM FEED Terminal: 3X2 STUDS. Insulated.Appn:. Wall Mounted. Enclosure: RINGLESS
