Schulz MSV20MAX Two‑Stage Air Compressor Pump – 5 HP, 20 CFM:
$975.00

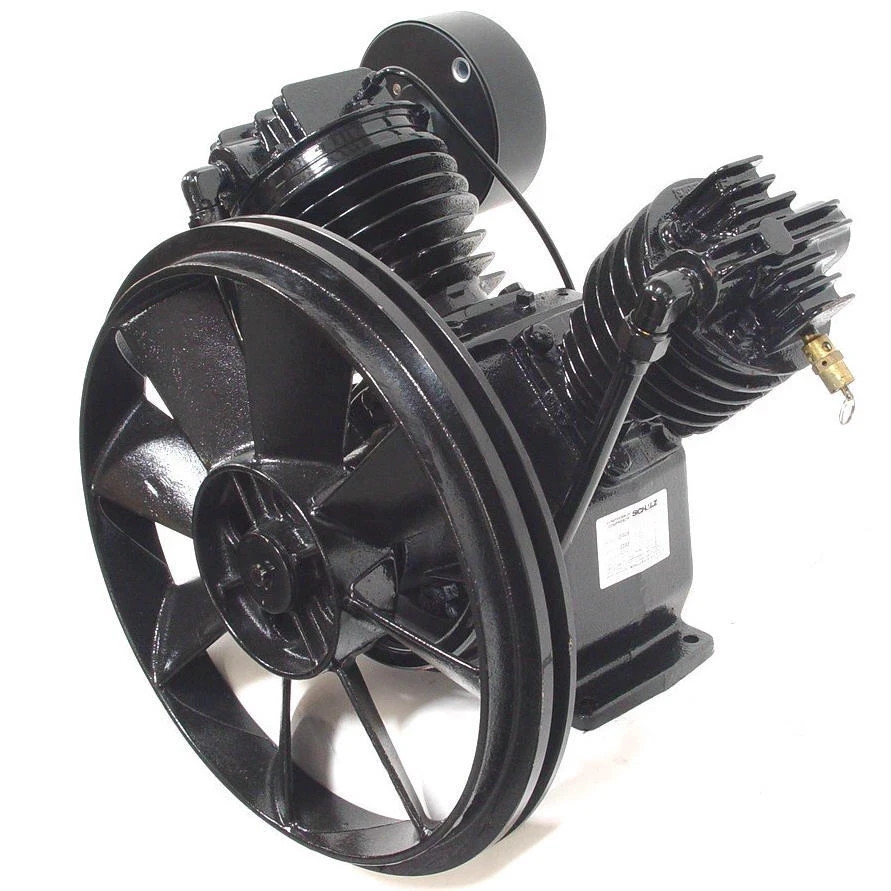

TheSchulz MSV20MAX Two‑Stage Lubricated Air Compressor Pumpis aheavy‑duty, industrial‑quality unitengineered for strength, reliability, and long service life. Manufactured fromcast iron, this pump is ideal forprofessional and industrial compressed air applications.

Designed withslotted mounting feet, the MSV20MAX can be easily mounted to an air tank or used as areplacement pumpfor many competitive compressor brands. Itstwo‑stage, two‑piston V‑type configurationdelivers efficient compression, consistent airflow, and dependable pressure performance.

Equipped with alarge 16.5″ flywheel, this pump provides excellent cooling and smooth operation while supporting demanding duty cycles. Rated for5 HP motorsand producing20 CFM, it is well suited for busy shops and industrial environments.

Factory 12‑Month Warranty Included.

Key Features

Industrial‑gradecast iron construction
Two‑stage compressionfor higher efficiency
V‑type two‑piston design
16.5″ flywheelfor improved cooling and longevity
Slotted mounting feetfor easy installation or retrofit
Designed forprofessional & industrial use

Technical Specifications

Brand:Schulz
Model:MSV20MAX
Manufacturer Part Number (MPN):932.7527‑0
Air Displacement:20 CFM (566 L/min)
Motor Power Required:5 HP (3.7 kW)
Operating Pressure Range:
- Minimum:9.3 bar / 135 PSI
- Maximum:12 bar / 175 PSI
Compressor Stages:2
Pistons:2 (V‑Type)

Important Notes

⚠️Air filters are NOT includedand aresold separately.
✅ Compatible air filter assembly available here:
