Schroeder 8Z10 Hydraulic Filter Element 10 Micron Cellulose ZT Tank Mount New For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Schroeder 8Z10 Hydraulic Filter Element 10 Micron Cellulose ZT Tank Mount New:
$34.99

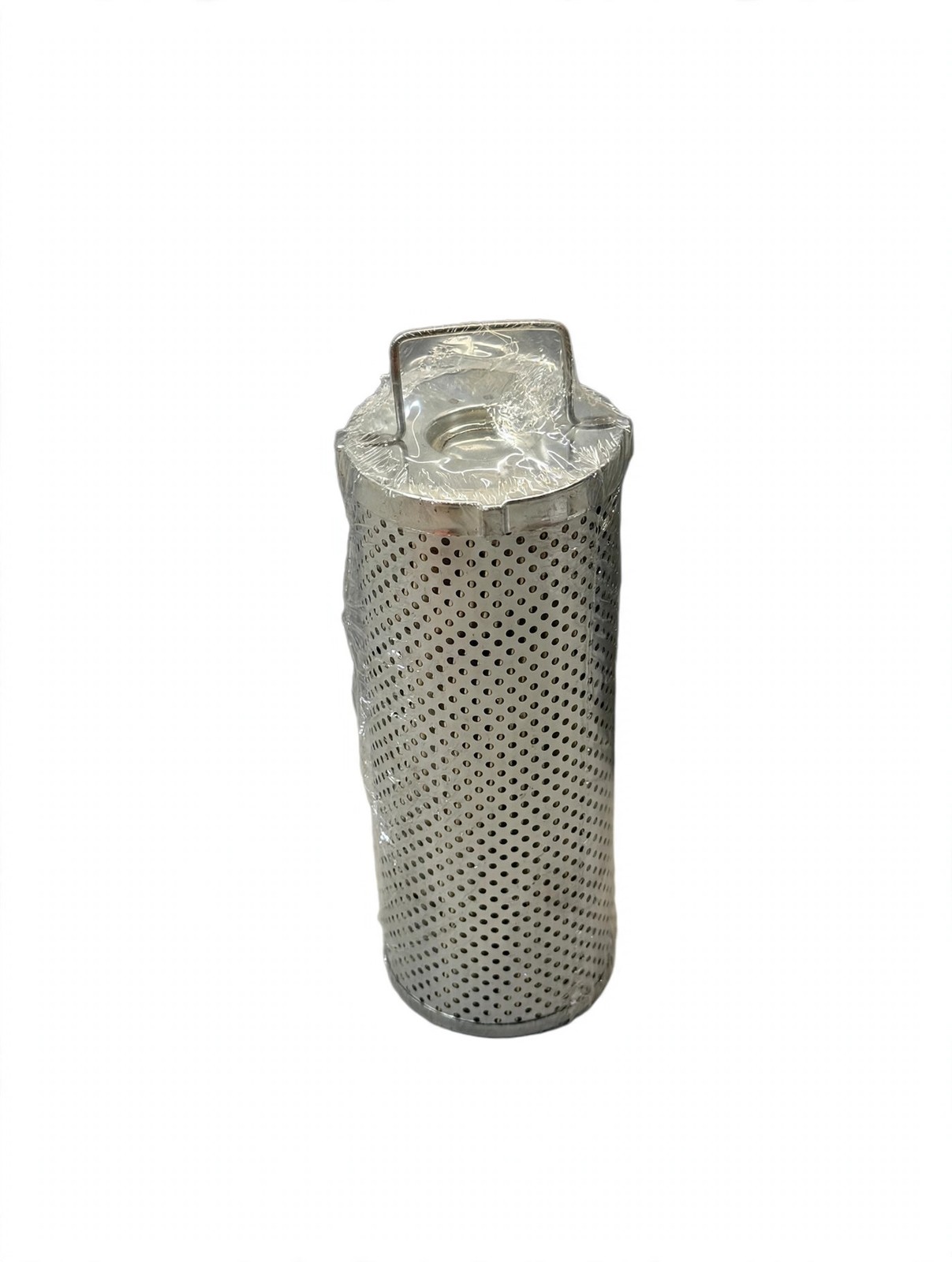

New Schroeder Industries 8Z10 hydraulic filter element — genuine OEM replacement cartridge for Schroeder ZT tank-mounted return-line filters.
Part number: 8Z10 (Schroeder no. 7629364, as printed on the box label)
Specifications (per Schroeder ZT catalog):- Element size: 8 (ZT series)- Media: E-media cellulose (paper), 10 micron- Flow direction: outside-in- Seal: Buna N- Nominal size-8 envelope (Schroeder sales drawing): approx. 9.4 in long x 3.3 in OD x 1.6 in ID- Element collapse rating: 150 PSID; housing bypass setting: 25 PSI- Operating temperature: -20°F to 225°F
Fits Schroeder ZT tank-mounted filters (housing rated up to 40 GPM, 100 PSI max). The synthetic-media upgrade for the same housing is Schroeder 8ZZ10; this listing is for the cellulose 8Z10.
Note from the manufacturer (printed on the box): on two- and three-element filters, re-use the connectors when changing elements — do not discard the connectors with the old element.
Condition: brand new, still sealed in the original plastic wrap, in the original Schroeder box. The box shows shelf wear (scuffs / light corner dents) from storage. Please verify the part number fits your filter before ordering — no confirmed aftermarket cross-reference is published for this element.
Free shipping. Handling time: 1 business day. 30-day returns, seller pays return shipping.
