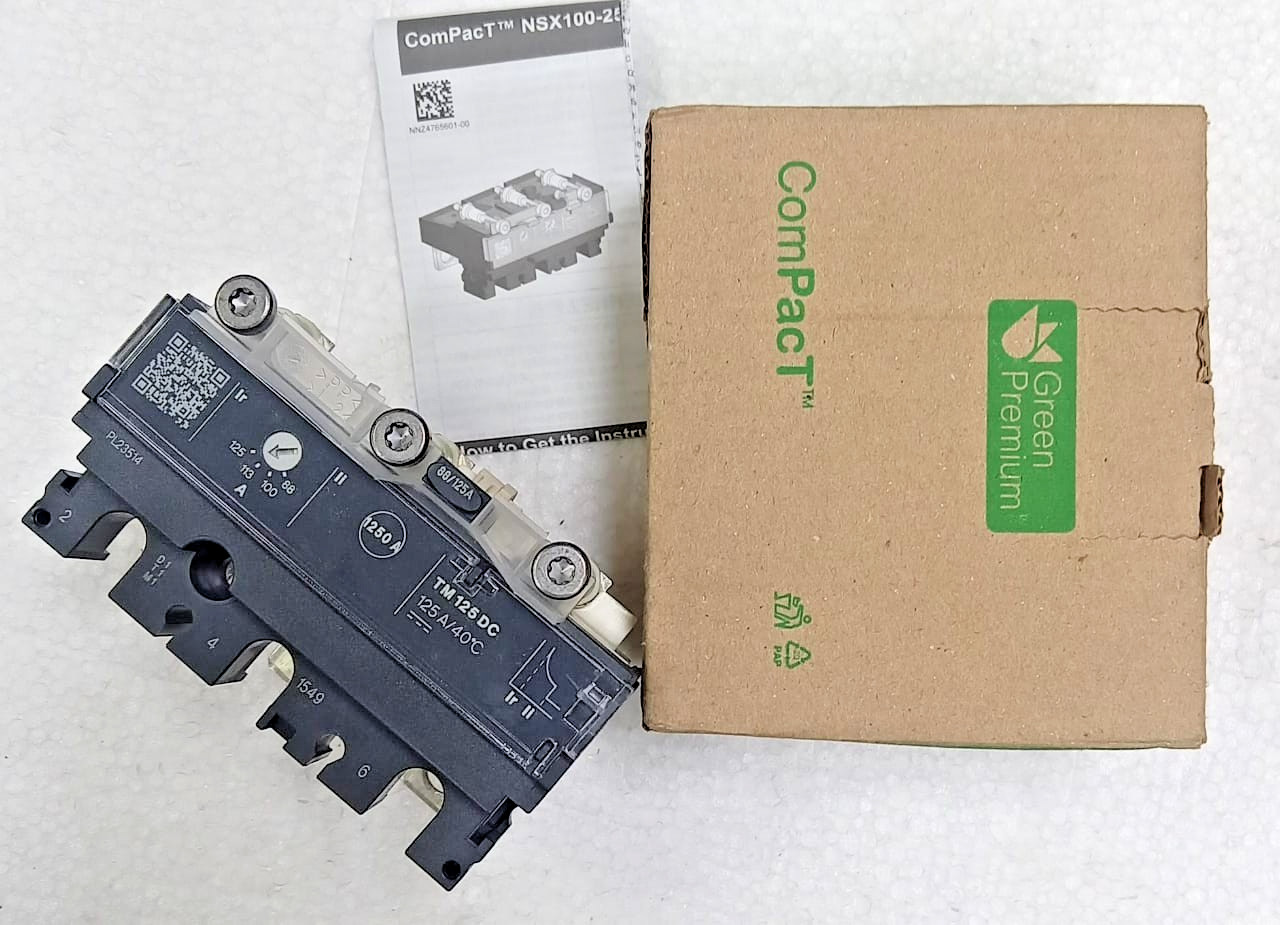

Schneider Electric C163TM125D trip unit TM125DC ComPacT NSX160 DC 125A 3P 3D For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Schneider Electric C163TM125D trip unit TM125DC ComPacT NSX160 DC 125A 3P 3D:
$387.00

Schneider Electric C163TM125Dtrip unit TM125DC, ComPacT NSX 160 DC, thermal magnetic, 125 A rating, 3P 3dThe Schneider Electric C163TM125D trip unit TM125DC ComPacT NSX160 DC 125A 3P 3D is a high-quality circuit breaker suitable for industrial applications. With its triple pole single throw (3PST) design and thermal overload protection, this unit offers reliable performance for up to 125A of current. The compact size and switch control style make it easy to install in any room, providing overload protection for peace of mind. The unit features 6 outlets and 10 ports, suitable for interior use with a voltage range of 651-700V. With its durable construction and proven brand reputation, this trip unit is an essential component for any electrical system.
MainRangeComPacTRange of productComPacT NSX100...250 DCProduct or component typeTrip unitTrip unit nameTM-DTrip unit technologyThermal-magneticRange compatibilityComPacT NSX160 DCDevice applicationDistributionPoles description3PProtected poles description3DTrip unit protection functionsLIProtection typeL : for overload protection (thermal)
I : for short-circuit protection (magnetic)Trip unit rating125 A at 40 °C[Ue] rated operational voltage750 V DCNetwork typeDCCircuit breaker mounting modeFixedComplementaryLong-time pick-up adjustment type Ir (thermal protection)Adjustable[Ir] long-time protection pick-up adjustment range0.7...1 x InLong-time protection delay adjustment type trFixedInstantaneous protection pick-up adjustment type IiFixed[Ii] instantaneous protection pick-up adjustment range1250 AEarth-leakage 60947-2Electrical shock protection classClass IIPollution degree3 conforming to IEC 60947-1IP degree of protectionIP40 conforming to IEC 60529Ambient air temperature for operation-25…70 °CAmbient air temperature for storage-50…85 °C
