Schneider Electric C100-B-TM63D-4P4T NSX 100B 25kA AC 4P 100A GCR_C100_630 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Schneider Electric C100-B-TM63D-4P4T NSX 100B 25kA AC 4P 100A GCR_C100_630:
$549.00

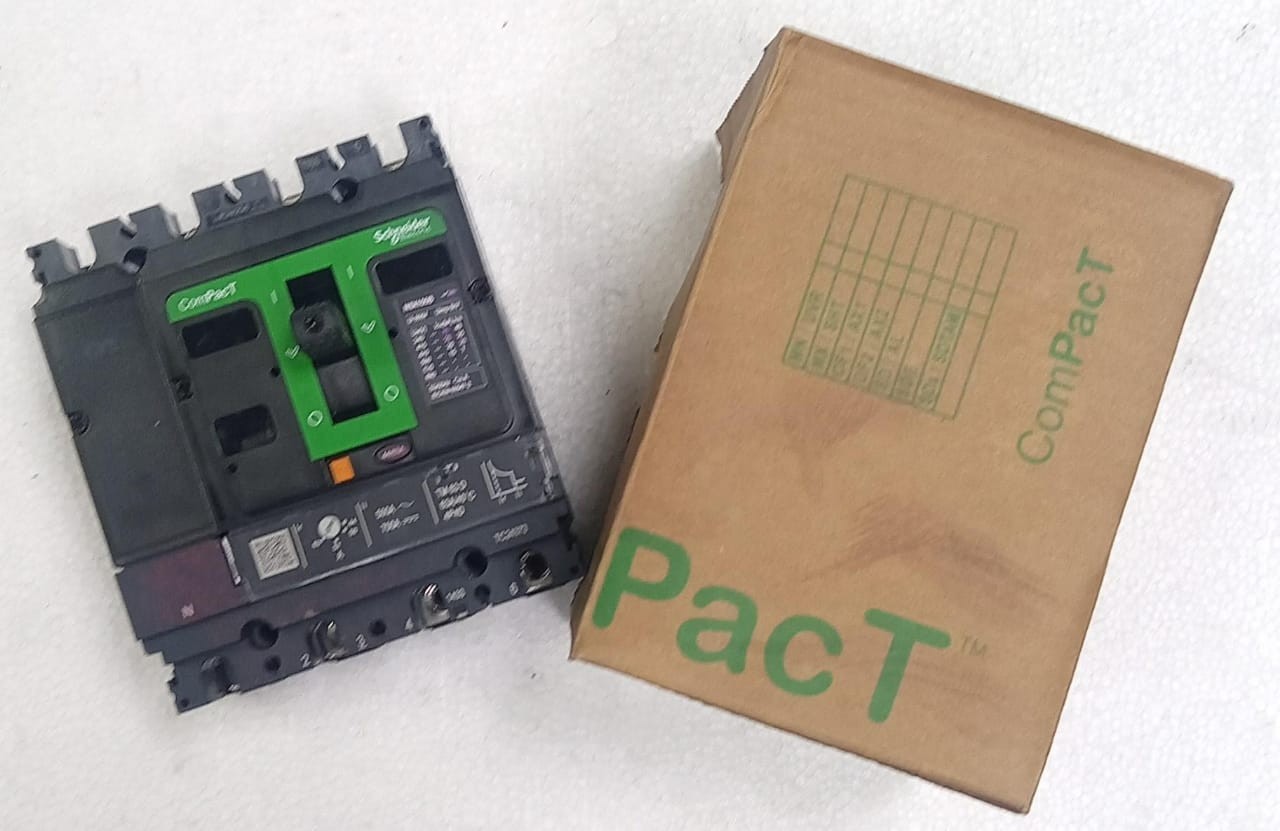

Schneider Electric C100-B-TM63D-4P4T Basic Frame NSX 100B 25kA AX 4P 100A GCR_C100_630The Schneider Electric C100-B-TM63D-4P4T NSX 100B 25kA AC 4P 100A GCR_C100_630 is a high-quality circuit breaker designed for industrial applications. With 4 poles and a maximum amperage of 100A, this main breaker provides overload protection and features thermal overload protection for added safety. Its fixed mounting style and screw terminal electrical connection make installation easy and secure, while the black color and sleek design make it suitable for any room in a business or industrial setting. The Schneider Electric brand ensures reliability and durability, making this circuit breaker a valuable addition to any electrical system.
Product Overview

Manufacturer: Schneider Electric
Product Range: ComPacT NSX100 / EasyPact CVS100
Device Short Name: NSX100B / CVS100B
Product Type: Moulded Case Circuit Breaker (MCCB)
Frame Size: 100A Frame
Trip Unit: TM63D (Thermal-Magnetic Trip Unit) rated at 63A
Number of Poles: 4 Poles (4P4T / 4D) – 4 Poles with full neutral protection

SpecificationsElectrical CharacteristicsParameterValueRated Current ($I_n$)63 A at 40°C / 50°CRated Operational Voltage ($U_e$)440V – 690V AC (50/60 Hz)Rated Insulation Voltage ($U_i$)800 V ACRated Impulse Withstand Voltage ($U_{imp}$)8 kVBreaking Capacity Level ($I_{cu}$)B Performance Level (25 kA)Ultimate Breaking Capacity ($I_{cu}$)

• 25 kA at 380/415 V AC

• 40 kA at 220/240 V AC

• 20 kA at 440 V AC

Suitability for IsolationYes (conforming to IEC 60947-2)Trip Unit Details (TM63D)

Protection Type: LI (Overload / Long-Time & Short-Circuit / Instantaneous Protection)
Long-Time Delay :Fixed
Magnetic Protection : Fixed instantaneous short-circuit protection (~500 A)
Neutral Protection: 4P4T / 4D (Neutral fully protected at $1.0 \times I_r$)

Physical Dimensions & Installation

Mounting Type: Fixed
Mounting Support: Backplate (Vertical or Horizontal)
Dimensions ($W \times H \times D$): $140\text{ mm} \times 161\text{ mm} \times 86\text{ mm}$
Connection Pitch: 35 mm
Control Type: Toggle
IP Protection Degree: IP40 (conforming to IEC 60529)
Standard Compliance: IEC / EN 60947-2
