Schmidt Industrie-Elektronik PSR3 Power Supply 220VAC in, 5V and two 12-15V out:
$210.00

Schmidt Industrie-Elektronik

PSR3 Power Supply

Input 220VAC

3 Outputs:

5V @ 10A

12-15V @ 2A

and 12-15V @ 1A

This unitwas removed from a working system

It is in great condition and warrantedfully functional.

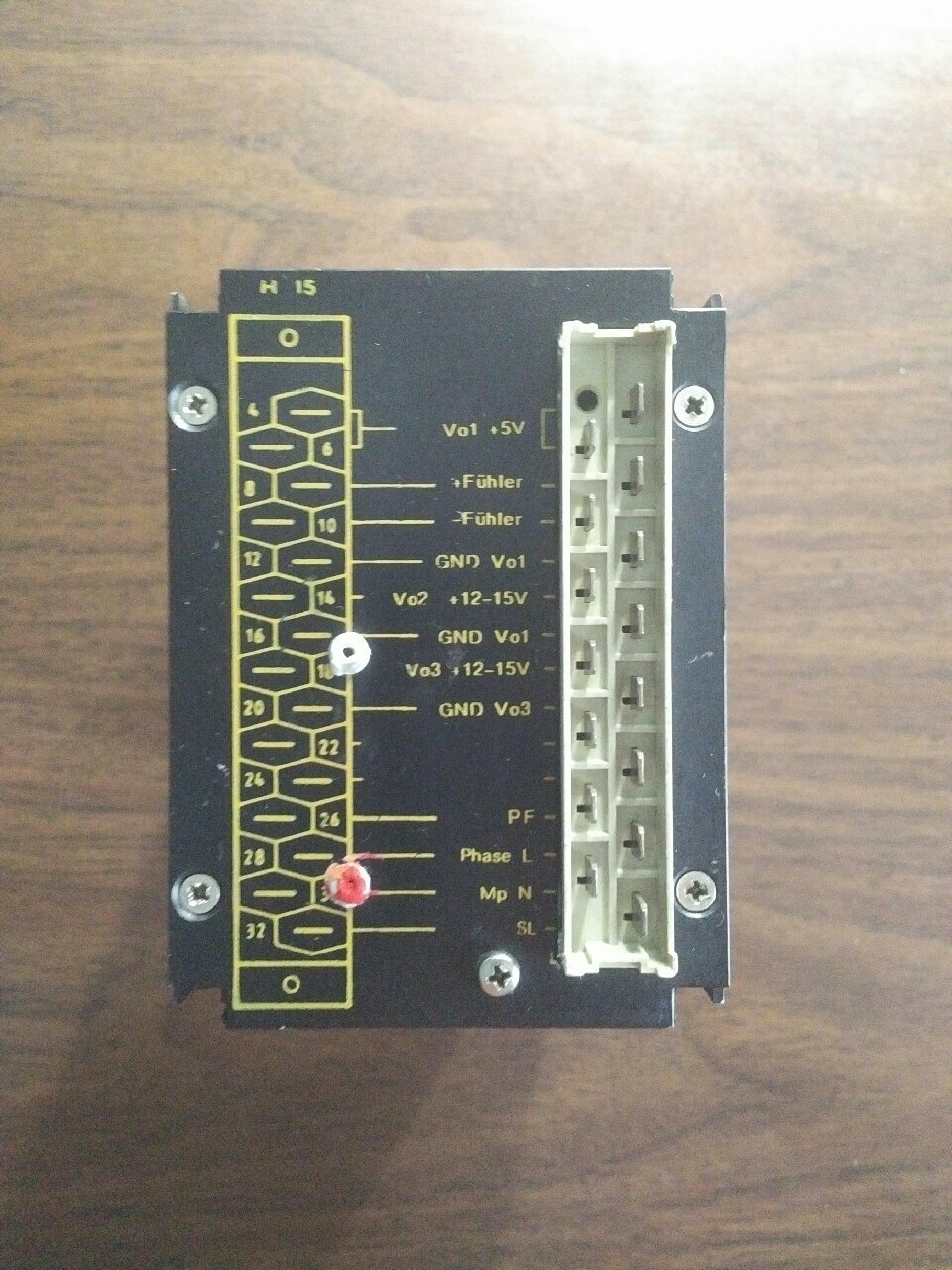

COSMETIC CONDITION SHOWN IN PHOTO.

---

---

---

Schmidt Industrie-Elektronik PSR3 Power Supply 220VAC in, 5V and two 12-15V out

$210.00

---

Schmidt Industrial Electronics PSR 101 220-5/20 with Power Fail 180V

$334.94

---

SCHMIDT INDUSTRIE-ELEKTRONIK PSR3 PSR3/MDS 220-5/12 POWER SUPPLY

$169.99

---
