Schmalz SCPM 10 NC A VS-T Vacuum Ejector 10.02.02.03283 24VDC For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

Schmalz SCPM 10 NC A VS-T Vacuum Ejector 10.02.02.03283 24VDC:
$129.99

Schmalz SCPM 10 NC A VS-T Compact Vacuum Ejector / Vacuum Generator

Model: SCPM 10 NC A VS-T
Part Number: 10.02.02.03283
Supply Voltage: 24 VDC
Solenoid Power: 1.3 W
Operating Pressure: 3–6 bar (optimal 4–5 bar)
Vacuum Switch: VS-V-AV-T-NPN-S
Vacuum Switch P/N: 10.06.02.00397

Good pre-owned condition. Unit has a “tested” sticker.

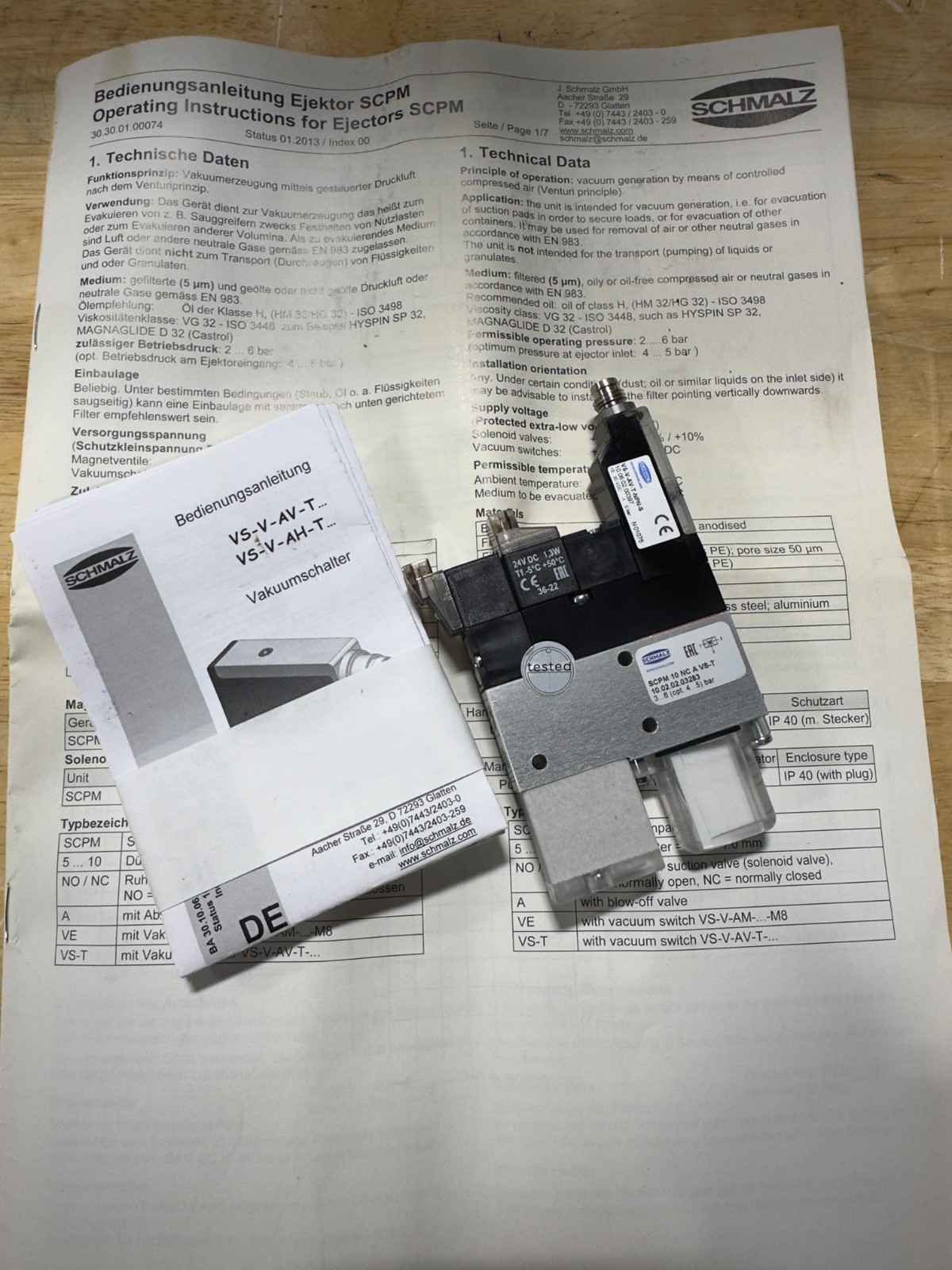

Includes the Schmalz operating instructions/documentation shown in the photos.

Please review all photos carefully for exact condition, configuration, labels, and included items.

You will receive exactly what is shown in the photos.

---

---

---

Schmalz SCPM 10 NC A VS-T Vacuum Ejector 10.02.02.03283 24VDC

$129.99

---

LARD SCPM 10 NO AS VE 10.02.02.00605

$138.84

---

LARD SCPM 10 NC A VE 10.02.02.01057

$122.97

---
