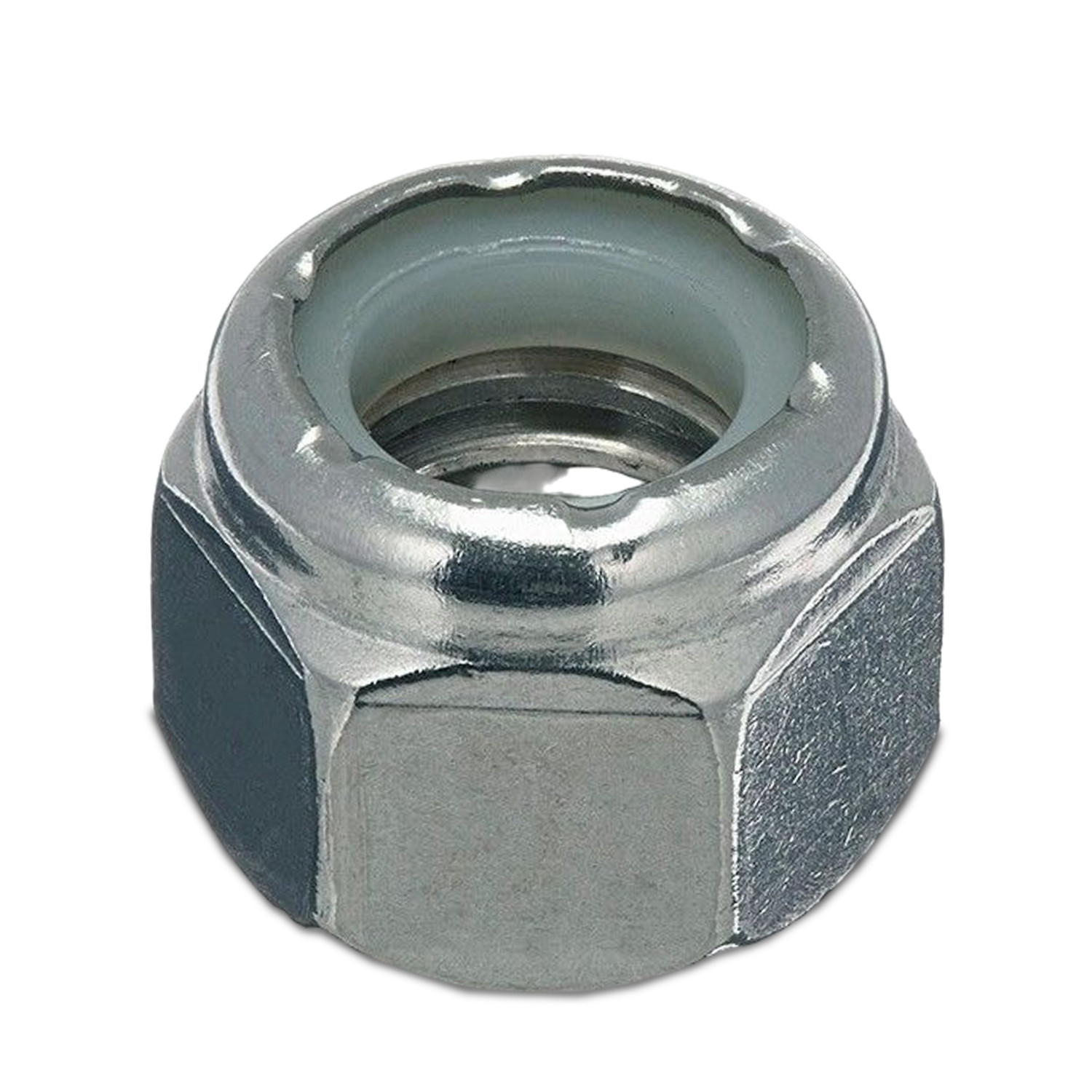

Sandbaggy 1/4"-20 Nylon Lock Nut - Grade 2 Steel - Zinc Plated (Galvanized) For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Sandbaggy 1/4"-20 Nylon Lock Nut - Grade 2 Steel - Zinc Plated (Galvanized):
$24.20

Resists Loosening: 1/4"-20 Zinc Plated Nylon Lock Nuts

This is a 1/4"-20 Nylon Lock Nut, designed specifically to resist loosening caused by vibration and torque. Its key feature is the integrated nylon insert at the top, which creates friction against the bolt threads. Installation requires a standard 7/16" wrench or socket.

Specs

Product Type: Lock Nut (Insert Lock Nut)
Size: 1/4 inch Nominal Diameter
Thread Pitch: 20 TPI (Unified National Coarse - UNC)
Grade:SAE J995 Grade 2
Material: Steel
Finish: Zinc Plated (Electro Galvanized)
Insert Material: Nylon
Maximum Temperature:250°F (121°C)
Inside Diameter: 0.25 in (1/4")
Outside Diameter (Across Flats): 7/16 in
Thread Direction: Right Hand
Weight (Approx. per piece): 0.01 lbs

Features

Resists Vibration Loosening: Integrated nylon insert creates prevailing torque, gripping bolt threads tightly to prevent the nylon nut lock from backing off.
Standard Grade 2 Steel: Provides reliable strength for general-purpose assemblies, DIY projects, and non-critical applications.
Electro Galvanized Zinc Plating: Offers moderate corrosion resistance for protection against rust in typical indoor or dry conditions.
Standard 1/4"-20 Size: Fits common 1/4" diameter bolts with standard 20 TPI coarse threads.

FAQHow does the nylon insert prevent loosening?

As the bolt threads into thenylon lock nut, it deforms the nylon ring inside. This creates strong friction (prevailing torque) against the threads, making the nut significantly resistant to vibrating or backing off.

Can nylon lock nuts be reused?

For critical applications where the locking feature is essential for safety or function, it's recommended to use a newnylon lock nut each time. Reuse significantly reduces the locking effectiveness as the nylon wears.

What is the zinc plating for?

The electro-galvanized zinc plating provides a protective layer over the steel, offering moderate resistance to rust and corrosion, mainly for indoor or dry environments.

What tool is needed for this 1/4-20 nylon lock nut?

You need a standard 7/16 inch wrench or socket.
