Samsung DA92-01196A PCB Main Assembly RS5300TC For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

Samsung DA92-01196A PCB Main Assembly RS5300TC:
$253.99

Product Description

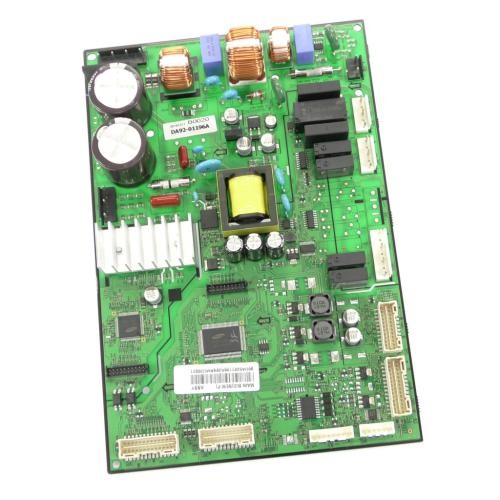

The Samsung DA92-01196A is an essential assembly PCB main designed for models including SBS and RS5300TC. This component plays a crucial role in the overall functionality of your appliance.

• Manufactured by Samsung
• Compatible with multiple SBS models
• Ensures efficient operation of your appliance

Product Highlights

This assembly is vital for maintaining the performance and reliability of your Samsung appliance.

Product InformationStandard Information

• Brand: Samsung
• Item Code: SMGDA92-01196A

Technical Specifications

• Weight: 1.12 lbs
• Length: 10 inches
• Width: 7 inches
• Height: 2 inches
• Hazmat: No
• Oversized: No

---

---

---

Samsung DA92-01196A PCB Main Assembly RS5300TC

$253.99

---

Samsung DA92-01364A Main Board

$258.99

---

OEM Samsung Ref. Door Mechanism kit DA-63-09639A, DA63-09537A, DA66-01342A

$100.99

---
