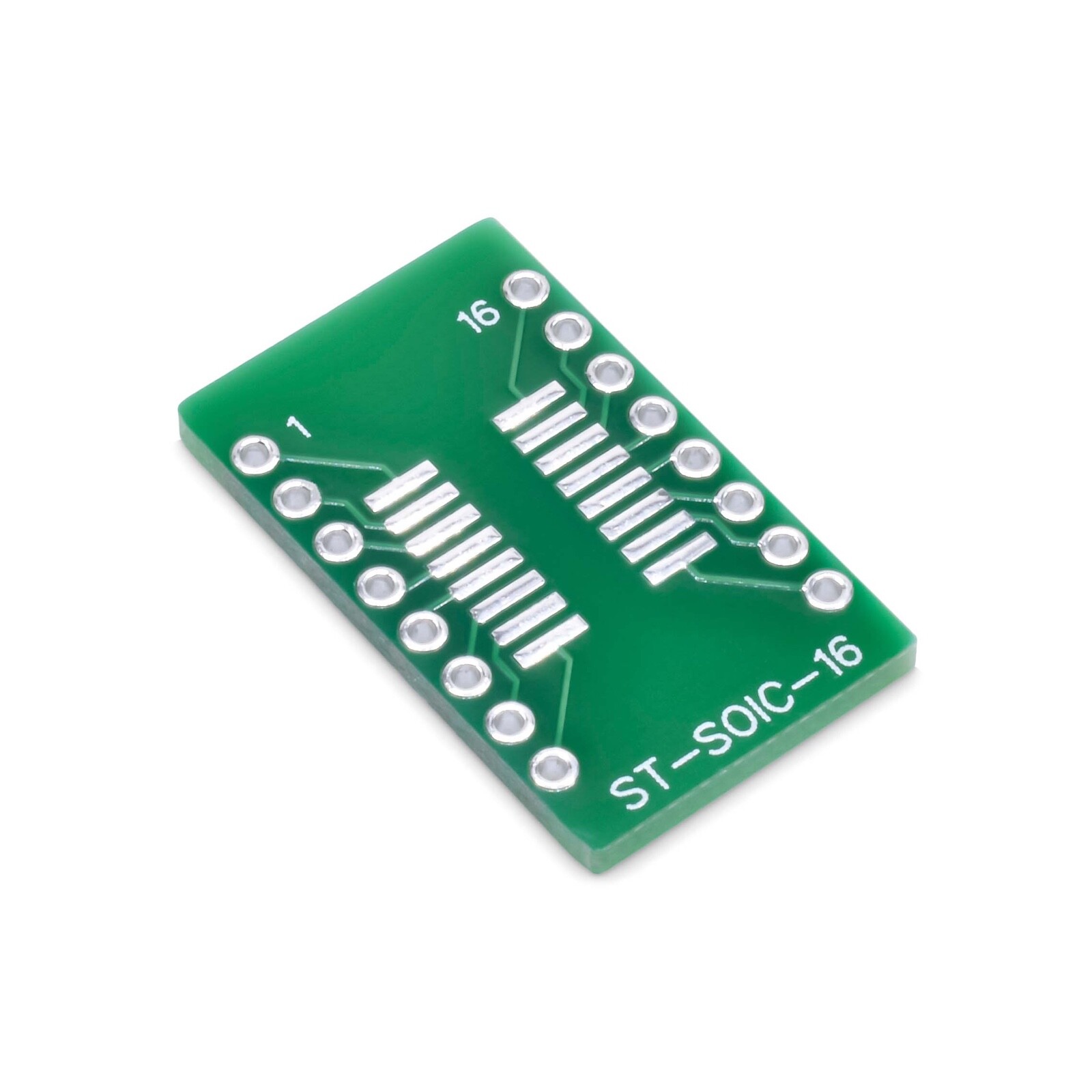

SOIC-16 / SOP16 SMD to DIP Adapter, PCB Breadboard Adapter ST-SOIC-16, 5 Pieces:
$7.49

ST-SOIC-16SOIC-16 / SOP16 SMD to DIP Adapter - 5 Pack

Converts a SOIC-16 / SOP16 SMD part to a DIP form factor
High quality PCB can withstand re-work
Enables SMD parts to be used with a breadboard or perfboard
0.1\" pitch holes for standard headers
Item sold in packs of 5 boards

SpecificationsDIP Pitch0.1\"SMD PackageSOIC-16, SOP16Surface FinishLF HASLTemperature Rating-30°C to +100°C

This SMD to DIP breakout board enables the easy conversion of a surface mount package to a DIP form factor. This adapter makes prototyping with surface mount parts fast and easy. Holes with a standard 0.1\" pitch allow the board to work with common headers and enable SMD parts to be used in breadboards and perfboards. This board has an LF HASL surface finish and is made of high quality FR4 which can withstand high temperature soldering and re-work.

Mechanical DrawingsElectrical Connections

Each pin of the SOIC-16 / SOP16 SMD part is electrically connected to one of the through hole connections on the SMD to DIP adapter board.

Custom Designs

Can\'t find what you need? We can design and produce a custom board to fit your exact needs. Please reach out to us for additional information and pricing.
