SMC NCY3B15-1300 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

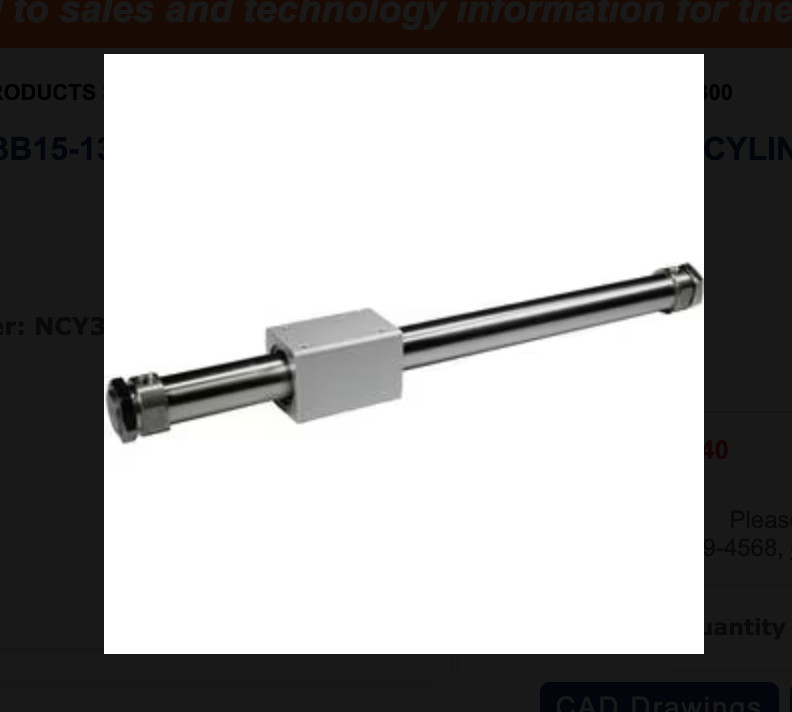

SMC NCY3B15-1300:
$204.40

SMC\'s NCY3B cylinder series, when compared to the NCY2B, reduces minimum operating pressure by approximately 30% using a lubretainer. Unnecessary body weight has been eliminated and the outer cylinder tube diameter has been reduced, making the NCY3B approximately 10% lighter. Mounting dimensions are identical to the NCY2B with the exception of the 1/4\" bore, allowing easy replacement. It is possible to order the 1/4\" bore (NCY3B6) that is interchangeable with the NCY2B6 by adding the suffix X1468 to the end of the part number.

---

---

---

SMC NCY3B15-1300

$204.40

---

SMC NCY3B15-1500 Guided Cylinder

$152.99

---
