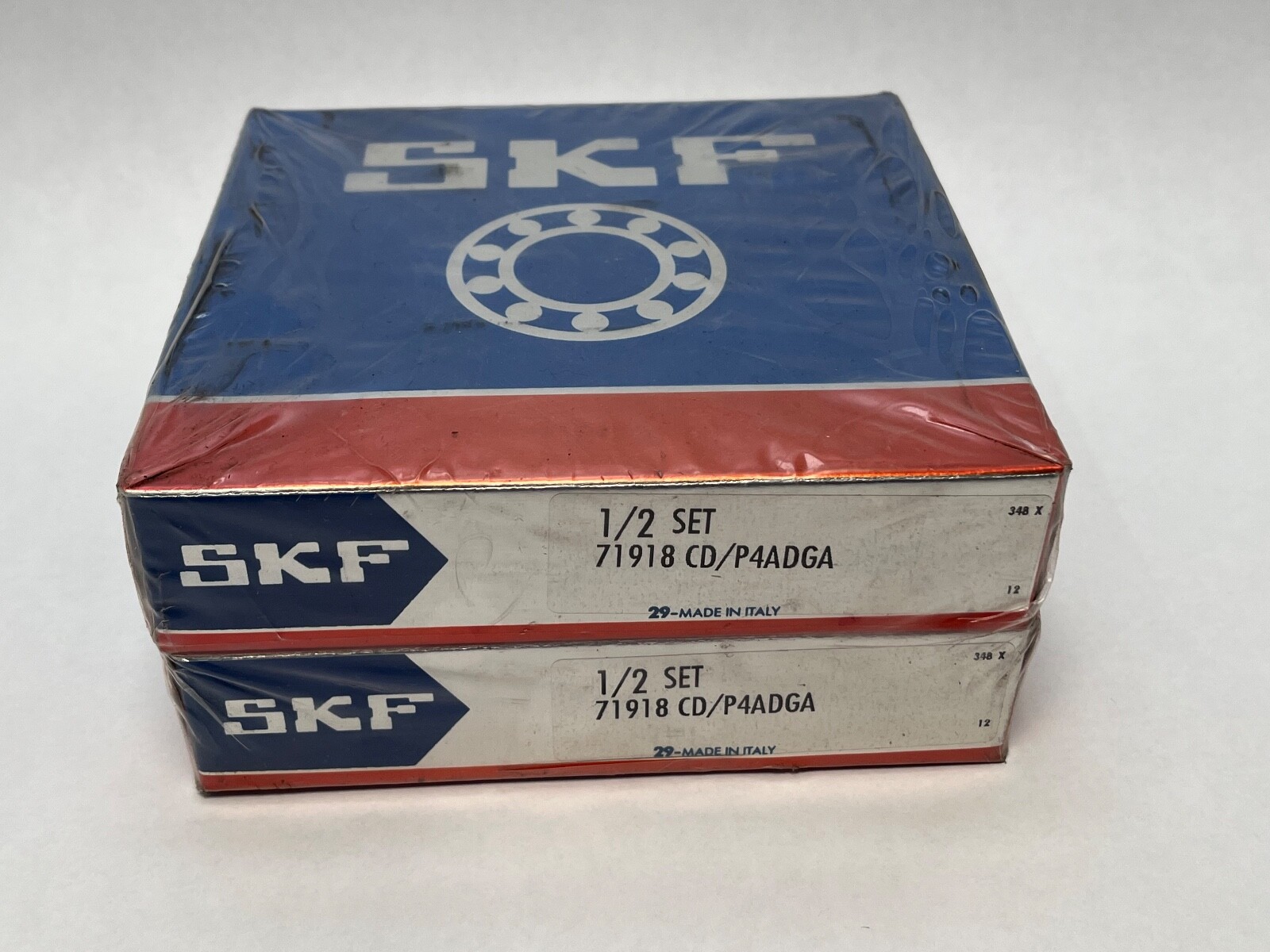

SKF 71918-CDP4A/DGA Precision Angular Contact Bearing 90x125x18mm 7918 2 Pcs

    What this part is:

    SKF 71918 CD/P4ADGA is a matched pair of super-precision, high-capacity single row angular contact ball bearings in the 719 ultra-light series. Bore Diameter: 90 mm. Outside Diameter: 125 mm. Width: 18 mm per bearing. Contact Angle: 15°. Unit Quantity: 2 Pcs, one universally matchable pair.

    Decoding the designation:

    719 — ISO dimension series 19, ultra-light section.

    18 — bore code, 18 x 5 = 90 mm bore.

    CD — 15° contact angle, high-capacity D design.

    P4A — SKF tolerance class: ISO P4 dimensional accuracy with ISO P2 running accuracy.

    DGA — set of two universally matchable bearings, extra light preload.

    Specifications:

    Bore Diameter: 90 mm. Outside Diameter: 125 mm. Width: 18 mm per bearing. Contact Angle: 15°. Number Of Rows: 1 per bearing. Closure Type: Open.

    Dynamic Load Rating: 47,500 N per bearing. Static Load Rating: 51,000 N per bearing.

    Precision Class: P4A (ABEC 7 / P4 dimensional, P2 running accuracy). Preload: Extra light (DGA). Design: High-capacity D. Bearing Material: Bearing steel.

    Item Weight: 0.549 kg (1.21 lb) per bearing. Mounting Arrangement: universal pair, back-to-back, face-to-face or tandem.

    Compatibility and replacement:

    Cross-references at 15°, super-precision class: FAG B71918-C-T-P4S-DUL, NSK 7918CTYNDULP4, NTN 7918CDBL, Fafnir 2MM9318WI DUL. ISO base number 71918.

    Frequently asked questions:What are the dimensions and contact angle of the SKF 71918 CD/P4ADGA?

    Bore 90 mm, outside diameter 125 mm, width 18 mm per bearing, contact angle 15°.

    What does DGA mean in 71918 CD/P4ADGA?

    DGA is a set of two universally matchable bearings with extra light preload.

    What are the load ratings of the 71918 CD/P4ADGA?

    Dynamic load rating 47,500 N and static load rating 51,000 N, per bearing.
