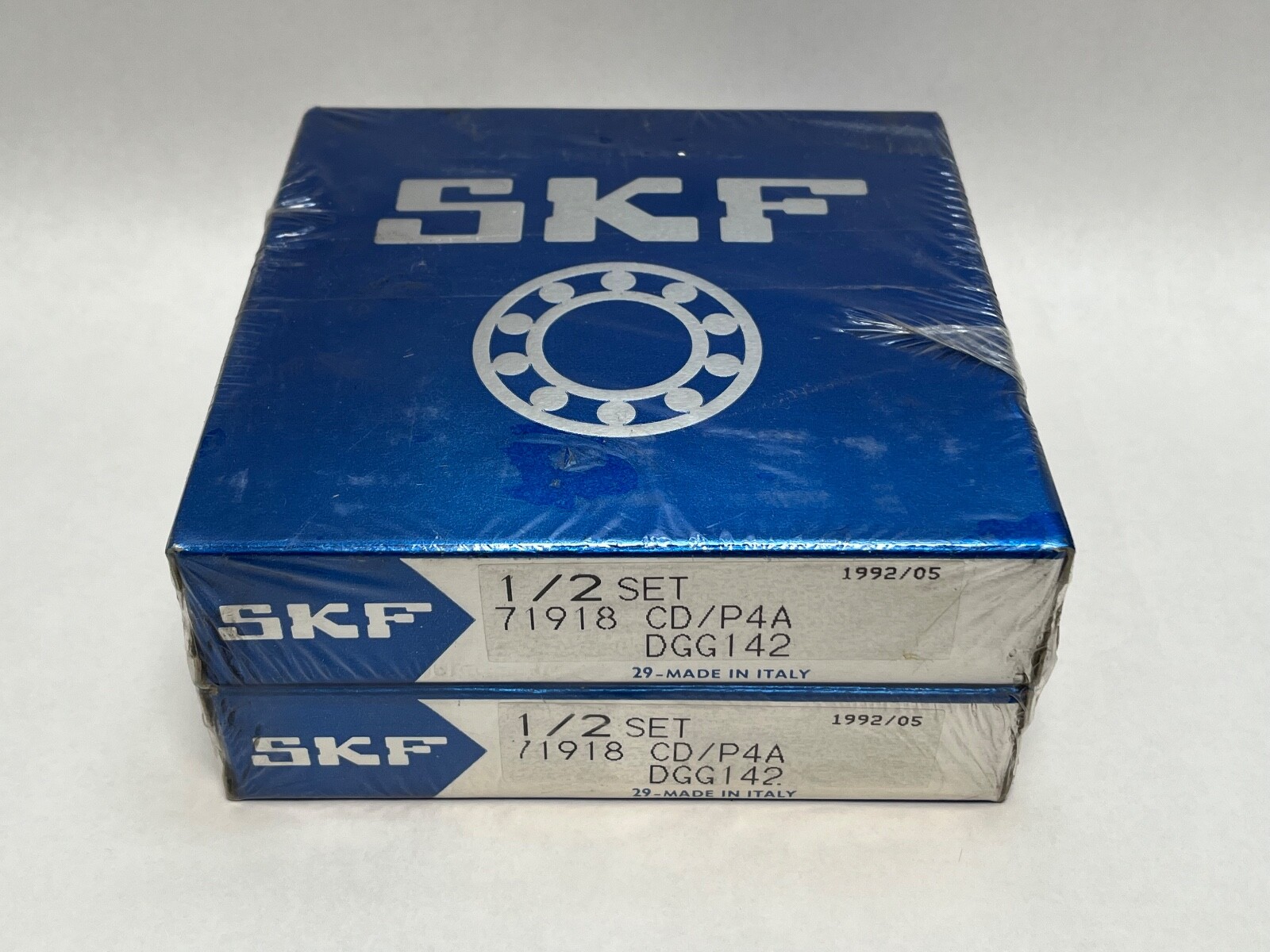

SKF 71918-CD/P4ADGG142 Angular Contact Bearing Pair 90x125x18mm 7918 G142 2 Pcs

What this part is:

SKF 71918 CD/P4ADGG142 is a matched pair of super-precision, high-capacity single row angular contact ball bearings in the 719 ultra-light series, 15° contact angle. The pair is universally matchable: back-to-back, face-to-face or tandem. Unit Quantity: 2 Pcs. Country of Origin: Italy.

Decoding the designation:

719 — ISO dimension series 19, ultra-light section.

18 — bore code, 18 x 5 = 90 mm bore.

CD — 15° contact angle, high-capacity D design.

P4A — SKF tolerance class: ISO P4 dimensional accuracy with ISO P2 running accuracy.

DG — set of two universally matchable bearings.

Specifications:

Bore Diameter: 90 mm. Outside Diameter: 125 mm. Width: 18 mm per bearing. Contact Angle: 15°. Dynamic Load Rating: 47,500 N per bearing. Static Load Rating: 51,000 N per bearing. Precision Class: P4A (ABEC 7 / P4 dimensional, P2 running accuracy). Number Of Rows: 1 per bearing. Design: High-capacity D. Bearing Material: Bearing steel. Closure Type: Open. Item Weight: 0.549 kg (1.21 lb) per bearing; 1.10 kg (2.42 lb) pair total. Total Width: 36 mm (pair).

Compatibility and replacement:

FAG B71918-C-T-P4S (15°, P4S class). NSK 7918C (15°, no P4 class suffix). NTN 7918C (15°, no P4 class suffix). Fafnir 2MM9318WI (15°, P4 class). Part number variants: 71918 CD/P4ADGG142, 71918-CD/P4ADGG142, 71918-CD-P4A-DG G142, 71918CDP4ADGG142, 7918.

Frequently asked questions:What are the dimensions of the SKF 71918 CD/P4ADGG142?

Bore 90 mm, outside diameter 125 mm, width 18 mm per bearing; the pair stacks to 36 mm.

What are the load ratings per bearing?

Dynamic 47,500 N and static 51,000 N per bearing.

What does CD/P4A mean?

CD is a 15° contact angle in the high-capacity D design; P4A is ISO P4 dimensional accuracy with ISO P2 running accuracy.
