SKF 71913-ACDGB/P4A Bearing 7913 71913-ACD-P4A-DGB ABEC7 65x90x13 mm

    What this part is:

    A matched pair of single-row super-precision angular contact ball bearings in the 719-series, 65 mm bore, 90 mm outside diameter, 13 mm width per bearing. The 719 series is the extra-thin-section angular contact family, and the rings are ground as a set for back-to-back mounting at a defined light preload.

    Decoding the designation:

    71913 — single-row angular contact ball bearing, 65 mm bore, 719 extra-light dimension series.

    AC — 25° contact angle in the SKF scheme.

    CD — super-precision execution.

    DGB — matched pair, back-to-back, light preload.

    P4A — ABEC 7 precision class, SKF super-precision tolerance.

    What these specs mean in practice:

    The 719 cross-section is thin for its bore, which keeps the bearing set compact axially and lets a large shaft run inside a small housing bore — the reason it appears in tool spindles, rotary tables and direct-drive heads where space around the shaft is short. A 25° contact angle carries more thrust and gives higher axial stiffness than a 15° execution of the same 65 x 90 x 13 mm envelope, at a lower speed ceiling. Light preload gives the set defined axial stiffness while keeping friction and running temperature moderate. Back-to-back mounting places the load lines diverging outward, which resists moment loads and holds the shaft square.

    Quantity and configuration:

    2 Pcs, one matched pair. Total mounted width of the pair is 26 mm.

    Fitting notes:

    The pair mounts in its ground orientation with the etched face markings aligned so the two outer rings meet at their narrow faces. Both rings are clamped fully home so the preload comes off the ground faces rather than off clamp force, and the thin cross-section makes a square, well-supported shoulder and a round housing bore important to the running accuracy.

    Interchange guidance:

    Same-spec equivalents are 25° ABEC 7 back-to-back 71913-size pairs under other schemes, such as an NSK 7913A5TRDULP4 or an FAG B71913-E-T-P4S-DUL, both at light preload. SKF 71913 CDGB/P4A at 15°, 71913 ACDGA/P4A at extra light preload, and hybrid HCP4A executions are related sizes rather than interchanges.

    Fast, reliable MRO solutions when you need them most.

    • Large In-Stock Inventory: New industrial, bearings, power transmission, and automation parts.

    • Same-Day Shipping: Orders ship quick with next-day and international options available.

    • Expert Support: Cross-referencing and part location ensuring you get the exact match, fast.

    • Direct Pricing: Get new OEM components at highly competitive rates.

    MESSAGE US class="ql-align-center">

    Choose your shipping speed; next-day and expedited options are available at checkout.

    Handling Time: Orders are processed and shipped the same day.

    International shipping available on all orders.

    Ship on your account, collect shipping accepted (UPS, FedEx, DHL, Freight).

    Competitive prices are guaranteed.

    The following payment methods are offered at checkout on .com:

    • PayPal / PayPal Credit
    • Credit card or debit card
    • Apple Pay
    • Google funds
    • Payment upon pickup
    • Wire transfer facilitated by (select categories only)
    • gift card or voucher or Bucks

    Free returns: accepted within 30 days

    Return options: money back, replacement

    Refer to Return policy for more details.

    You are covered by the Money Back Guarantee if you receive an item that is not as described in the listing.

    We can instantly Cross-Reference:

    • Bearings
    • Power Transmission Parts
    • Hydraulic / Pneumatic
    • MRO Products
    • PLC / Electromechanical
    • Most Industrial Supplies

    To any direct interchanges, alternate parts, equivalents, substitutes

    international shipping is fast, reliable, inexpensive.

    We can ship using your carrier account.

    Expedited, express, next-day shipping available on international shipments.

    All of our parts are Plants

    We take great care to source all of our parts from trusted and reliable inventory holders.

    We ship out 99% of orders the same day.

    All orders placed before 6pm EST are processed same day.

    No handling charge on any orders.

    We hope you will love your purchase, however if you need to return it, we have a 60 day return policy.

    FEATURED PRODUCTS

    NTN 7208B Bearing 40x80x18 mm 7208BL1G 7208-B-L1-G 7208-B-MP

    $32.89

    McGill MI-64 Needle Bearing Inner Ring 4.0000x4.9985x2.2600" MI 64 MI64 for MR

    $57.36

    Timken 15126/15244 Taper Bearing Cone & Cup 1-1/4" ID 2-7/16" OD 15126 15244

    $32.55

    SNR 7208BGA Bearing 7208B 7208-B-G-A 40x80x18 mm

    $32.89

    SLF B71906E.T.P4S.UL Spindle Bearing 30x47x9mm 25 Deg UL B71906-E-T-P4S 3MM9306

    $96.47

    INA ZM20 Precision Bearing Lock Nut M20x1 32mm OD 10mm W ZM-20 ZM 20

    $31.99

    FAG HC7008-C-T-P4S-UL Angular Bearing HC7008CTP4SUL Hybrid Ceramic 40x68x15mm

    $285.34

    NTN 7017CDG2/GNP4 Angular Contact Bearing 85x130x22 mm 7017C 7017-C-DG2-GN-P4

    $118.59

    Fafnir 2MM214WICR-DUL Bearing 70x125x24 mm 7214C 2-MM-214-WI-CR-DUH 2 Pcs

    $338.57

    NSK N1014BTKRCC1P4 Cylindrical Roller Bearing Tapered Bore 70x110x20mm P4 N1014

    $298.47

    FAG R410 Cylindrical Roller Bearing 110x240x50 mm R-410 Brass Cage

    $245.52

    SKF 2209-EKTN9/C3 Self Aligning Bearing 2209 E K TN9 C3 2209K 45x85x23 mm

    $48.47 Add suggested items to your listings - Check it out on 3Dsellers.com listing template by 3Dsellers.com - Try for Free!
    Buy Now

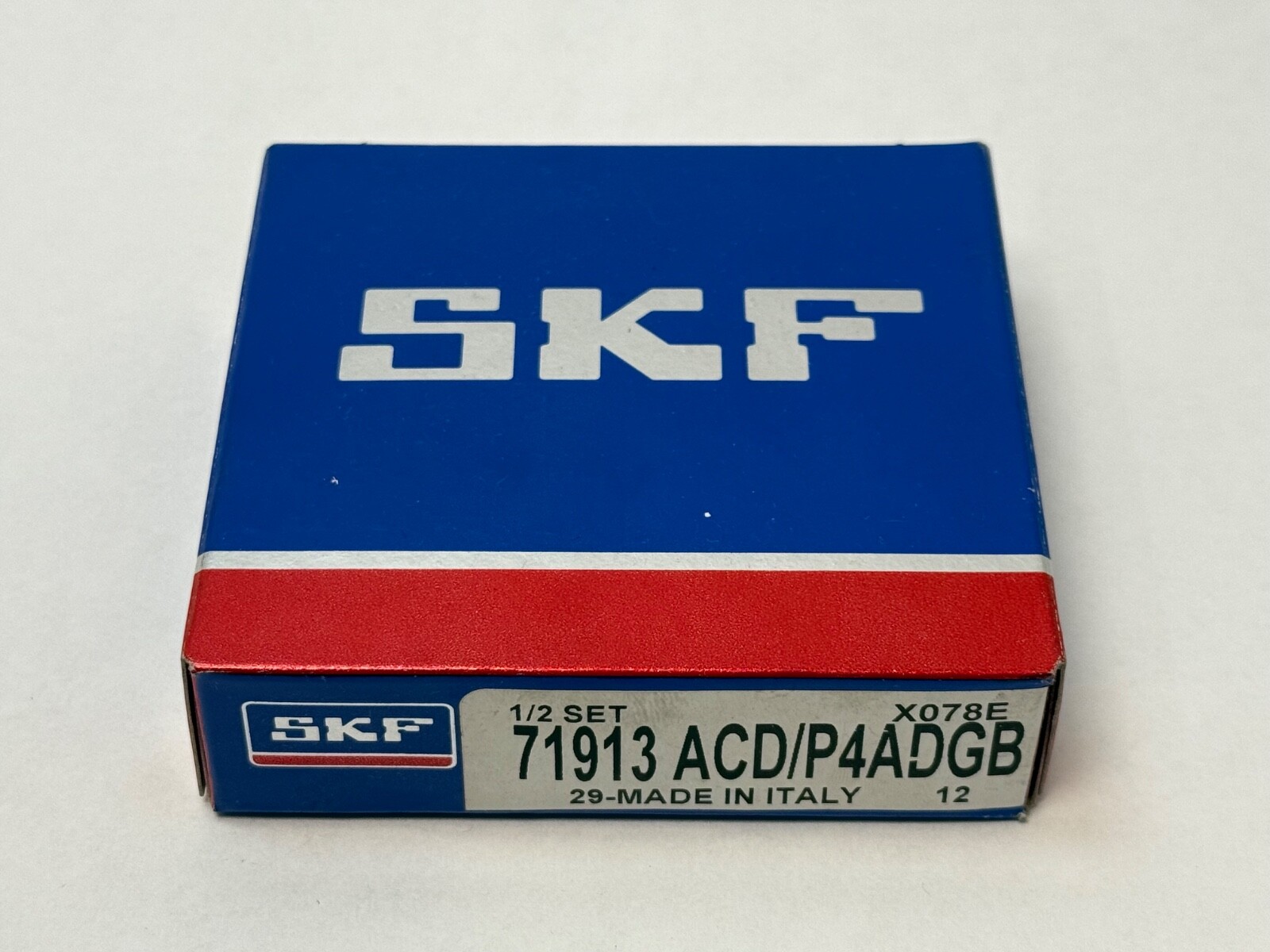

    SKF 71913-ACDGB/P4A Bearing 7913 71913-ACD-P4A-DGB ABEC7 65x90x13 mm picture
