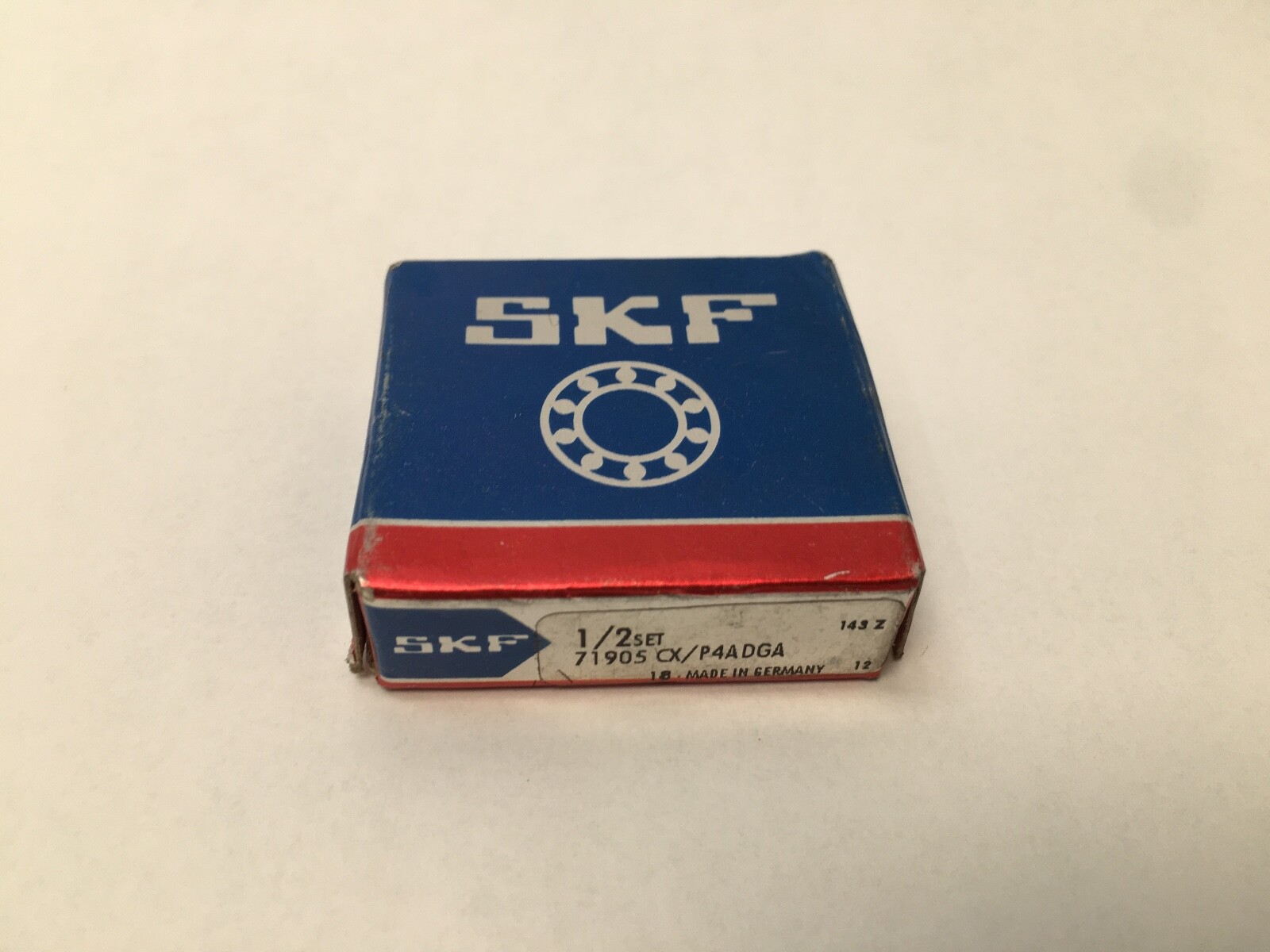

SKF 71905-CXGA/P4A Bearing 25x42x9 mm 71905-CX-P4A-DGA 7905 Extra Light Preload

What this part is:

SKF 71905 CXGA/P4A is a super-precision single-row angular contact ball bearing from the SKF 719 series, 25 x 42 x 9 mm, extra light preload, P4A precision. Single bearing for universal matching.

Decoding the designation:

719 — ISO dimension series 19, the ultra-light cross-section angular contact range.

05 — bore code, 25 mm bore, giving the 25 x 42 x 9 mm envelope.

GA — single bearing for universal matching, extra light preload.

P4A — SKF precision class: ISO tolerance class 4 dimensional accuracy with running accuracy to a tighter level.

Specifications:

Bore Diameter: 25 mm. Outside Diameter: 42 mm. Overall Width: 9 mm. Number Of Rows: 1. Rolling Elements: Ball. Closure Type: Open. Bore Type: Straight. Series: 719. Preload: Extra light. Precision Class: ABEC 7 / P4A. Unit Quantity: 1 Pc. Harmonization Code: 8482.10.50.28.

Dimensions and mounting:

The thin 719 cross-section keeps the bearing compact radially. Universal matching allows two or more GA bearings to be combined in back-to-back, face-to-face or tandem arrangements at the extra light preload value.

Compatibility and replacement:

Alternate part numbers: 71905 CXGA/P4A, 71905CXGAP4A, 71905CXP4ADGA, 71905-CX-P4A-DGA, 71905CX/P4A DGA, 7905C, 7905.

Frequently asked questions:What are the dimensions of the SKF 71905 CXGA/P4A?

Bore 25 mm, outside diameter 42 mm, width 9 mm.

What does GA mean?

A single bearing for universal matching with extra light preload.

What does P4A mean?

SKF precision class: ISO tolerance class 4 dimensional accuracy with running accuracy to a tighter level.
