SIMPSON M23502140 LCD digital panel meter. Used very nice. For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

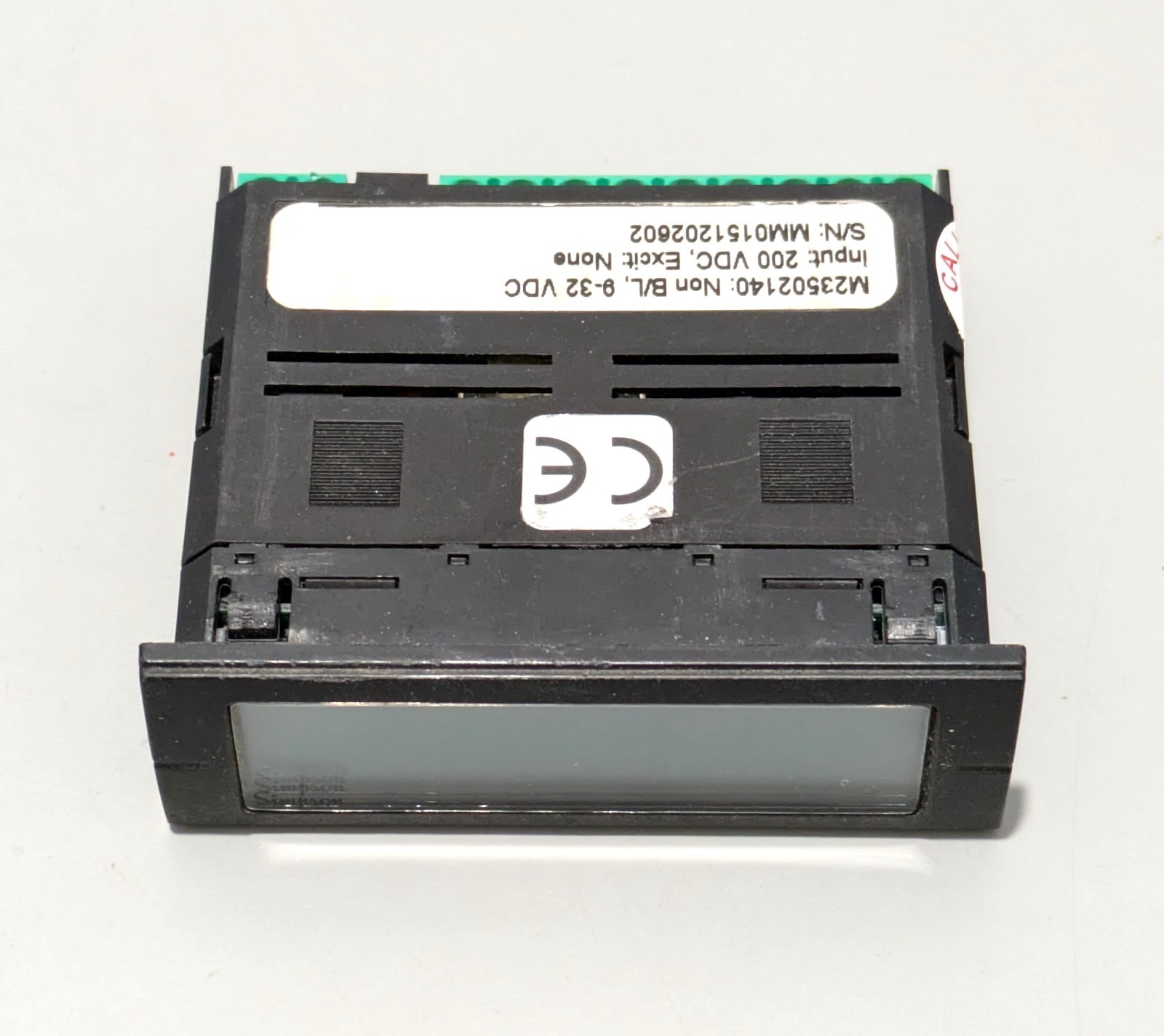

SIMPSON M23502140 LCD digital panel meter. Used very nice.:
$179.99

The Simpson M23502140(also referenced as model M245-0-2-11-0) is a 4-1/2 digit LCD digital panel meter manufactured by the Simpson Electric Company. It is engineered for precision industrial instrumentation and measurement monitoring.Key Specifications

• Display Type: 4-1/2 digit LCD
• Operating Supply Voltage: 9 VDC to 32 VDC
• Input Range / Signal: 200 VDC
• Termination Style: Screw terminals
• The listing is just for the device itself.
• You will get only the device, nothing else is included.
• I am shipping only in Continental USA.

---

---

---

SIMPSON M23502140 LCD digital panel meter. Used very nice.

$179.99

---

Simpson Electric M23502140 Digital Panel Meter,Dc Voltage

$130.00

---
