SIMOND STORE Ceramic Fiber Insulation Board - 2300F - 1/2" x 19.7" x 39.4" For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

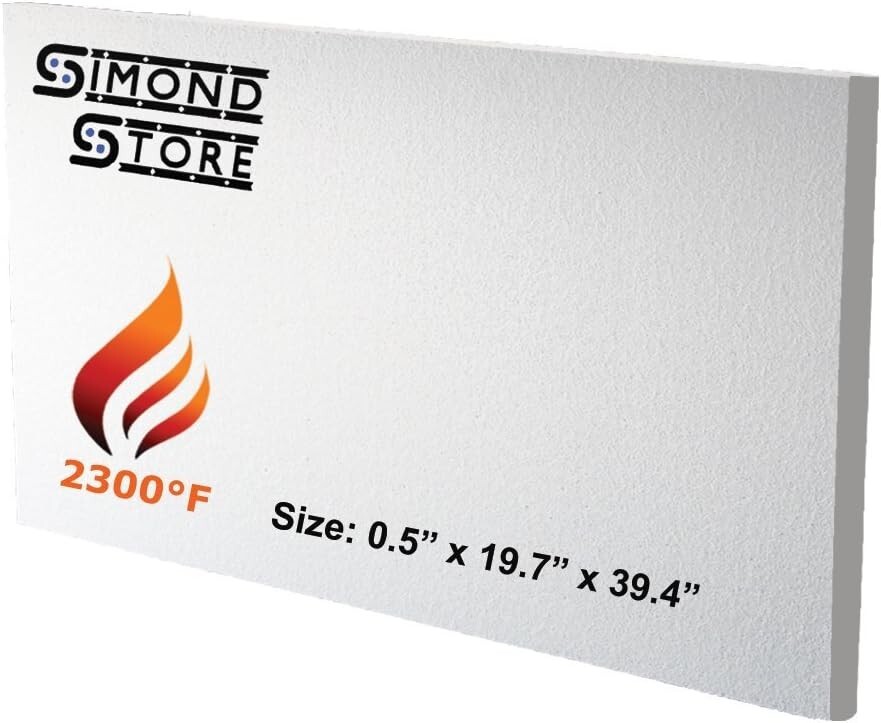

SIMOND STORE Ceramic Fiber Insulation Board - 2300F - 1/2" x 19.7" x 39.4":
$74.99

Know About us

Simond Store is dedicated to providing customers with a convenient and comfortable experience. Quality and the fastest delivery are the key aspects of our business. Our goal is to conserve energy by supplying high-quality insulation products.

Simond Store is a well-known brand that supply high-quality products for a variety of applications. We have extensive experience and expertise in refractory products. We've gained a large number of satisfied customers in the USA.

Know More About Ceramic Fiber BoardWhat is ceramic Fiber Board?

Ceramic Fiber Board is made from refractory fibers and binders which have low organic content, the mixture is vacuum processed into boards that impart good mechanical strength even after heating. Boards are manufactured in various densities and temperature grades to suit application requirements.

Ceramic Fiber Boards are a rigid and self-supporting insulating product of the ceramic fiber family that is intended for use in applications that require

Higher insulating properties
Increased strength and rigidity to resist gas erosive forces
Fire resistance and direct heat resistance up to 2300°F
High resistance to thermal shock (ability of a solid to withstand sudden changes in temperature either during heating or cooling)

Product SpecificationsClassification Temperature (F)2300ColourWhite/TanDensity (Lbs/ft3)20 - 24Size (T x W x L)1/2 inch x 19.7 inch x 39.4 inchThickness Tolerance- 0.04 inch, + 0.08 inchWidth Tolerance± 0.12 inchLength Tolerance-0.12 inch, +0.2 inchHardness (Shore A)50 MinimumMoisture (%)10 MaximumModulus of Rapture (Kpa)980 Minimum – For 1” Thick; 588 Minimum – For 2” ThickPermanent Linear Shrinkage (%)3.5 Maximum (After 24 Hrs. shocking Heat at 2200°F)Compressive Strength (Kpa)274.6 Minimum (10% deformation for 1” Thick)Compressive Strength (Kpa)539.4 Minimum (25% deformation for 1” Thick)Al2O3 (%)44-45SiO2 (%)55-58LOI % at 1832°F4 - 7Key Product Features

Ceramic Fiber Insulation Board is ideal for use in Wood Stoves, Fireplaces, Pizza Ovens, Kilns, Forges, Internal Baffle of Wood Stove, Pellet Stoves, Backup Insulation of Refractory Bricks, and Castable Linings, Furnace Hot Face Linings and Boiler Wall Insulation, Heat shields, Combustion Chambers and fire protection.
