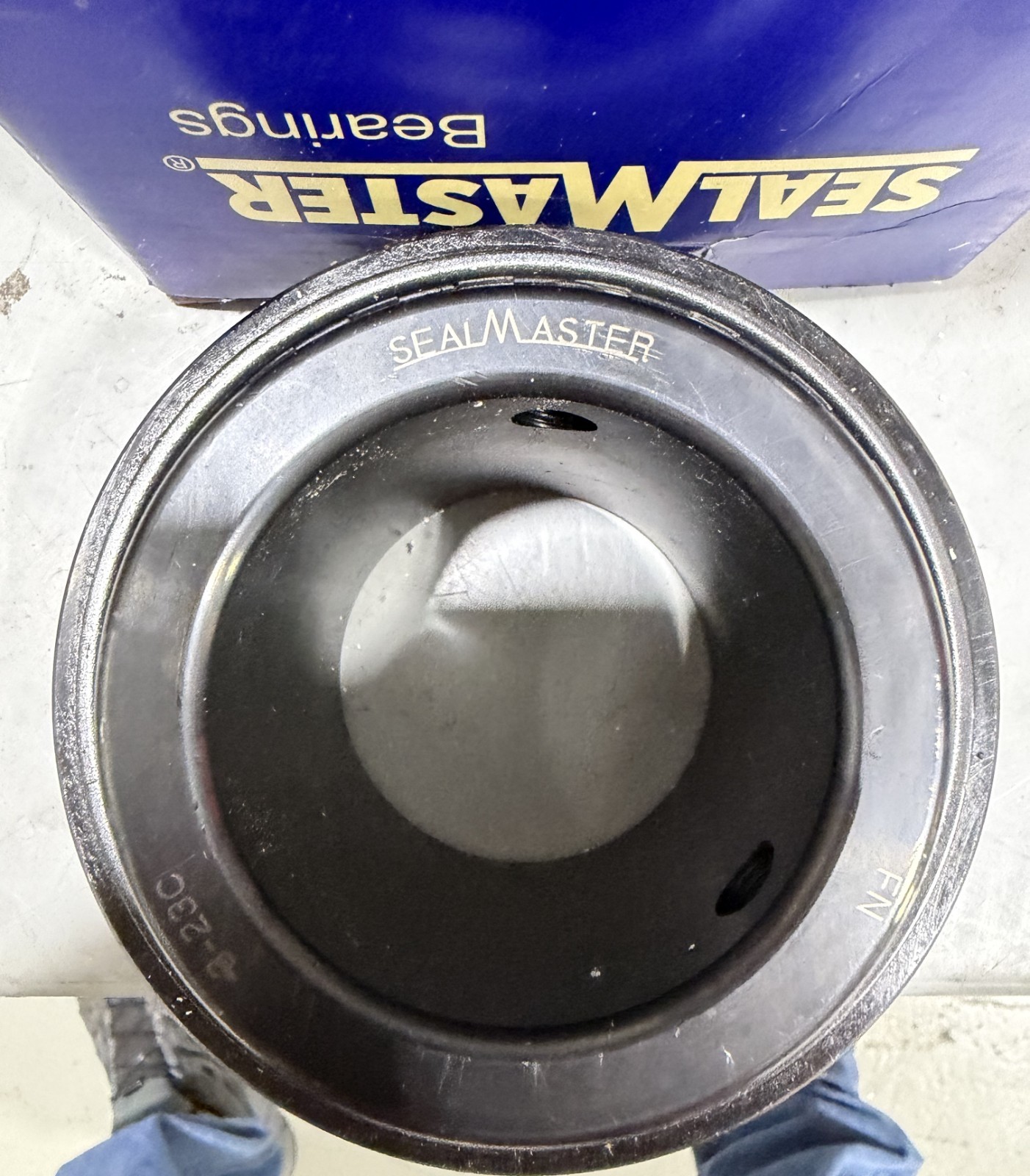

SEAL MASTER GOLD LINE BEARINGS 3-23C:
$25.00
SEAL MASTER BEARINGS 3-23C -Sealmaster Ball Insert Bearing - Straight Bore, 2-3/16 in Bore Diam., 4.3310 in OD, 2.5630 in Width, Medium Duty, Set Screw LockingSpecificationsDimensions- Bore Diameter2-3/16 in
- Fillet Radius0.0800 in
- Inner Ring Width2.5630 in
- Misalignment Angle±2.0° Misalignment - Static Only
- Outer Ring Width1.2500 in
- Outside Diameter4.3310 in
- Overall Width2.5630 in
- Precision RatingABEC 1
- Weight4.20 lbs
- Bearing Material52100 Bearing Steel
- Bearing TypeBall Bearing
- Bore TypeStraight
- CAD DrawingClick here
- Cage MaterialPPS
- Duty TypeMedium Duty
- Expansion TypeNon-Expansion Bearing (Fixed)
- Finish CoatingBlack Oxide
- Housing TypeInsert Only
- Insert Material52100 Bearing Steel, Black Oxided
- Internal ClearanceStandard
- Locking DeviceSet Screw
- LubricantLithium Complex NLGI 2 Grease
- LubricationLithium Complex NLGI 2 Grease
- Lubrication TypeLithium Complex NLGI 2 Grease
- Manufacturer CatalogClick here
- Manufacturer Catalog Number3-23C
- Manufacturer Product PageClick here
- Manufacturer Upc Number662461020074
- Max Operating Temperature220 °F
- Max Rpm2550 rpm
- Operating Temperature Range-20 to 220 °F
- Product TypeBall Insert Bearings
- Radial Dynamic Load Capacity11789 lbf
- Radial Static Load Capacity8150 lbs
- RelubricatableYes
- Retainer TypeLand Riding Retainer
- Seal TypeSingle Lip Contact Seal
- SeriesER
- Type Of BearingBall
- UPC_NO662461020074
SEAL MASTER GOLD LINE BEARINGS 3-23C
$25.00
