SCK-300P + Small Substrate (12MMx12MM) Vacuum Chuck Spin Coater Kit:
$995.00

The SCK-300P + Small Substrate (12MMx12MM) Vacuum Chuck Spin Coater Kit (version 2) is a fully assembled, modular, "Home Built" Spin Coater that improves on the SCK-300 design by incorporating an Innovative Vacuum Chuck Design (Patent Pending), Arduino-based Closed-Loop Precision Digital Controller (+/- 5 rpm resolution), and wider speed range (500 to 8,000 rpms). It comes with everything needed for R&D spin coating work of small substrates*. To put it simply, the SCK-300P offers the best value of any Spin Coater on the market by far! P.S. These kits are not suitable for production or precision work!Key Features:

Vacuum Chuck - The kit has vacuum capable chuck to mount substrates instead of double sided tape. Double sided tape can also be used by removing the rubber o-ring.
CompactSize - The small foot print of the SCK-300P means that it requires verylittle space. For example, the unit can be setup in a crowded hood,inside a glove box.
Closed-Loop Digital Control - Greater control of coating process
Easyto Setup and Use- Simply turn on the unit, place sample on chuck, put on thechamber cover, select spin speed, and start the coating process. Moreover, the kit only needs a 110V or 220V AC power source.
DynamicSpin Range - Spin rates from 500 - 8,000 rpm can be achieved withgood control. Most spin coating work is typically done between 1,200and 5,000 rpm.
Computer Control- Using optional hardware and software, the SCK-300P can be controlled via Desktop and Android based devices.

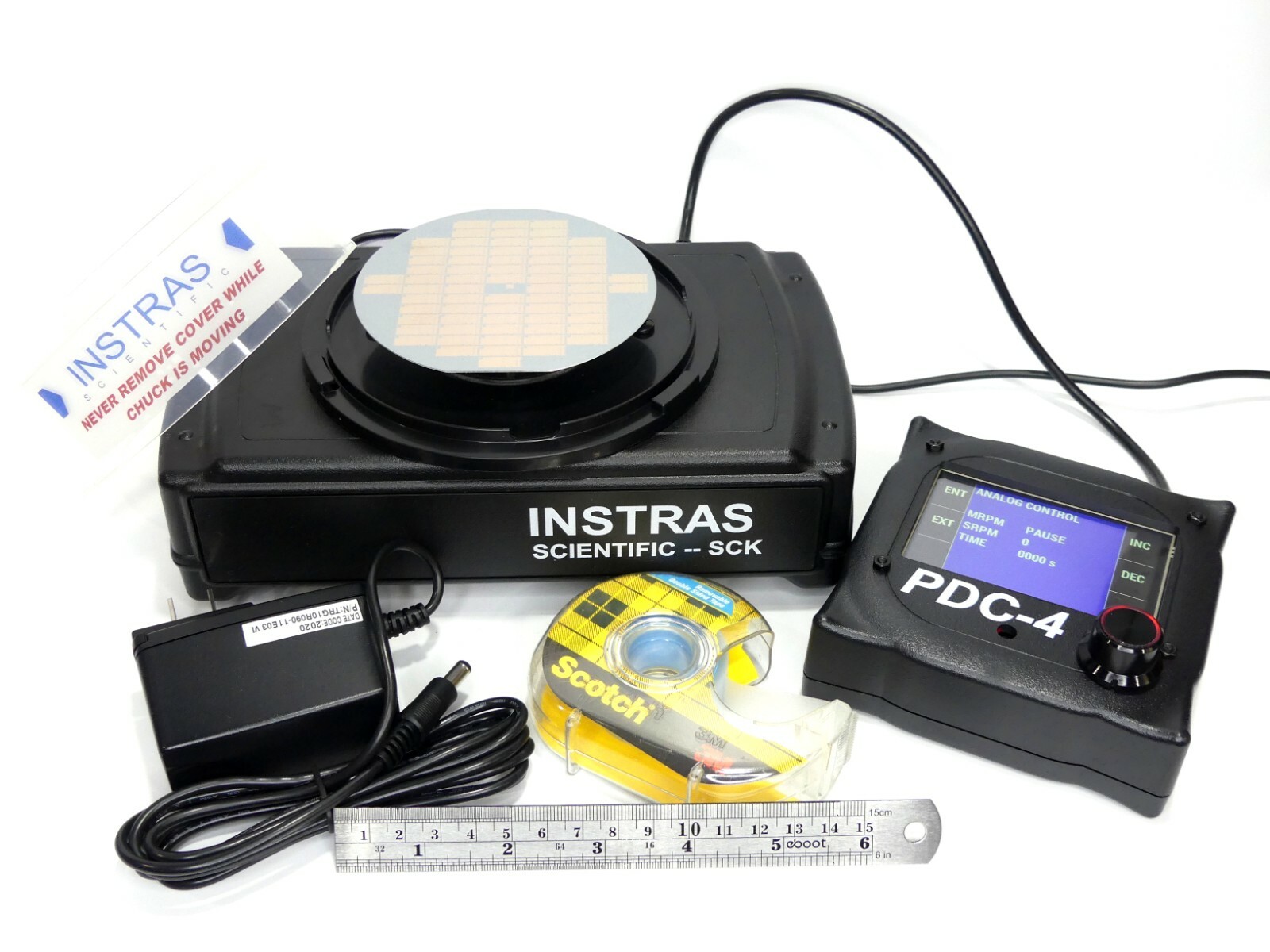

The SCK-300P + Vacuum Chuck Spin Coater Kit contains the following items:

Spin Coater Base -- Motor/2" Diameter Aluminum Vacuum Chuck/CD Cakebox/ABS Enclosure
Arduino-based Closed-Loop Motor Interface Module
3.5" Touch Screen Controller
12V UL Certified DC Universal Power Supply
Roll of Double Sided Tape

* ASuitable Vacuum System is NOT PROVIDED and needs to be supplied by user. Please see User Manual for a more detail description of the unit, including key features and limitations relative to commercial units costing over 10x as much.
